Summary of Contents for Master Chef 85-1208-0

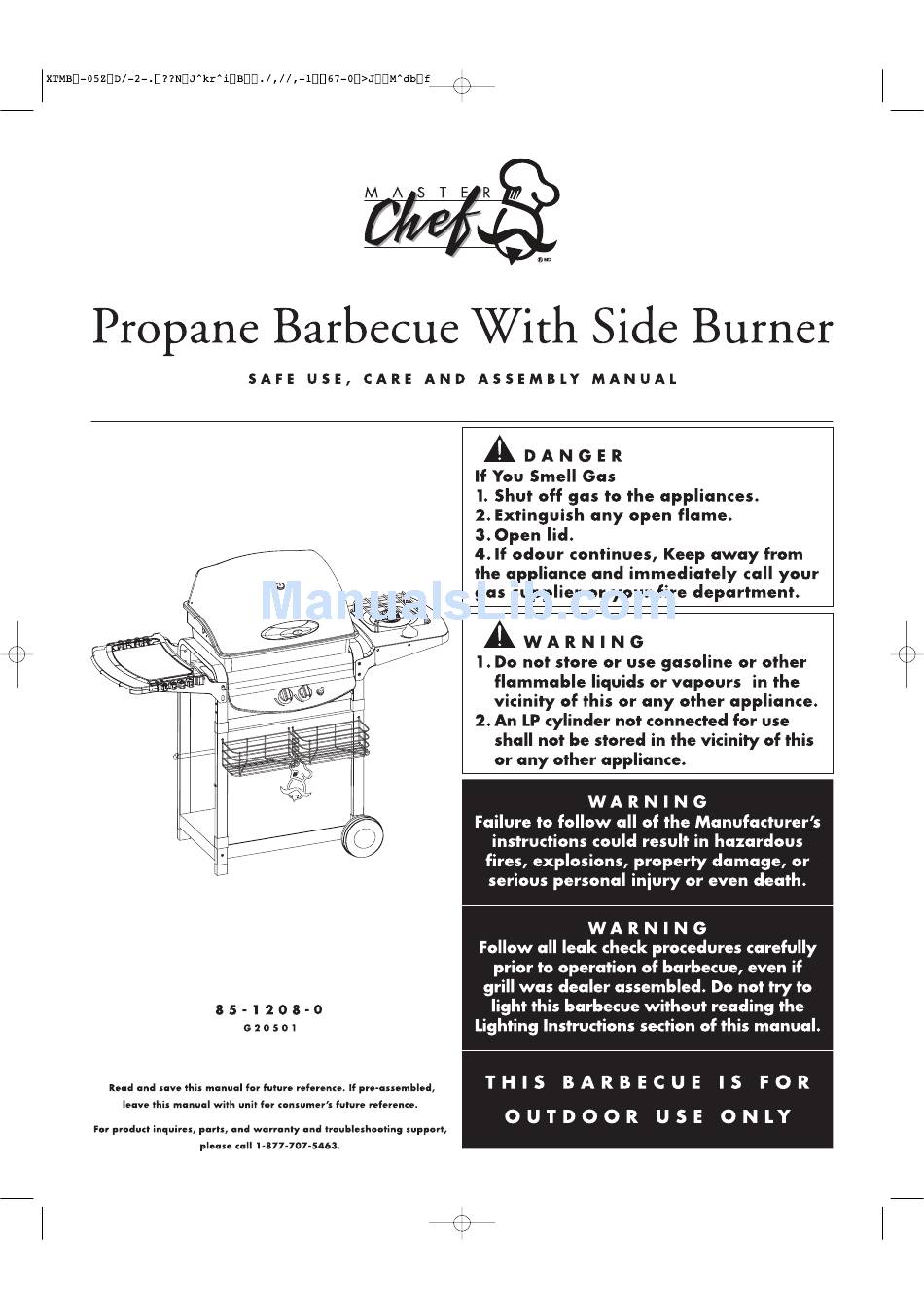

  • Page 1 Limited One Year Warranty...
  • Page 2 W A R R A N T Y Important: Should you have difficulty operating this product, or have a part that has become defective within the stated warranty period, do not return to store. Stores do not stock replacment parts and are unable to help with trou- bleshooting advice.
  • Page 5 [WPE 038] G20501 BBQ Manual E 12/22/04 9:03 AM Page 3 F I L L I N G For safety reasons the LP gas cylinder, if supplied with your barbecue, has been shipped empty. The cylinder must be filled prior to use and must have the air T H E C Y L I N D E R purged.
  • Page 6 [WPE 038] G20501 BBQ Manual E 12/22/04 9:03 AM Page 4 Note: Improperly lighting the barbecue can activate the flow control feature, resulting in lower heat output. If this occurs, the re-flow feature must be reset by turning off all the burner controls and the cylinder valve. Wait at least 30 seconds before slowly turning on the cylinder valve, and then after another 5 seconds turn the burner valve on and light the barbecue.
  • Page 7 [WPE 038] G20501 BBQ Manual E 12/22/04 9:03 AM Page 5 P R I O R T O U S I N G Do not use your barbecue until you have carefully read and fully understand all the information in this manual. Please ensure the following: Your barbecue is properly assembled.
  • Page 8 [WPE 038] G20501 BBQ Manual E 12/22/04 9:03 AM Page 6 Using the Igniter to Light the Burner Raise the lid of the barbecue. • Push in and turn the control knob to “High” position. • Push the igniter button until a clicking noise is heard (a spark is being applied). •...
  • Page 9 [WPE 038] G20501 BBQ Manual E 12/22/04 9:03 AM Page 7 Lighting the Side Burner with a Match Place a lighted match through the hole to within 16 cm (1/2˝) of the side burner. • Push in and turn the burner knob to the “High” position. At this point, •...
  • Page 10 [WPE 038] G20501 BBQ Manual E 12/22/04 9:03 AM Page 8 C L E A N I N G To get many years of service out of your barbecue, perform the following proce- dures at least once a year, especially at the start of a new season. A N D M A I N T E N A N C E Grill: Apply a light coating of cooking oil to the grill to prevent food from sticking.

  • Page 11: Troubleshooting Guide

    [WPE 038] G20501 BBQ Manual E 12/22/04 9:03 AM Page 9 T R O U B L E S H O O T I N G G U I D E Problem Possible Causes Corrective Action Burner will not light Blocked venturi tubes Clean out blockage •...
  • Page 12 [WPE 038] G20501 BBQ Manual E 12/22/04 9:03 AM Page 10 P A R T S L I S T Top lid assembly Cart assembly Firebox assembly t r i Main burner electrode and wire G206-0302-01 Sideburner assembly Tank Exclusion, Wire Frame G205-0034-01 Control panel assembly Sidebuner electrode and wire...

  • Page 14: Hardware Pack List

    [WPE 038] G20501 BBQ Manual E 12/22/04 9:03 AM Page 12 A S S E M B L Y I N S T R U C T I O N S Hardware Pack List Tools needed for assembly are shown below. 1/4”x 2”...
  • Page 15 [WPE 038] G20501 BBQ Manual E 12/22/04 9:03 AM Page 13 Assemble the 2 cart legs (EA & EB) with the front brace (ED) by using 1/4 x 1/2” screws (x4). Insert the wire frame (ES) into left and right cart legs (EA,EB) in this step. 1.
  • Page 16 [WPE 038] G20501 BBQ Manual E 12/22/04 9:03 AM Page 14 Assemble main burner valve (FE) and regulator assembly (FF) onto the control panel (FA) by using No.10 x 3/8” screws (x2) and Ø5 flat washers (x2). Unscrew the two No.
  • Page 17 [WPE 038] G20501 BBQ Manual E 12/22/04 9:03 AM Page 15 Install main burner assembly (BC) by using ST 4.2 x 10 self tapped screws (x2) and Ø5 flat washers (x2). Very Important: Burner tubes must engage valve openings. Make sure the valves are aligned with burner tubes. 1.
  • Page 18 [WPE 038] G20501 BBQ Manual E 12/22/04 9:03 AM Page 16 1. Attach gas tank holder (EN) on the right brace of burner box (under the side burner frame) by using 1/4 x 1/2” screw (x1) and 1/4” nut (x1). 2.
  • Page 19 [WPE 038] G20501 BBQ Manual E 12/22/04 9:03 AM Page 17 1. Assemble the thermometer (AF) onto the top lid by using attached 5/16”- 18 wing nut. 2. Assemble two top lid hinges (AB) at the back side of the top lid assembly (A) with 1/4 x 1/2” screws (x4), 1/4”...
  • Page 20 [WPE 038] G20501 BBQ Manual E 12/22/04 9:03 AM Page 18...
