3.5 Influence overview

This section describes the function in general for the ECL Comfort
210 / 296 / 310 series. The shown displays are typical and not
application related. They might differ from the displays in your
application.
The menu gives an overview of the influences on the desired

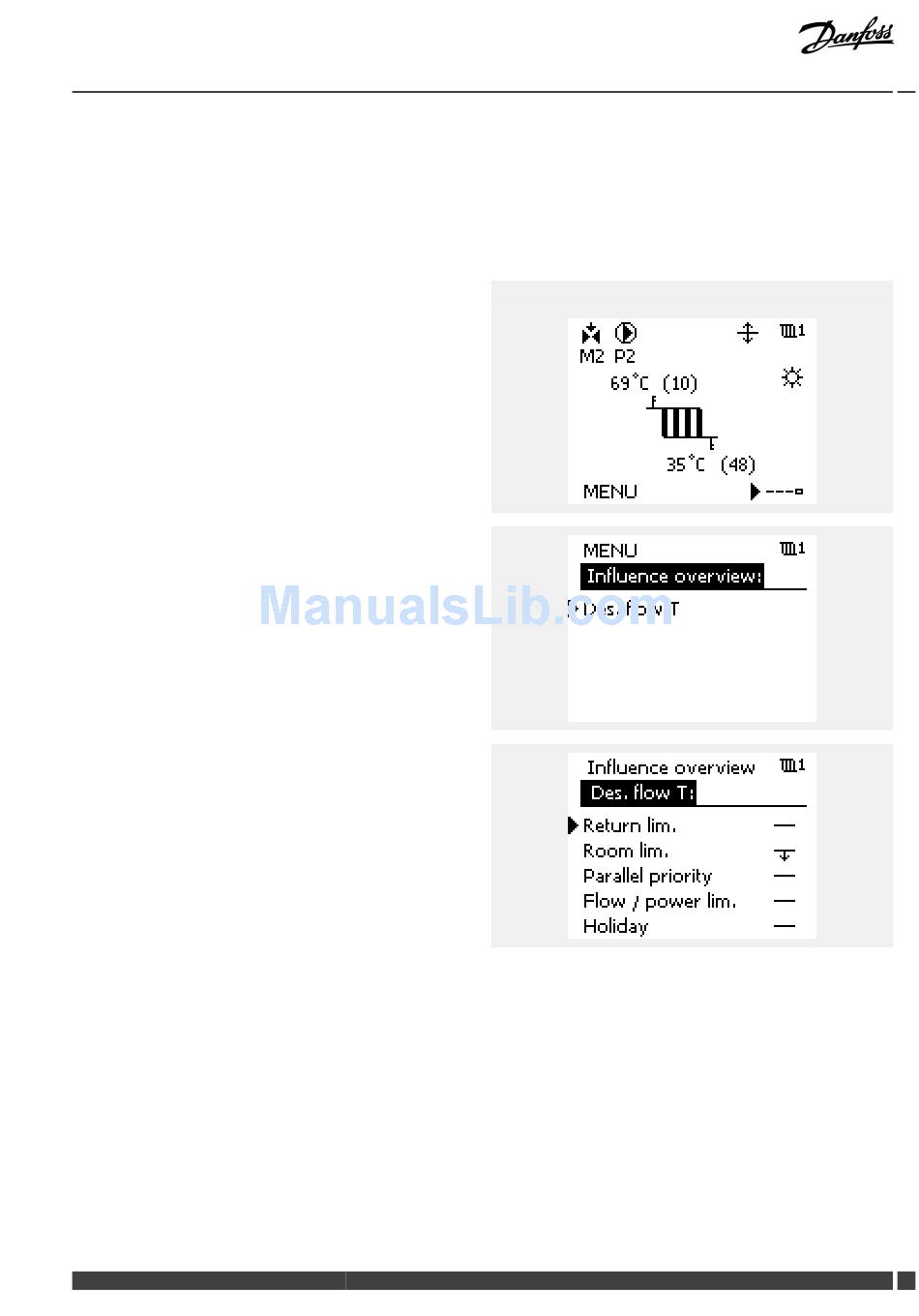

Example of overview display with Influence indication:
flow temperature. It differs from application to application which
parameters are listed. It can be helpful in a service situation to
explain unexpected conditions or temperatures among others.
If the desired flow temperature is influenced (corrected) by one or
more parameters, it is indicated by a small line with arrow-down,
arrow-up or double-arrow:
Arrow-down:
The parameter in question reduces the desired flow temperature.
Arrow-up:
The parameter in question increases the desired flow temperature.
Double-arrow:
The parameter in question creates an override (e.g. Holiday).
Straight line:
No active influence.
In the example, the arrow in the symbol points downwards for
'Room lim.'. This means that the actual room temperature is
higher than the desired room temperature which again results in a
decrease of the desired flow temperature.
