MAINTENANCE AND TROUBLESHOOTING

Inspect and tighten all parts of the exercise cycle reg-
ularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of mild soap. Important: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. See assembly step 4 on page
5 for instructions.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
• Avoid moving your hands whilst using the handgrip
pulse sensor. Excessive movement may interfere
with heart rate readings. Do not hold the metal con-
tacts too tightly; doing so may interfere with heart
rate readings.
• For the most accurate heart rate reading, hold the
metal contacts for about 15 seconds.
• Keep the metal contacts clean. The contacts can be
cleaned with a soft cloth—never use alcohol,
abrasives, or chemicals.
HOW TO LEVEL THE EXERCISE CYCLE
After the exer-
cise cycle has
been moved to
the location
where it will be
used, make sure
that both ends of
front stabiliser
are touching the
floor. If the exer-
Levelling
cise cycle rocks
Foot
slightly during
use, turn one or
both of the levelling feet under the front stabiliser until
the rocking motion is eliminated.

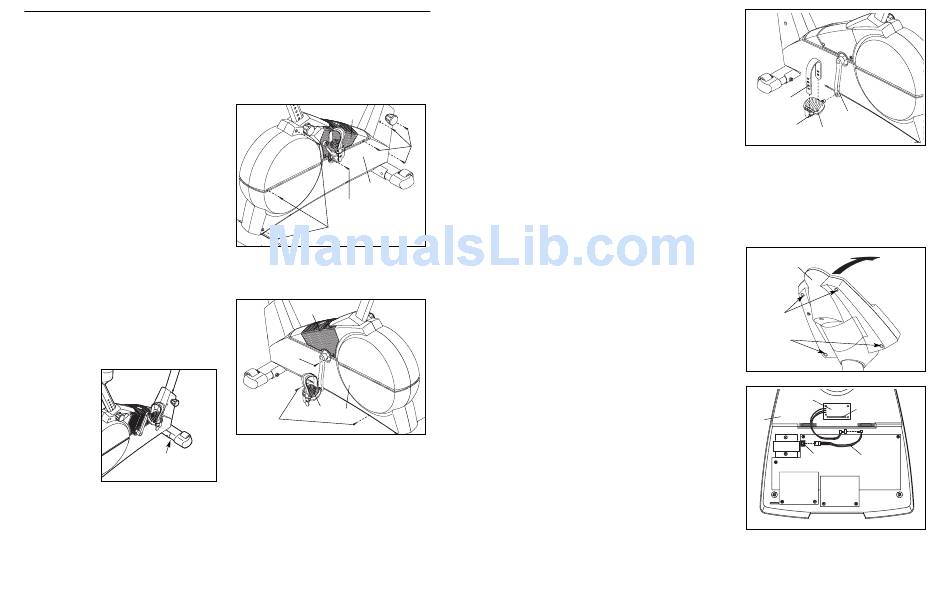

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, the Left Side Shield (17) must be removed.
19
18
71
52
Remove the seven Screws (52) from the Right Side
Shield (18). Next, remove the Screw (71) from the
right side of the Side Shield Cover (19).
19
71
24
17
66
Using an adjustable spanner, turn the Left Pedal (24)
clockwise and remove it. Next, remove the two
Screws (66) from the Left Side Shield (17). Remove
the Screw (71) from the left side of the Side Shield
Cover (19) and lift it off. Gently remove the Left Side
Shield.
14
9. Identify the Left Pedal (24), which is marked with an
"L." Using an adjustable spanner, firmly tighten the
Left Pedal counterclockwise into the Left Crank Arm
(42). Tighten the Right Pedal (not shown) clockwise
into the Right Crank Arm. Important: Tighten both
Pedals as firmly as possible. After using the
exercise cycle for one week, retighten the
Pedals. For best performance, the Pedals must
be kept tightened.
Adjust the Left Pedal Strap (25) to the desired posi-
tion, and press the end of the Pedal Strap onto the
tab on the Left Pedal (24). Adjust the Right Pedal
Strap (not shown) in the same way.
52
10. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
INSTALLING THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR
If you purchase the optional chest pulse sensor (refer to page 13), follow the steps below to install the receiver
and the jumper wire included with the chest pulse sensor.
1. Remove the indicated short screws and long screws
from the back of the Console (16). Lift off the front of
the Console.
2. Plug the jumper wire (A) into the indicated jack on the
Console (16). Connect the other end of the jumper wire
to the wire on the receiver (B). Note: Discard any
other wires included with the chest pulse sensor.
Next, peel the paper off the adhesive pad on the back
of the receiver (B). Orient the receiver as shown, and
press it onto the Console (16) in the indicated location.
Refer to step 1 above. Reattach the front of the
Console (16) with the short screws and the long
screws. Make sure that no wires are pinched.
9
25
42
Tab
24
1
16
Lift
Here
Short
Screws
Long
Screws
2
B
Cylinder
16
A
Jack
