PARTS LIST—Model No. PFEVEX23021
Key No. Qty.
Description
1
1
Frame
2
1
Front Stabiliser
3
1
Rear Stabiliser
4
2
Rear Endcap
5
1
Seat Post
6
1
Seat Bracket
7
2
Handlebar Endcap
8
2
Foam Grip
9
1
Seat Adjustment Knob
10
5
M8 Nylon Locknut
11
1
M6 x 38mm Screw
12
1
Seat
13
1
Upright
14
1
Upright Bushing
15
1
Handlebar/Handgrip Pulse Sensor
16
1
Console
17
1
Left Side Shield
18
1
Right Side Shield
19
1
Side Shield Cover
20
1
Seat Upright Bushing
21
1
Crank Assembly
22
1
Reed Switch Clamp
23
2
M4 x 5mm Screw
24
1
Left Pedal
25
1
Left Pedal Strap
26
1
Right Pedal
27
1
Right Pedal Strap
28
2
Adjustment Knob
29
2
M6 x 72mm Button Screw
30
2
Wheel
31
1
Left Front Endcap
32
1
Right Front Endcap
33
1
M6 x 25.4mm Button Screw
34
1
Adjustment Motor
35
1
Lower Wire Harness
36
1
Upper Wire Harness
37
1
Flywheel
38
1
Magnet
39
1
Flywheel Axle
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
Key No. Qty.
Description
40
2
Flywheel Bearing
41
1
"C" Magnet
42
1
Left Crank Arm
43
1
Reed Switch/Wire
44
2
Crank Bearing
45
2
M5 Nut
46
1
Adjustment Cable
47
1
Return Spring
48
5
M6 Nylon Locknut
49
1
"C" Magnet Bracket
50
3
M10 Black Split Washer
51
3
M10 x 27mm Button Screw
52
7
M4 x 25mm Screw
53
2
Eyebolt
54
1
Pulley
55
1
M6 x 16mm Button Bolt
56
2
Flange Screw
57
1
Right Crank Arm
58
2
M6 x 8mm Screw
59
1
Belt
60
4
M6 Nut
61
2
M8 Nylon Jam Nut
62
2
Flywheel Washer
63
4
M10 Black Nylon Locknut
64
4
Motor Washer
65
4
M10 x 112mm Carriage Bolt
66
11
M4 x 16mm Screw
67
2
Levelling Foot
68
1
"U" Bracket
69
4
M6 x 18mm Bolt
70
4
M8 Split Washer
71
2
M4 x 12mm Round Head Screw
72
1
M6 Washer
73
1
Snap Ring
74
1
Thrust Washer
75
1
Spacer
#
1
User's Manual
#
2
Allen Wrench
18
BEFORE YOU BEGIN
R0703A
Congratulations for selecting the new PROFORM
985 C exercise cycle. Cycling is one of the most
effective exercises for increasing cardiovascular fit-
ness, building endurance, and toning the entire body.
The PROFORM
features to let you enjoy this healthful exercise in the
convenience and privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
Bookrack
Console
Handgrip Pulse Sensor
Seat
Adjustment Knob
Adjustment Knob
REAR
*No water bottle
is included
after reading this manual, please call our Customer
®
Service Department at 08457 089 009. To help us
assist you, please note the product model number and
serial number before calling. The model number is
®
985 C offers an impressive array of
PFEVEX23021. The serial number can be found on a
decal attached to the exercise cycle (see the front
cover of this manual).

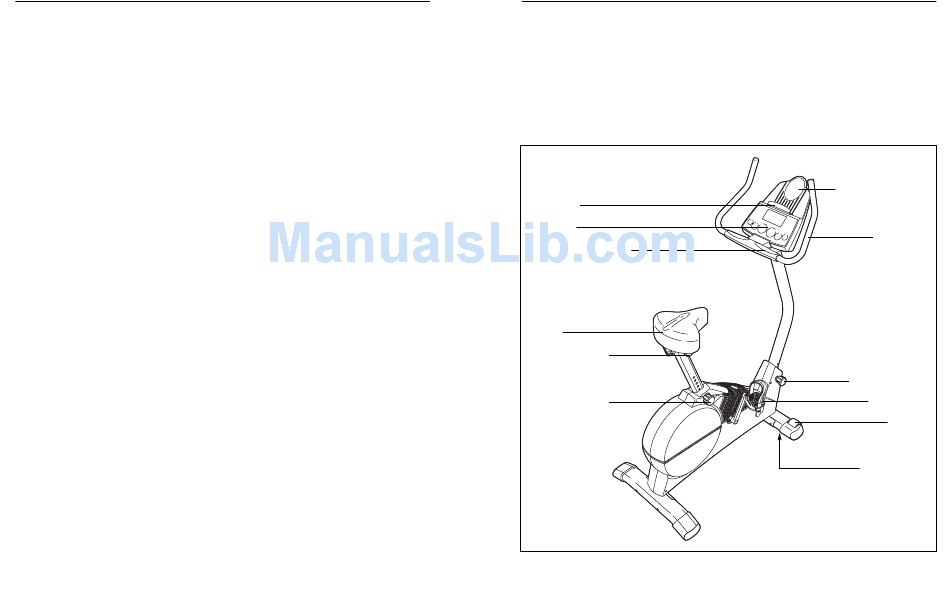

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
RIGHT SIDE
3
Water Bottle Holder*
Handlebar
FRONT
Adjustment Knob
Pedal/Strap
Wheel
Levelling Foot
