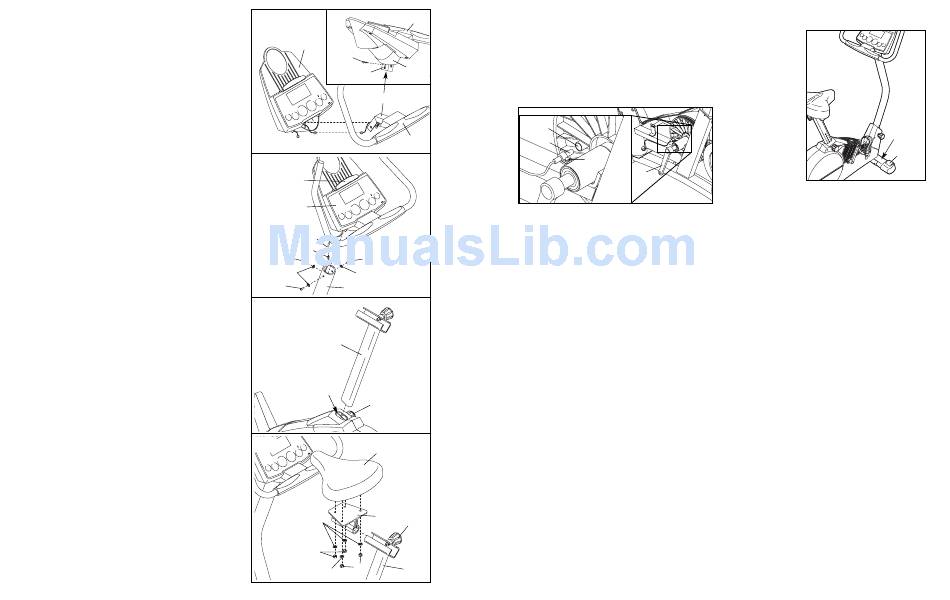

5. Connect the wire harness on the Handgrip Pulse
Sensor (15) to the indicated wire harness on the
Console (16). Insert both wire harnesses into the open-
ing in the bottom of the Console. Then, insert the metal
tube on the Handgrip Pulse Sensor into the opening in
the bottom of the console. Be careful not to pinch
the wire harnesses.
See the inset drawing. Tighten an M4 x 16mm Screw
(66) into the indicated bracket on the Console (16) and
into the metal tube on the Handgrip Pulse Sensor (15).
6. Whilst another person holds the Console (16) in the
position shown, connect the wire harness on the
Console to the Upper Wire Harness (36). Insert the
excess wire harness into the Upright (13).
Attach the Console (16) to the Upright (13) with three
M10 x 27mm Button Screws (51) and three M10 Black
Split Washers (50). Be careful to avoid pinching the
wire harnesses.
Snap the bookrack onto the Console (16) where shown.
7. Turn the indicated Adjustment Knob (28) counterclock-
wise two or three turns to loosen it. Next, pull the Knob,
insert the Seat Post (5) into the Frame (1), and then
release the Knob. Move the Seat Post up and down
slightly until the pin on the Knob snaps into one of
the holes in the Seat Post. Then, turn the Knob clock-
wise until it is tight.
8. Attach the Seat (12) to the Seat Bracket (6) with four
M8 Nylon Locknuts (10) and four M8 Split Washers
(70). Note: The Nylon Locknuts and the Split Washers
may be pre-attached to the underside of the Seat.
Turn the Seat Adjustment Knob (9) counterclockwise
two or three turns to loosen it. Next, pull the Knob, slide
the Seat Bracket (6) into the top of the Seat Post (5),
and then release the Knob. Move the Seat Bracket
forward and backward slightly until the pin on the
Knob snaps into one of the holes in the Seat
Bracket. Then, turn the Knob clockwise until it is tight.
5
16
66
Bracket
Metal Tube
6
Bookrack
16
Wire Harness
36
Avoid
51
51
pinching
the wire
50
50
harnesses.
51
13
7
5
1
28
8
12
6
70
10
10
70
6
Next, locate the Reed Switch (43). Turn the Left
15
Crank Arm (42) until the Magnet (38) is aligned with
the Reed Switch. Loosen but do not remove the
Screw (66). Slide the Reed Switch slightly closer to or
away from the Magnet. Retighten the Screw. Turn the
Crank for a moment. Repeat until the console dis-
16
plays correct feedback. When the Reed Switch is cor-
rectly adjusted, reattach the Left Side Shield, the Side
Shield Cover, and the Left Pedal.
38
15 43
9
5
HOW TO MOVE THE EXERCISE CYCLE
To move the
exercise cycle,
first stand in
front of the exer-
cise cycle, hold
the handlebars,
and place one
foot on the front
stabiliser. Pull
the handlebars
until the exer-
cise cycle can
be moved on
the front wheels.
66
Carefully move
42
the exercise
cycle to the
desired location and then lower it.
15
Place
Foot
Here
Wheel
