UPC-V312-D525 Panel PC
IEI Technology Corp.
MODEL:
UPC-V312-D525
Panel PC with Touch Screen and Intel® Atom™ CPU,
GbE, Wireless, GPS, RFID, Bluetooth, USB, Audio,
RS-232/422/485, RoHS Compliant, IP 65 Protection
Rev. 1.02 – 31 July, 2012
UPC-V312-D525 Panel PC

User Manual

Page i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UPC-V312-D525 and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology UPC-V312-D525

Summary of Contents for IEI Technology UPC-V312-D525

  • Page 1: User Manual

    UPC-V312-D525 Panel PC UPC-V312-D525 Panel PC IEI Technology Corp. MODEL: UPC-V312-D525 Panel PC with Touch Screen and Intel® Atom™ CPU, GbE, Wireless, GPS, RFID, Bluetooth, USB, Audio, RS-232/422/485, RoHS Compliant, IP 65 Protection User Manual Page i Rev. 1.02 – 31 July, 2012...
  • Page 2 UPC-V312-D525 Panel PC Revision Date Version Changes 31 July, 2012 1.02 Replaced IEI MiniDOM support with mSATA support 8 December, 2011 1.01 Updated Table 1-4: System Specifications Updated Section 2.2: Packing List Updated Section 3.6: Mounting the System 23 September, 2011 1.00...
  • Page 3 UPC-V312-D525 Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 UPC-V312-D525 Panel PC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Table Of Contents

    UPC-V312-D525 Panel PC Table of Contents 1 INTRODUCTION......................1 1.1 O ........................2 VERVIEW 1.2 M ....................3 ODEL ARIATIONS 1.3 F ........................3 EATURES 1.4 E ....................4 XTERNAL VERVIEW 1.4.1 Front Panel ......................4 1.4.1.1 LED Indicators.................... 5 1.4.2 Bottom Panel......................
  • Page 6 UPC-V312-D525 Panel PC 3.7.4 Audio Connectors..................... 35 3.7.5 CAN-bus Terminal Block.................. 35 3.7.6 LAN Connector ....................35 3.7.7 Power Input 1, 3-pin Terminal Block............... 37 3.7.8 Power Input 2, DIN Connector................ 37 3.7.9 RJ-45 RS-232 Serial Port................. 37 3.7.10 RS-422/485 Serial Port .................. 39 3.7.11 USB Connectors .....................
  • Page 7 UPC-V312-D525 Panel PC 4.3.7 Serial Port Console Redirection ..............67 4.3.7.1 Console Redirection Settings..............68 4.3.8 IEI Feature ....................... 70 4.4 C ........................70 HIPSET 4.4.1 Host Bridge Configuration ................71 4.4.2 South Bridge Configuration................72 4.4.3 Intel IGD SWSCI OpRegion................74 4.5 B...
  • Page 8 UPC-V312-D525 Panel PC B.4 S ................131 ETUP ROCEDURE FOR INUX B.5 R ................135 ECOVERY UNCTIONS B.5.1 Factory Restore ..................... 136 B.5.2 Backup System ....................137 B.5.3 Restore Your Last Backup................138 B.5.4 Manual......................139 B.6 R LAN ........140...
  • Page 9 UPC-V312-D525 Panel PC List of Figures Figure 1-1: UPC-V312-D525 Panel PC...................2 Figure 1-2: Front View ........................5 Figure 1-3: LED Indicators......................5 Figure 1-4: Bottom View ........................8 Figure 1-5: Left Side View......................8 Figure 1-6: Left Side View......................9 Figure 1-7: Rear View ........................9 Figure 1-8: Function Key Locations ...................10...
  • Page 10 UPC-V312-D525 Panel PC Figure 3-23: RS-422/485 Cable ....................39 Figure 3-38: RS-422/485 Serial Port (DB-9) ................40 Figure 3-24: USB Device Connection ..................41 Figure 3-25: VGA Connector .......................42 Figure 3-26: VGA Connector .......................43 Figure 3-27: Power Connectors ....................44 Figure 3-28: ACC On: AT Mode ....................45 Figure 3-29: ACC On: ATX Mode....................45...
  • Page 11 UPC-V312-D525 Panel PC Figure 5-21: Touch Screen Driver Welcome Screen ..............94 Figure 5-22: Touch Screen Driver License Agreement.............95 Figure 5-23: Touch Screen Driver Choose Install Location .............95 Figure 5-24: Touch Screen Driver Installation Screen..............96 Figure 5-25: Touch Screen Driver Update Complete ..............96 Figure 5-26: PenMount Monitor Icon ..................97...
  • Page 12 UPC-V312-D525 Panel PC Figure B-17: Compress Image....................125 Figure B-18: Image Creation Confirmation ................126 Figure B-19: Image Creation Complete ................... 126 Figure B-20: Image Creation Complete ................... 126 Figure B-21: Press Any Key to Continue ................127 Figure B-22: Auto Recovery Utility ..................128 Figure B-23: Launching the Recovery Tool ................
  • Page 13 UPC-V312-D525 Panel PC List of Tables Table 1-1: Model Variations ......................3 Table 1-2: LED Indicators ......................6 Table 1-3: Function Keys ......................10 Table 1-4: System Specifications....................14 Table 3-1: LAN Pinouts ........................35 Table 3-2: RJ-45 Ethernet Connector LEDs ................36 Table 3-3: RJ-45 RS-232 Serial Port Pinouts ................38 Table 3-4: RS-422/485 Serial Port Pinouts .................39...

  • Page 15: Introduction

    UPC-V312-D525 Panel PC Chapter Introduction Page 1...

  • Page 16: Overview

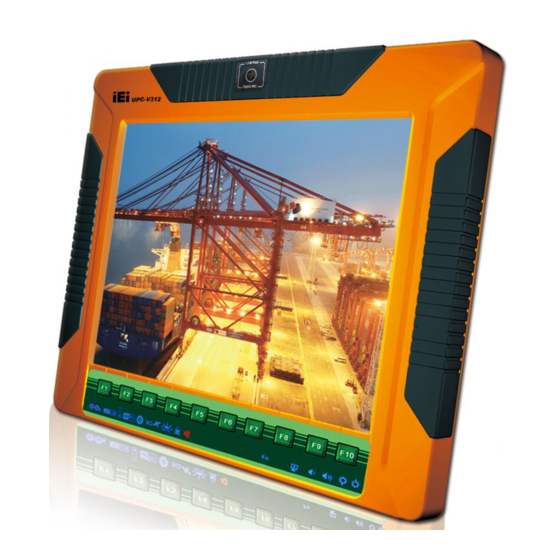

    1.1 Overview Figure 1-1: UPC-V312-D525 Panel PC The fanless UPC-V312-D525 is Intel® Atom™ D525 powered panel PC with a rich variety of functions and peripherals. The UPC-V312-D525 panel PC is designed for easy and simplified integration into various vehicle applications.

  • Page 17: Model Variations

    UPC-V312-D525/R-MF/1G-R10 Intel® Atom™ D525 Mifare card reader Table 1-1: Model Variations 1.3 Features All the UPC-V312-D525 models feature the following: 12.1'' 600nits 1024 x 768 LCD with LED backlight Fanless system with 1.8GHz Intel® Atom™ D525 dual-core processor Redundant dual DC input power Dual-band 2.4/5GHz Wi-Fi 802.11 a/b/g/n...

  • Page 18: External Overview

    The bottom panel provides access to external interface connectors. 1.4.1 Front Panel The front side of the UPC-V312-D525 is a flat panel TFT LCD screen surrounded by an aluminum frame. At the top of the front panel features one 1.3 megapixel webcam that supports auto-focus (AF), auto-exposure (AE) and auto white balance (AWB).

  • Page 19: Led Indicators

    UPC-V312-D525 Panel PC Figure 1-2: Front View 1.4.1.1 LED Indicators The LED indicators on the front panel of the UPC-V312-D525 are shown below. Figure 1-3: LED Indicators The descriptions of each LED indicator are listed below. LED Indicator Description Power 1...

  • Page 20: Table 1-2: Led Indicators

    UPC-V312-D525 Panel PC Power 2 Pulsing Orange: Power 2 is the main power and is in standby mode Solid Orange: Power 2 is the second power and is in standby mode Solid Blue: Power 2 is providing power to the system AT/ATX Power Mode Shows the power mode status.

  • Page 21: Bottom Panel

    UPC-V312-D525 Panel PC CAUTION: If the CPU temperature alert LED shows in red, the user must lower the environment temperature or close some running applications to cool down the CPU. 1.4.2 Bottom Panel The following is a list of the bottom panel peripheral device connectors on the UPC-V312-D525.

  • Page 22: Left Side Panel

    UPC-V312-D525 Panel PC Figure 1-4: Bottom View 1.4.3 Left Side Panel The left side panel of the panel PC provides access to the CF card slot. ( F igure 1-5). Figure 1-5: Left Side View Page 8...

  • Page 23: Right Side Panel

    UPC-V312-D525 Panel PC 1.4.4 Right Side Panel The right side panel of the panel PC provides access to a USB 2.0 port ( F igure 1-6). Enable or disable this USB port by pressing the function keys: Figure 1-6: Left Side View 1.4.5 Rear Panel...

  • Page 24: Frame (Function Keys)

    UPC-V312-D525 Panel PC 1.4.6 Frame (Function Keys) An aluminum frame surrounds the TFT LCD screen. The aluminum frame of the UPC-V312-D525 contains several function keys that control audio volume, LCD brightness and some other system components. Figure 1-8: Function Key Locations The following table describes the function of these function keys.

  • Page 25: Dimensions

    UPC-V312-D525 Panel PC 1.5 Dimensions The dimensions of the UPC-V312-D525 are shown in F igure 1-9 and listed below. Figure 1-9: UPC-V312-D525 Dimensions (mm) Page 11...

  • Page 26: Specifications

    UPC-V312-D525 Panel PC 1.6 Specifications The technical specifications for the UPC-V312-D525 system are listed in T able 1-4. Specification UPC-V312-D525 LCD Size 12.1” Max. Resolution 1024 x 768 (XGA) Brightness 600 cd/m Contrast Ratio 700:1 LCD Color 16.2 M Pixel Pitch (mm) 0.240 (H) x 0.240 (V)
  • Page 27 UPC-V312-D525 Panel PC Optional Bluetooth module Optional GPS receiver Optional 3.75G HSUPA USB module Audio 2 x Audio speakers 1 x Digital microphone 1 x Line-out connector 1 x Mic-in connector Expansion 1 x PCIe Mini interface (installed with wireless LAN 802.11...

  • Page 28: Table 1-4: System Specifications

    UPC-V312-D525 Panel PC Input: 100 VAC ~ 240 VAC @ 50 Hz / 60 Hz Output: 19 VDC Power Requirement Redundant dual DC input Terminal block: 9 (+/-3) V ~ 36 V DC jack: 10.5 (+/-0.3) V ~ 36 V Max.

  • Page 29: Unpacking

    UPC-V312-D525 Panel PC Chapter Unpacking Page 15...

  • Page 30: Unpacking

    UPC-V312-D525 Panel PC 2.1 Unpacking To unpack the panel PC, follow the steps below: WARNING! The front side LCD screen has a protective plastic cover stuck to the screen. Only remove the plastic cover after the panel PC has been properly installed.

  • Page 31: Packing List

    UPC-V312-D525 Panel PC 2.2 Packing List The UPC-V312-D525 panel PC is shipped with the following components: Quantity Item Image UPC-V312-D525 panel PC Power adapter (P/N: 63040-010065-010-RS) Power cord (P/N: 32702-000401-100-RS) Power transfer cord (P/N: 32000-089400-RS) RJ-45 to DB-9 COM port cable...
  • Page 32 UPC-V312-D525 Panel PC VESA mount screw (M8) (P/N: 44325-080081-RS) VESA mount screw (M4*8) (P/N: 44005-040082-RS) Mounting bracket (side panels) (P/N: 41003-0382C2-00-RS) Screwdriver (P/N: 45019-001004-00) One Key Recover CD (P/N: IEI-7B000-000478-RS) User manual CD and driver CD If any of these items are missing or damaged, contact the distributor or sales representative immediately.

  • Page 33: Installation

    UPC-V312-D525 Panel PC Chapter Installation Page 19...

  • Page 34: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the UPC-V312-D525. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the UPC-V312-D525 is accessed internally, or any other electrical component is handled, the following anti-static precautions are strictly adhered Wear an anti-static wristband: - Wearing a simple anti-static wristband can help to prevent ESD from damaging the board.

  • Page 35: Preinstalled Components

    3.75G / HSUPA USB module mSATA CAUTION: The UPC-V312-D525 is an IP 65 compliant panel PC. A user cannot open the rear cover and install any components inside the UPC-V312-D525. Doing so may compromise the system’s waterproof performance. To install components in the system, please contact the system vendor, reseller or an IEI sales person directly.

  • Page 36: Cf Card Installation

    UPC-V312-D525 Panel PC 3.4 CF Card Installation The UPC-V312-D525 has one CF Type II slot. To install the CF card, follow the instructions below. Locate the CF card socket. The CF card socket is located on the left side panel Step 1: of the UPC-V312-D525.

  • Page 37: Internal Usb Devices Installation

    Step 4: Step 0: 3.5 Internal USB Devices Installation The UPC-V312-D525 has one internal USB 2.0 port inside the chassis. This USB port is reserved for the 3G USB dongle. To install the 3G USB dongle, follow the instructions below.

  • Page 38: Figure 3-4: Pry Along The Internal Usb Port Cover

    UPC-V312-D525 Panel PC Pry the cover up from the upper right corner using a flat-head screwdriver. Step 2: Continue to pry gently along the gap of the cover until the cover can be removed. Figure 3-4: Pry along the Internal USB Port Cover Remove the internal USB port cover and locate the internal USB port.

  • Page 39: Mounting The System

    100 mm/75 mm interface pad. M8 and M4 mounting screws can both be used for VESA mount. The VESA mount retention screw holes of the UPC-V312-D525 are shown in Figure 3-7. Page 25...

  • Page 40: Figure 3-7: Vesa Mount Retention Screw Holes

    Figure 3-7: VESA Mount Retention Screw Holes To enhance the stability, the user can use the mounting brackets, which are shipped with the UPC-V312-D525 and can be attached on both side panels. An additional mounting device is required for the mounting brackets.
  • Page 41 Wall mounting The mounting methods are described below. 3.6.1 Arm Mounting The UPC-V312-D525 can be installed on any arm that supports the standard VESA mounting interface. An example arm is shown below. Figure 3-9: VESA Compliant Arm To install the UPC-V312-D525 on the arm, follow the directions below.
  • Page 42 Figure 3-10: VESA Compliant Stand To install the UPC-V312-D525 on the stand, follow the directions below. Locate the screw holes on the rear of the UPC-V312-D525. This is where the Step 1: stand bracket will be attached. The stand mount retention screw holes are shown in Figure 3-7.
  • Page 43 UPC-V312-D525 Panel PC Align the wall-mounting bracket screw holes with the pilot holes. Step 4: Secure the mounting-bracket to the wall by inserting the retention screws into Step 5: the four pilot holes and tightening them (Figure 3-11). Figure 3-11: Wall-mounting Bracket...
  • Page 44 UPC-V312-D525 Panel PC Figure 3-12: Chassis Support Screws NOTE: In the diagram below the bracket is already installed on the wall. Secure the panel PC by fastening the retention screw of the wall-mounting Step 9: bracket. (Figure 3-13). Page 30...

  • Page 45: Bottom Panel Connectors

    Figure 3-13: Secure the Panel PC 3.7 Bottom Panel Connectors The bottom panel of the UPC-V312-D525 contains I/O connectors, switches and a reset button. These connectors are protected by an I/O cover. Detailed descriptions of the connectors and cabling can be found in the subsections below.

  • Page 46: Figure 3-8: I/O Cover Retention Screws

    Figure 3-14: I/O Cover Retention Screws Connect the cable from the external peripheral device to the corresponding Step 2: connector of the UPC-V312-D525 (Figure 3-15). Figure 3-15: External Peripheral Device Connection Take out a rubber gasket from the I/O cover (Figure 3-16).

  • Page 47: Figure 3-11: Rubber Gasket And Cable

    UPC-V312-D525 Panel PC Remove some rubber rings from the gasket to make the gasket fit perfectly to Step 4: the size of the cable (Figure 3-17). Figure 3-17: Rubber Gasket and Cable Repeat steps to other connected cables. Step 5: Install the I/O cover and make sure each rubber gasket snaps into place tightly.

  • Page 48: Acc Mode Selection

    Figure 3-20: ACC Mode Switch 3.7.3 AT/ATX Power Mode Selection The UPC-V312-D525 supports both AT and ATX power modes. The setting can be made through the AT/ATX power mode switch on the bottom panel as shown below. Figure 3-21: AT/ATX Power Mode Switch...

  • Page 49: Audio Connectors

    UPC-V312-D525 Panel PC 3.7.4 Audio Connectors The audio jacks connect to external audio devices. Microphone (Pink): Connects a microphone. Line Out port (Green): Connects to a headphone or a speaker. With multi-channel configurations, this port can also connect to front speakers.

  • Page 50: Figure 3-18: Lan Connection

    100 Mb/s orange: 1000 Mb/s Table 3-2: RJ-45 Ethernet Connector LEDs To connect the UPC-V312-D525 to a network through the RJ-45 LAN connector, follow the steps below. Locate the RJ-45 connector. The location of the RJ-45 connectors is shown in Step 1: Figure 1-4.

  • Page 51: Power Input 1, 3-Pin Terminal Block

    UPC-V312-D525 Panel PC 3.7.7 Power Input 1, 3-pin Terminal Block CN Label: POWER 1 3-pin terminal block CN Type: See Figure 1-4 CN Location: See Figure 3-25 CN Pinouts: Connect the leads of a 9V~36V DC power supply into the terminal block. Make sure that the power and ground wires are attached to the correct sockets of the connector.

  • Page 52: Figure 3-20: Rj-45 Rs-232 Serial Port

    Figure 1-4. Insert the RJ-45 connector. Insert the RJ-45 connector on the RJ-45 to DB-9 Step 2: COM port cable to the RJ-45 RS-232 connector on the UPC-V312-D525. See Figure 3-27. Figure 3-27: RJ-45 RS-232 Serial Device Connection Insert the serial connector.

  • Page 53: Rs-422/485 Serial Port

    UPC-V312-D525 Panel PC Secure the connector. Secure the serial device connector to the external Step 4: interface by tightening the two retention screws on either side of the connector. 3.7.10 RS-422/485 Serial Port CN Label: RS 422/485 4-pin connector CN Type:...

  • Page 54: Usb Connectors

    UPC-V312-D525 Panel PC Insert the serial connector. Insert the DB-9 connector of a serial device into Step 3: the DB-9 connector on the RS-422/485 cable. Secure the connector. Secure the serial device connector to the external Step 4: interface by tightening the two retention screws on either side of the connector.

  • Page 55: Figure 3-24: Usb Device Connection

    UPC-V312-D525 Panel PC The USB ports are for attaching USB peripheral devices to the system. The pinouts of the USB port is shown below. Description Description DATA- DATA- DATA+ DATA+ GROUND GROUND Table 3-6: USB Port Pinouts To install a USB device, follow the steps below.

  • Page 56: Vga Connector

    HSYNC VSYNC DDCCLK Table 3-7: VGA Connector Pinouts To connect the UPC-V312-D525 to a second display, follow the steps below, Locate the female DB-15 connector. The location of the female DB-15 Step 1: connector is shown in Figure 1-4. Page 42...

  • Page 57: Figure 3-26: Vga Connector

    Insert the VGA connector. insert the male connector from the VGA screen into the female connector on the UPC-V312-D525. See Figure 3-33. Figure 3-33: VGA Connector CAUTION: It is suggested that not to open the rear cover and replace any components.

  • Page 58: Redundant Power

    UPC-V312-D525 Panel PC 3.8 Redundant Power The UPC-V312-D525 is a system that supports redundant power. The redundant power input increases the reliability of the system while preventing data loss and system corruption from sudden power failure. The system can instantly and uninterruptedly switch to the second power input when the main power is unavailable or in low voltage capacity.

  • Page 59: Acc On

    In ACC On mode, the Power 1 connector must connect to the ACC on signal to be able to control system power. The ACC On mode is designed for vehicle applications. When the UPC-V312-D525 is in ACC On mode, the main power input is the Power 1 connector and the backup power is from the Power 2 connector.

  • Page 60: Switch To Backup Power

    UPC-V312-D525 Panel PC 3.8.1.2 Switch to Backup Power During operation, system power will switch from Power 1 to Power 2 automatically when the following situations occur: Power 1 < 9V and Power 2 > 10.5V Power 1 > 9V, but the ACC ON signal jump from high to low Power 1 is unplugged and Power 2 >...

  • Page 61: Acc Off

    Press these two buttons for six seconds to turn off the system. 3.8.2 ACC OFF When the UPC-V312-D525 is in ACC Off mode, the main power input is the Power 2 connector and the backup power is from the Power 1 connector. 3.8.2.1 Boot-up When both power connectors are connected to the power source with over 9 V, the two power LEDs on the front panel turn on.

  • Page 62: Switch To Backup Power

    UPC-V312-D525 Panel PC Figure 3-39: ACC Off: AT Mode Figure 3-40: ACC Off: ATX Mode 3.8.2.2 Switch to Backup Power During operation, system power switches from Power 2 to Power 1 automatically when the following situations occur: Power 2 < 10.5V and Power 1 > 9V Power 2 is unplugged and Power 1 >...

  • Page 63: Shutdown

    UPC-V312-D525 Panel PC 3.8.2.3 Shutdown The system will shutdown in the following situations: Power 2 < 10.5V and Power 1 < 9V Press buttons for 6 seconds The following flow diagram shows the system shutdown process and the LED statuses.

  • Page 64: Remote Control

    Figure 3-43: Remote Control System On/Off: Press this button to turn the UPC-V312-D525 on or off. LCD On/Off. Press this button to turn the LCD monitor on or off. Auto-Dimming. Press this button to turn the auto-dimming function on or off.

  • Page 65: Ami Bios Setup

    UPC-V312-D525 Panel PC Chapter AMI BIOS Setup Page 51...

  • Page 66: Introduction

    UPC-V312-D525 Panel PC 4.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. 4.1.1 Starting Setup The UEFI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.

  • Page 67: Getting Help

    UPC-V312-D525 Panel PC Function Main Menu – Quit and do not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu General help, only for Status Page Setup Menu and Option...

  • Page 68: Main

    UPC-V312-D525 Panel PC 4.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.

  • Page 69: Advanced

    UPC-V312-D525 Panel PC System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. 4.3 Advanced Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices through the following sub-menus:...
  • Page 70 UPC-V312-D525 Panel PC Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced ACPI Sleep State [S1 (CPU Stop Clock)] Select the highest ACPI sleep state the system will enter, when the SUSPEND button is pressed. ---------------------- : Select Screen ↑...

  • Page 71: Cpu Configuration

    UPC-V312-D525 Panel PC 4.3.2 CPU Configuration Use the CPU Configuration menu (BIOS Menu 4) to view detailed CPU specifications and configure the CPU. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced CPU Configuration Processor Type Intel(R) Atom(TM) CPU D525 @ 1.80GHz...

  • Page 72: Ide Configuration

    UPC-V312-D525 Panel PC Use the Hyper Threading function to enable or disable the CPU hyper threading function. Disables the use of hyper threading technology Disabled Enables the use of hyper threading technology Enabled EFAULT 4.3.3 IDE Configuration Use the IDE Configuration menu (BIOS Menu 5) to change and/or set the configuration of the IDE or SATA devices installed in the system.

  • Page 73: Usb Configuration

    UPC-V312-D525 Panel PC Configures the on-board ATA/IDE controller to be in Enhanced Enhanced mode. In this mode, IDE channels and SATA channels are separated. This mode supports up to 6 storage devices. Some legacy OS do not support this mode.

  • Page 74: Super Io Configuration

    UPC-V312-D525 Panel PC Legacy USB Support [Enabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support. Normally if this option is not enabled, any attached USB mouse or USB keyboard does not become available until a USB compatible operating system is fully booted with all USB drivers loaded.

  • Page 75: Serial Port N Configuration

    UPC-V312-D525 Panel PC 4.3.5.1 Serial Port n Configuration Use the Serial Port n Configuration menu (BIOS Menu 8) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced Serial Port 1 Configuration Enable or Disable Serial...
  • Page 76 UPC-V312-D525 Panel PC Serial Port I/O port address is 3F8h and the interrupt IO=3F8h; address is IRQ4 IRQ=4 Serial Port I/O port address is 3F8h and the interrupt IO=3F8h; address is IRQ3, 4 IRQ=3, 4 Serial Port I/O port address is 2F8h and the interrupt IO=2F8h;...
  • Page 77 UPC-V312-D525 Panel PC 4.3.5.1.3 Serial Port 3 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. Disable the serial port Disabled Enable the serial port Enabled EFAULT Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.
  • Page 78 UPC-V312-D525 Panel PC Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address. The serial port IO port address and interrupt address Auto EFAULT are automatically detected. Serial Port I/O port address is 2E8h and the interrupt IO=2E8h;...
  • Page 79 UPC-V312-D525 Panel PC Serial Port I/O port address is 3F8h and the interrupt IO=3F8h; address is IRQ3, 4, 5, 6, 7, 10, 11, 12 IRQ=3, 5, 6, 7, 10, 11, 12 Serial Port I/O port address is 2F8h and the interrupt IO=2F8h;...

  • Page 80: H/W Monitor

    UPC-V312-D525 Panel PC The serial port IO port address and interrupt address Auto EFAULT are automatically detected. Serial Port I/O port address is 2E0h and the interrupt IO=2E0h; address is IRQ10 IRQ=10 Serial Port I/O port address is 2C0h and the interrupt IO=2C0h;...

  • Page 81: Serial Port Console Redirection

    UPC-V312-D525 Panel PC Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced PC Health Status CPU Temperature :+50 C Accuracy: 1.(-5~+10)degree around 100 degree 2.(-10~+15)degree around 50 degree SYS Temperature :+41 C --------------------- VCC3C :+3.360 V : Select Screen ↑...

  • Page 82: Console Redirection Settings

    UPC-V312-D525 Panel PC Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced COM1 Console Redirection Console Redirection [Enabled] Enable or Disable > Console Redirection Settings COM3 --------------------- Console Redirection [Disabled] : Select Screen ↑ ↓: Select Item > Console Redirection Settings...
  • Page 83 UPC-V312-D525 Panel PC Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced COM1 Console Redirection Console Redirection Settings Enable or Disable Terminal Type [ANSI] Bits per second [115200] --------------------- Data Bits : Select Screen ↑ ↓: Select Item...

  • Page 84: Iei Feature

    UPC-V312-D525 Panel PC 4.3.8 IEI Feature Use the IEI Feature menu (BIOS Menu 12) to configure One Key Recovery function. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit iEi Feature ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Auto Recovery Function [Disabled] Select Screen ↑ ↓...

  • Page 85: Host Bridge Configuration

    UPC-V312-D525 Panel PC Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Save & Exit > Host Bridge Host Bridge Parameters > South Bridge > Intel IGD SWSCI OpRegion --------------------- : Select Screen ↑ ↓: Select Item...

  • Page 86: South Bridge Configuration

    UPC-V312-D525 Panel PC 4.4.2 South Bridge Configuration Use the South Bbridge Configuration menu (BIOS Menu 15) to configure the Southbridge chipset. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Chipset Auto Power Button Function [Enabled] High Definition Audio...
  • Page 87 UPC-V312-D525 Panel PC Set Spread Spectrum function [Disabled] Use the Set Spread Spectrum function option to reduce the EMI. Excess EMI is generated when the system clock generator pulses have extreme values. Spreading the pulse spectrum modulates changes in the extreme values from spikes to flat curves, thus reducing the EMI.

  • Page 88: Intel Igd Swsci Opregion

    UPC-V312-D525 Panel PC Disables GPS function Disabled EFAULT MIC Support [Enabled] Use the MIC Support option to enable or disable the microphone. Enables microphone Enabled EFAULT Disables microphone Disabled Auto Dimming Support [Enabled] Use the Auto Dimming Support option to enable or disable the auto dimming function.
  • Page 89 UPC-V312-D525 Panel PC DVMT Mode Select [DVMT Mode] Use the DVMT Mode Select option to select the Intel Dynamic Video Memory Technology (DVMT) operating mode. A fixed portion of graphics memory is reserved as Fixed Mode graphics memory. Graphics memory is dynamically allocated according to...

  • Page 90: Boot

    UPC-V312-D525 Panel PC Backlight Control [Inverted] Use the Backlight Control option to select the backlight control mode. Brightest at high voltage level Normal Brightest at low voltage level Inverted EFAULT 4.5 Boot Use the Boot menu (BIOS Menu 17) to configure system boot options.

  • Page 91: Save & Exit

    EFAULT Load PXE Option ROMs Enabled Boot Option #1 [PATA: IEI Technology Corp. ICF] Use the Boot Option #1 option to specify the boot sequence from the available devices. 4.6 Save & Exit Use the Save & Exit menu (BIOS Menu 18) to load default BIOS values, optimal failsafe values and to save configuration changes.
  • Page 92 UPC-V312-D525 Panel PC Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Save & Exit Save Changes and Reset Exit system setup after Discard Changes and Reset saving the changes. Restore Defaults Save as User Defaults...
  • Page 93 UPC-V312-D525 Panel PC Page 79...

  • Page 94: Software Drivers

    UPC-V312-D525 Panel PC Chapter Software Drivers Page 80...

  • Page 95: Available Software Drivers

    UPC-V312-D525 Panel PC 5.1 Available Software Drivers NOTE: The content of the CD may vary throughout the life cycle of the product and is subject to change without prior notice. Visit the IEI website or contact technical support for the latest updates.

  • Page 96: Chipset Driver Installation

    UPC-V312-D525 Panel PC 5.3 Chipset Driver Installation To install the chipset driver, please do the following. Access the driver list. (See Section 5.2) Step 1: Click “Chipset” and select the folder which corresponds to the operating system. Step 2: Locate the setup file and double click on it.

  • Page 97: Figure 5-2: Chipset Driver Welcome Screen

    UPC-V312-D525 Panel PC Figure 5-2: Chipset Driver Welcome Screen The license agreement in Figure 5-3 appears. Step 7: Read the License Agreement. Step 8: Click Yes to continue. Step 9: Figure 5-3: Chipset Driver License Agreement The Read Me file in Figure 5-4 appears.

  • Page 98: Figure 5-4: Chipset Driver Read Me File

    UPC-V312-D525 Panel PC Click Next to continue. Step 11: Figure 5-4: Chipset Driver Read Me File Setup Operations are performed as shown in Figure 5-5. Step 12: Once the Setup Operations are complete, click Next to continue. Step 13: Figure 5-5: Chipset Driver Setup Operations...

  • Page 99: Graphics Driver Installation

    UPC-V312-D525 Panel PC The Finish screen in Figure 5-6 appears. Step 14: Select “Yes, I want to restart this computer now” and click Step 15: Finish.Step 0: Figure 5-6: Chipset Driver Installation Finish Screen 5.4 Graphics Driver Installation To install the Graphics driver, please do the following.

  • Page 100: Figure 5-7: Graphics Driver Read Me File

    UPC-V312-D525 Panel PC Figure 5-7: Graphics Driver Read Me File The installation files are extracted. See Figure 5-8. Step 6: Click Next to continue. Step 7: Figure 5-8: Graphics Driver Setup Files Extracted The Welcome Screen in Figure 5-9 appears.

  • Page 101: Figure 5-9: Graphics Driver Welcome Screen

    UPC-V312-D525 Panel PC Figure 5-9: Graphics Driver Welcome Screen The License Agreement in Figure 5-10 appears. Step 10: Click Yes to accept the agreement and continue. Step 11: Figure 5-10: Graphics Driver License Agreement The Read Me file in Figure 5-11 appears.

  • Page 102: Figure 5-11: Graphics Driver Read Me File

    UPC-V312-D525 Panel PC Figure 5-11: Graphics Driver Read Me File Setup Operations are performed as shown in Figure 5-12. Step 14: Once the Setup Operations are complete, click Next to continue. Step 15: Figure 5-12: Graphics Driver Setup Operations The Finish screen in Figure 5-13 appears.

  • Page 103: Lan Driver Installation

    UPC-V312-D525 Panel PC Figure 5-13: Graphics Driver Installation Finish Screen 5.5 LAN Driver Installation To install the LAN driver, please do the following. Access the driver list. (See Section 5.2) Step 1: Click “LAN” and select the Realtek folder Step 2: Select the folder which corresponds to the operating system.

  • Page 104: Figure 5-14: Lan Driver Welcome Screen

    UPC-V312-D525 Panel PC Figure 5-14: LAN Driver Welcome Screen Click Next to continue. Step 6: The Ready to Install screen in Figure 5-15 appears. Step 7: Click Next to proceed with the installation. Step 8: Figure 5-15: LAN Driver Welcome Screen The program begins to install.

  • Page 105: Figure 5-16: Lan Driver Installation

    UPC-V312-D525 Panel PC The installation progress can be monitored in the progress bar shown in Figure Step 10: 5-16. Figure 5-16: LAN Driver Installation When the driver installation is complete, the screen in Figure 5-17 appears. Step 11: Figure 5-17: LAN Driver Installation Complete...

  • Page 106: Audio Driver Installation

    UPC-V312-D525 Panel PC 5.6 Audio Driver Installation To install the audio driver, please do the following. Access the driver list. (See Section 5.2) Step 1: Click “Audio”. Step 2: Double click the setup file. Step 3: The Audio Driver Welcome Screen in Figure 5-18 appears.

  • Page 107: Figure 5-19: Audio Driver Installation

    UPC-V312-D525 Panel PC Figure 5-19: Audio Driver Installation When the installation is complete, the screen in Figure 5-20 appears. Step 7: Select “Yes, I want to restart my computer now” and click Finish. Step 8: Step 0: Figure 5-20: AC’97 Driver Installation Complete...

  • Page 108: Touch Screen Driver Installation

    UPC-V312-D525 Panel PC 5.7 Touch Screen Driver Installation To install the touch panel software driver, please follow the steps below. Access the driver list. (See Section 5.2) Step 1: Click “Touch Screen.” Step 2: Locate the setup file and double click on it.

  • Page 109: Figure 5-22: Touch Screen Driver License Agreement

    UPC-V312-D525 Panel PC Figure 5-22: Touch Screen Driver License Agreement Browse for an install location or use the one suggested (Figure 5-23). Step 8: Click I to continue. Step 9: NSTALL Figure 5-23: Touch Screen Driver Choose Install Location The Install screen appears and displays the progress of the installation (Figure Step 10: 5-24).

  • Page 110: Figure 5-24: Touch Screen Driver Installation Screen

    UPC-V312-D525 Panel PC Click N to continue. Step 11: Figure 5-24: Touch Screen Driver Installation Screen When the installation is complete, click F to exit setup. (Figure 5-25). Step 12: INISH Figure 5-25: Touch Screen Driver Update Complete Page 96...

  • Page 111: Calibrating The Touch Screen

    UPC-V312-D525 Panel PC 5.7.1 Calibrating the Touch Screen To calibrate the touch screen cursor with the motion of the touch screen pen (or finger), please follow the steps below: Make sure the touch screen driver is properly installed. Step 1: Locate the PenMount Monitor icon in the bottom right corner of the screen.

  • Page 112: Figure 5-28: Configuration Screen

    UPC-V312-D525 Panel PC Figure 5-28: Configuration Screen Double click the PenMount 9000 icon as shown in Figure 5-28. Step 6: The calibration initiation screen in Figure 5-29 appears. Step 7: Select the Standard Calibration button as shown in Figure 5-29.

  • Page 113: Gps Driver Installation

    UPC-V312-D525 Panel PC Figure 5-30: Calibration Screen Follow the instructions. The user is asked touch the screen at five specified Step 10: points after which the screen is calibrated. Step 0: 5.8 GPS Driver Installation To install the GPS driver, please do the following.

  • Page 114: Figure 5-31: Gps Driver Welcome Screen

    UPC-V312-D525 Panel PC Figure 5-31: GPS Driver Welcome Screen The license agreement in Figure 5-32 appears. Step 6: Read the License Agreement. Step 7: Click I Agree to continue. Step 8: Figure 5-32: GPS Driver Choose Install Location The program begins to install.

  • Page 115: Figure 5-33: Installing Gps Driver

    UPC-V312-D525 Panel PC Figure 5-33: Installing GPS Driver When the driver installation is complete, the screen in Figure 5-34 appears. Step 10: Click Finish to save and exit. Step 11: Step 0: Figure 5-34: GPS Driver Installation Complete Page 101...

  • Page 116: Can-Bus Driver Installation

    UPC-V312-D525 Panel PC 5.9 CAN-bus Driver Installation To install the CAN-bus driver, please follow the steps below. Open Windows Control Panel (Figure 5-35). Step 1: Figure 5-35: Windows Control Panel Double-click the System icon (Figure 5-36). Step 2: Page 102...

  • Page 117: Figure 5-36: System Icon

    UPC-V312-D525 Panel PC Figure 5-36: System Icon Click the Device Manager tab (Figure 5-37). Step 3: Page 103...

  • Page 118: Figure 5-37: Device Manager Tab

    UPC-V312-D525 Panel PC Figure 5-37: Device Manager Tab A list of system hardware devices appears. Step 4: Double-click the listed device that has question marks next to it (this means Step 5: Windows does not recognize the device). The Device Driver Wizard appears (Figure 5-38).

  • Page 119: Figure 5-38: Search For Suitable Driver

    UPC-V312-D525 Panel PC Figure 5-38: Search for Suitable Driver Select “Search for a suitable driver for my device (recommended),” and click Step 7: to continue. Select “Specify a Location” in the Locate Driver Files window (Figure 5-39). Step 8: Figure 5-39: Locate Driver Files Click N to continue.
  • Page 120 UPC-V312-D525 Panel PC Select the setup file under the “X:\CAN02_Driver” directory in the Locate File Step 11: window, where “X:\” is the system CD drive. Click O and the driver is installed.Step 0: Step 12: Page 106...

  • Page 121: A Bios Configuration Options

    UPC-V312-D525 Panel PC Appendix BIOS Configuration Options Page 107...

  • Page 122: Bios Configuration Options

    UPC-V312-D525 Panel PC BIOS Configuration Options Below is a list of BIOS configuration options described in Chapter 　 BIOS Information .........................54 　 System Date [xx/xx/xx] ......................54 　 System Time [xx:xx:xx] .......................55 　 ACPI Sleep State [S1 (CPU Stop Clock)] ................56 　...
  • Page 123 Bootup NumLock State [On]....................76 　 Quiet Boot [Enabled] ......................77 　 Launch PXE OpROM [Disabled] ..................77 　 Boot Option #1 [PATA: IEI Technology Corp. ICF]............77 　 Save Changes and Reset ....................78 　 Discard Changes and Reset ....................78 　 Restore Defaults ........................78 　...

  • Page 124: B One Key Recovery

    UPC-V312-D525 Panel PC Appendix One Key Recovery Page 110...

  • Page 125: One Key Recovery Introduction

    UPC-V312-D525 Panel PC B.1 One Key Recovery Introduction The IEI one key recovery is an easy-to-use front end for the Norton Ghost system backup and recovery tool. This tool provides quick and easy shortcuts for creating a backup and reverting to that backup or reverting to the factory default settings.

  • Page 126: System Requirement

    UPC-V312-D525 Panel PC After completing the five initial setup procedures as described above, users can access the recovery tool by pressing <F3> while booting up the system. The detailed information of each function is described in Section B.5. NOTE: The initial setup procedures for Linux system are described in Section B.3.

  • Page 127: Supported Operating System

    UPC-V312-D525 Panel PC partitions. Please take the following table as a reference when calculating the size of the partition. OS Image after Ghost Compression Ratio Windows® 7 7 GB 5 GB Windows® XPE 776 MB 560 MB Windows® CE 6.0...

  • Page 128: Setup Procedure For Windows

    UPC-V312-D525 Panel PC Ubuntu 8.10 (Intrepid) Ubuntu 7.10 (Gutsy) Ubuntu 6.10 (Edgy) Debian 5.0 (Lenny) Debian 4.0 (Etch) SuSe 11.2 SuSe 10.3 NOTE: Installing unsupported OS versions may cause the recovery tool to fail. B.2 Setup Procedure for Windows Prior to using the recovery tool to backup or restore, a few setup procedures are required.

  • Page 129: Hardware And Bios Setup

    UPC-V312-D525 Panel PC B.2.1 Hardware and BIOS Setup Make sure the system is powered off and unplugged. Step 1: Install a hard drive or SSD in the system. An unformatted and unpartitioned disk Step 2: is recommended. Connect an optical disk drive to the system and insert the recovery CD.

  • Page 130: Figure B-2: Launching The Recovery Tool

    UPC-V312-D525 Panel PC Figure B-2: Launching the Recovery Tool The recovery tool setup menu is shown as below. Step 3: Figure B-3: Recovery Tool Setup Menu Press <6> then <Enter>. Step 4: Page 116...

  • Page 131: Figure B-4: Command Prompt

    UPC-V312-D525 Panel PC Figure B-4: Command Prompt The command prompt window appears. Type the following commands (marked Step 5: in red) to create two partitions. One is for the OS installation; the other is for saving recovery files and images which will be an invisible partition.

  • Page 132: Figure B-5: Partition Creation Commands

    UPC-V312-D525 Panel PC Figure B-5: Partition Creation Commands Page 118...

  • Page 133: Install Operating System, Drivers And Applications

    UPC-V312-D525 Panel PC NOTE: Use the following commands to check if the partitions were created successfully. Press any key to exit the recovery tool and automatically reboot the system. Step 6: Please continue to the following procedure: Build the Recovery Partition.S t e p 0 :...

  • Page 134: Building The Recovery Partition

    UPC-V312-D525 Panel PC B.2.4 Building the Recovery Partition Put the recover CD in the optical drive. Step 1: Start the system. Step 2: Boot the system from the recovery CD. When prompted, press any key to Step 3: boot from the recovery CD. It will take a while to launch the recovery tool. Please...

  • Page 135: Figure B-8: Building The Recovery Partition

    UPC-V312-D525 Panel PC The Symantec Ghost window appears and starts configuring the system to build Step 5: a recovery partition. In this process the partition created for recovery files in Section B.2.2 is hidden and the recovery tool is saved in this partition.

  • Page 136: Create Factory Default Image

    UPC-V312-D525 Panel PC B.2.5 Create Factory Default Image NOTE: Before creating the factory default image, please configure the system to a factory default environment, including driver and application installations. To create a factory default image, please follow the steps below.

  • Page 137: Figure B-12: About Symantec Ghost Window

    UPC-V312-D525 Panel PC Figure B-12: About Symantec Ghost Window Use mouse to navigate to the option shown below (Figure B-13). Step 4: Figure B-13: Symantec Ghost Path Select the local source drive (Drive 1) as shown in Figure B-14. Then click OK.

  • Page 138: Figure B-14: Select A Local Source Drive

    UPC-V312-D525 Panel PC Figure B-14: Select a Local Source Drive Select a source partition (Part 1) from basic drive as shown in Figure B-15. Step 6: Then click OK. Figure B-15: Select a Source Partition from Basic Drive Select 1.2: [Recovery] NTFS drive and enter a file name called Step 7: (Figure B-16).

  • Page 139: Figure B-16: File Name To Copy Image To

    UPC-V312-D525 Panel PC Figure B-16: File Name to Copy Image to When the Compress Image screen in Figure B-17 prompts, click High to make Step 8: the image file smaller. Figure B-17: Compress Image Page 125...

  • Page 140: Figure B-18: Image Creation Confirmation

    UPC-V312-D525 Panel PC The Proceed with partition image creation window appears, click Yes to Step 9: continue. Figure B-18: Image Creation Confirmation The Symantec Ghost starts to create the factory default image (Figure B-19). Step 10: Figure B-19: Image Creation Complete When the image creation completes, a screen prompts as shown in Figure B-20.

  • Page 141: Auto Recovery Setup Procedure

    UPC-V312-D525 Panel PC The recovery tool main menu window is shown as below. Press any key to Step 12: reboot the system. S t e p 0 : Figure B-21: Press Any Key to Continue B.3 Auto Recovery Setup Procedure...

  • Page 142: Figure B-22: Auto Recovery Utility

    UPC-V312-D525 Panel PC Figure B-22: Auto Recovery Utility Reboot the system from the recovery CD. When prompted, press any key to Step 3: boot from the recovery CD. It will take a while to launch the recovery tool. Please be patient! Figure B-23: Launching the Recovery Tool When the recovery tool setup menu appears, press <4>...

  • Page 143: Figure B-25: Building The Auto Recovery Partition

    UPC-V312-D525 Panel PC The Symantec Ghost window appears and starts configuring the system to build Step 5: an auto recovery partition. In this process the partition created for recovery files in Section B.2.2 is hidden and the auto recovery tool is saved in this partition.

  • Page 144: Figure B-27: Image Creation Complete

    UPC-V312-D525 Panel PC The Symantec Ghost starts to create the factory default image (Figure B-27). Step 7: Figure B-27: Image Creation Complete After completing the system configuration, press any key in the following window Step 8: to restart the system.

  • Page 145: Setup Procedure For Linux

    UPC-V312-D525 Panel PC BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit iEi Feature ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Auto Recovery Function [Enabled] Recover from PXE [Disabled] Select Screen ↑ ↓ Select Item Enter Go to SubScreen General Help Save and Exit Exit v02.61 ©Copyright 1985-2006, American Megatrends, Inc.

  • Page 146: Figure B-29: Partitions For Linux

    UPC-V312-D525 Panel PC Install Linux operating system. Make sure to install GRUB (v0.97 or earlier) Step 2: MBR type and Ext3 partition type. Leave enough space on the hard drive to create the recover partition later. NOTE: If the Linux OS is not installed with GRUB (v0.97 or earlier) and Ext3, the Symantec Ghost may not function properly.

  • Page 147: Figure B-30: Manual Recovery Environment For Linux

    UPC-V312-D525 Panel PC DISKPART>create part pri size= DISKPART>assign letter=N DISKPART>exit system32>format N: /fs:ntfs /q /v:Recovery /y system32>exit Build the recovery partition. Press any key to boot from the recovery CD. It will Step 4: take a while to launch the recovery tool. Please be patient. When the recovery tool setup menu appears, type <3>...

  • Page 148: Figure B-31: Access Menu.lst In Linux (Text Mode)

    UPC-V312-D525 Panel PC Figure B-31: Access menu.lst in Linux (Text Mode) Modify the menu.lst as shown below. Step 6: The recovery tool menu appears. (Figure B-32) Step 7: Figure B-32: Recovery Tool Menu Create a factory default image. Follow described in Section...

  • Page 149: Recovery Tool Functions

    UPC-V312-D525 Panel PC B.5 Recovery Tool Functions After completing the initial setup procedures as described above, users can access the recovery tool by pressing <F3> while booting up the system. However, if the setup procedure in Section B.3 has been completed and the auto recovery function is enabled, the system will automatically restore from the factory default image without pressing the F3 key.

  • Page 150: Factory Restore

    UPC-V312-D525 Panel PC WARNING: All data in the system will be deleted during the system recovery. Please backup the system files before restoring the system (either Factory Restore or Restore Backup). B.5.1 Factory Restore To restore the factory default image, please follow the steps below.

  • Page 151: Backup System

    UPC-V312-D525 Panel PC Figure B-35: Recovery Complete Window B.5.2 Backup System To backup the system, please follow the steps below. Type <2> and press <Enter> in the main menu. Step 1: The Symantec Ghost window appears and starts to backup the system. A Step 2: backup image called iei_user.GHO is created in the hidden Recovery partition.

  • Page 152: Restore Your Last Backup

    UPC-V312-D525 Panel PC Figure B-37: System Backup Complete Window B.5.3 Restore Your Last Backup To restore the last system backup, please follow the steps below. Type <3> and press <Enter> in the main menu. Step 1: The Symantec Ghost window appears and starts to restore the last backup Step 2: image (iei_user.GHO).

  • Page 153: Manual

    UPC-V312-D525 Panel PC Figure B-39: Restore System Backup Complete Window B.5.4 Manual To restore the last system backup, please follow the steps below. Type <4> and press <Enter> in the main menu. Step 1: The Symantec Ghost window appears. Use the Ghost program to backup or Step 2: recover the system manually.

  • Page 154: Restore Systems From A Linux Server Through Lan

    UPC-V312-D525 Panel PC B.6 Restore Systems from a Linux Server through LAN The One Key Recovery allows a client system to automatically restore to a factory default image saved in a Linux system (the server) through LAN connectivity after encountering a Blue Screen of Death (BSoD) or a hang for around 10 minutes.

  • Page 155: Configure Dhcp Server Settings

    UPC-V312-D525 Panel PC B.6.1 Configure DHCP Server Settings Install the DHCP Step 1: #yum install dhcp (CentOS, commands marked in red) #apt-get install dhcp3-server (Debian, commands marked in blue) Confirm the operating system default settings: dhcpd.conf. Step 2: CentOS Use the following command to show the DHCP server sample location: #vi /etc/dhcpd.conf...

  • Page 156: Configure Tftp Settings

    UPC-V312-D525 Panel PC filename “pxelinux.0”; B.6.2 Configure TFTP Settings Install the tftp, httpd and syslinux. Step 1: #yum install tftp-server httpd syslinux (CentOS) #apt-get install tftpd-hpa xinetd syslinux (Debian) Enable the TFTP server by editing the “/etc/xinetd.d/tftp” file and make it use the Step 2: remap file.

  • Page 157: Configure One Key Recovery Server Settings

    UPC-V312-D525 Panel PC Debian Replace the TFTP settings from “inetd” to “xinetd” and annotate the “inetd” by adding “#”. #vi /etc/inetd.conf Modify: #tftp dgram udp wait root /usr/sbin..(as shown below) #vi /etc/xinetd.d/tftp B.6.3 Configure One Key Recovery Server Settings Copy the Utility/RECOVERYR10.TAR.BZ2 package from the One Key...

  • Page 158: Start The Dhcp, Tftp And Http

    UPC-V312-D525 Panel PC B.6.4 Start the DHCP, TFTP and HTTP Start the DHCP, TFTP and HTTP. For example: CentOS #service xinetd restart #service httpd restart #service dhcpd restart Debian #/etc/init.d/xinetd reload #/etc/init.d/xinetd restart #/etc/init.d/dhcp3-server restart B.6.5 Create Shared Directory Install the samba.

  • Page 159: Setup A Client System For Auto Recovery

    UPC-V312-D525 Panel PC Modify: [image] comment = One Key Recovery path = /share/image browseable = yes writable = yes public = yes create mask = 0644 directory mask = 0755 Edit “/etc/samba/smb.conf” for your environment. For example: Step 4: Modify the hostname...
  • Page 160 UPC-V312-D525 Panel PC Continue to configure the Boot Option Priorities BIOS option of the client Step 2: system: Boot Option #1 remain the default setting to boot from the original OS. Boot Option #2 select the boot from LAN option.
  • Page 161 UPC-V312-D525 Panel PC NOTE: A firewall or a SELinux is not in use in the whole setup process. If there is a firewall or a SELinux protecting the system, modify the configuration information to accommodate them. Page 147...

  • Page 162: Other Information

    UPC-V312-D525 Panel PC B.7 Other Information B.7.1 Using AHCI Mode or ALi M5283 / VIA VT6421A Controller When the system uses AHCI mode or some specific SATA controllers such as ALi M5283 or VIA VT6421A, the SATA RAID/AHCI driver must be installed before using one key recovery.
  • Page 163 UPC-V312-D525 Panel PC When the following window appears, press <S> to select “Specify Additional Step 5: Device”. In the following window, select a SATA controller mode used in the system. Then Step 6: press <Enter>. The user can now start using the SATA HDD.

  • Page 164: System Memory Requirement

    UPC-V312-D525 Panel PC After pressing <Enter>, the system will get into the recovery tool setup menu. Step 7: Continue to follow the setup procedure from in Section B.2.2 Create Step 4 Partitions to finish the whole setup process. S t e p 0 : B.7.2 System Memory Requirement...

  • Page 165: C Safety Precautions

    UPC-V312-D525 Panel PC Appendix Safety Precautions Page 151...

  • Page 166: Safety Precautions

    UPC-V312-D525 Panel PC WARNING: The precautions outlined in this chapter should be strictly followed. Failure to follow these precautions may result in permanent damage to the EP series. C.1 Safety Precautions Please follow the safety precautions outlined in the sections that follow: C.1.1 General Safety Precautions...

  • Page 167: Anti-Static Precautions

    UPC-V312-D525 Panel PC C.1.2 Anti-static Precautions WARNING: Failure to take ESD precautions during the installation of the EP series may result in permanent damage to the EP series and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the EP series.

  • Page 168: Maintenance And Cleaning Precautions

    UPC-V312-D525 Panel PC Outside the European Union - If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method. Within the European Union:...

  • Page 169: Cleaning Tools

    UPC-V312-D525 Panel PC C.2.2 Cleaning Tools Some components in the EP series may only be cleaned using a product specifically designed for the purpose. In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the EP series.

  • Page 170: D Watchdog Timer

    UPC-V312-D525 Panel PC Appendix Watchdog Timer Page 156...
  • Page 171 UPC-V312-D525 Panel PC NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.

  • Page 172: Example Program

    UPC-V312-D525 Panel PC NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BX, 05 ;time-out value is 5 seconds ;...

  • Page 173: E Hazardous Materials Disclosure

    UPC-V312-D525 Panel PC Appendix Hazardous Materials Disclosure Page 159...

  • Page 174: Hazardous Material Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    UPC-V312-D525 Panel PC E.1 Hazardous Material Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 175 UPC-V312-D525 Panel PC Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Chromium Biphenyls Diphenyl Ethers (CR(VI)) (PBB) (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
  • Page 176 UPC-V312-D525 Panel PC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...

Table of Contents
