1.3.8 Control Terminals

IP20 200-240V 0,25-11kW and IP20 380-480V 0,37-22kW:

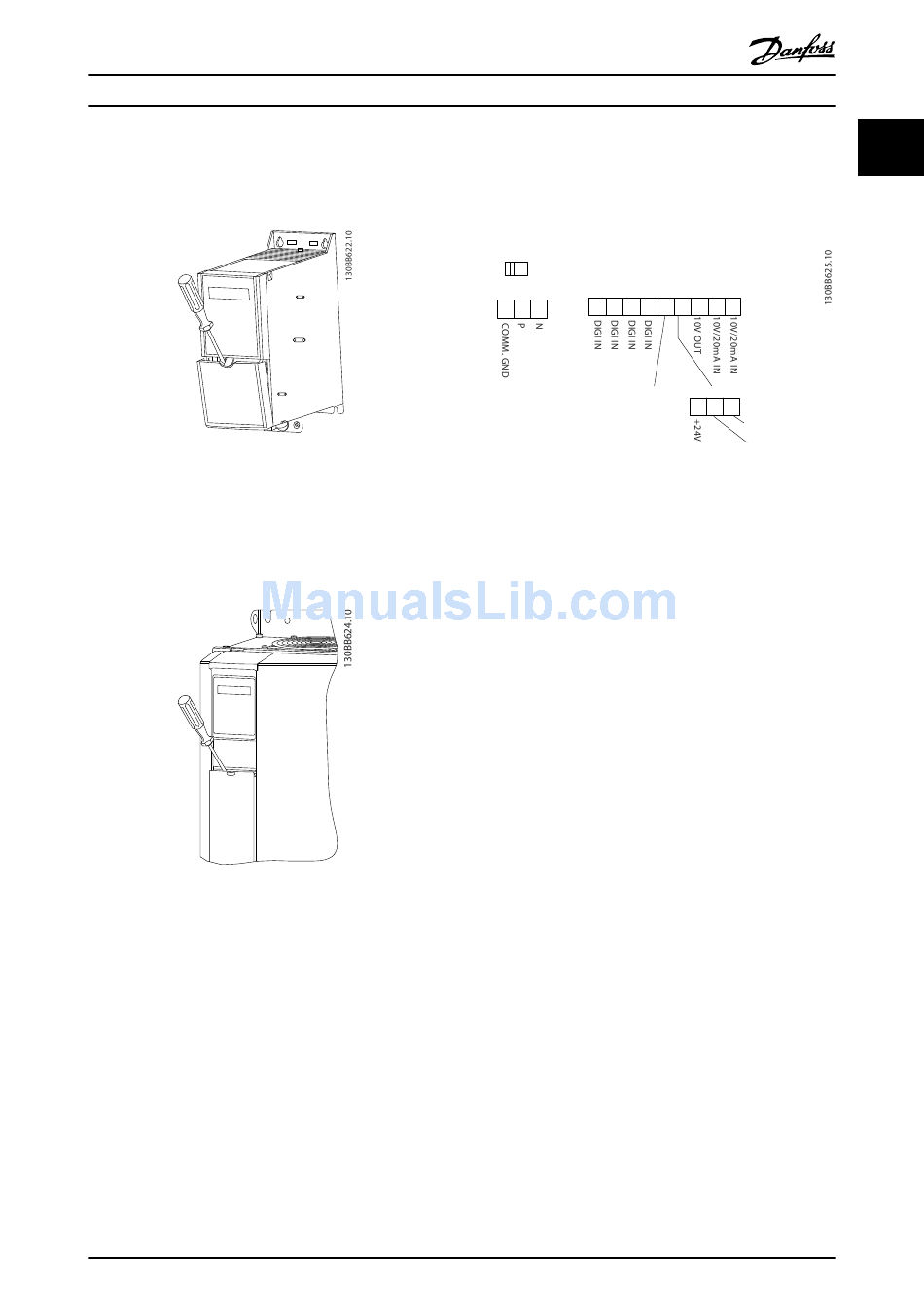

Illustration 1.3 Location of control terminals
1. Place a screwdriver behind the terminal cover to
activate snap.
2. Tilt the screwdriver outwards to open the cover.
IP20 380-480V 30-90kW.
1. Place a screwdriver behind the terminal cover to
activate snap.
2. Tilt the screwdriver outwards to open the cover.
Digital input 18, 19 and 27 mode is set in par. 5-00 (PNP is
default value) and digital input 29 mode is set in par. 5-03
(PNP is default value).
VLT HVAC Basic Drive FC 101 Quick Guide
Control terminals:
The illustration below shows all control terminals of the
frequency converter. Applying Start (term. 18), connection
between terminal 12-27 and an analog reference (term. 53 or
54 and 55) make the frequency converter run.
