1.4 Programming

1.4.1 Programming with the Local Control
Panel (LCP)
For detailed information on programming, please see
Programming Guide, MG.18.BX.YY
NOTE
The frequency converter can also be programmed from a PC
via RS485 com-port by installing the MCT-10 Set-up
Software. This software can either be ordered using code
number 130B1000 or downloaded from the Danfoss Web
site: www.danfoss.com/BusinessAreas/DrivesSolutions/
softwaredownload
1
2
3
1-20 Motor Power
[2] 0.12kW-0.16HP
Setup 1
4
Menu Status
5
Com
On
Warn.
6
Alarm
Hand O
On Reset
7

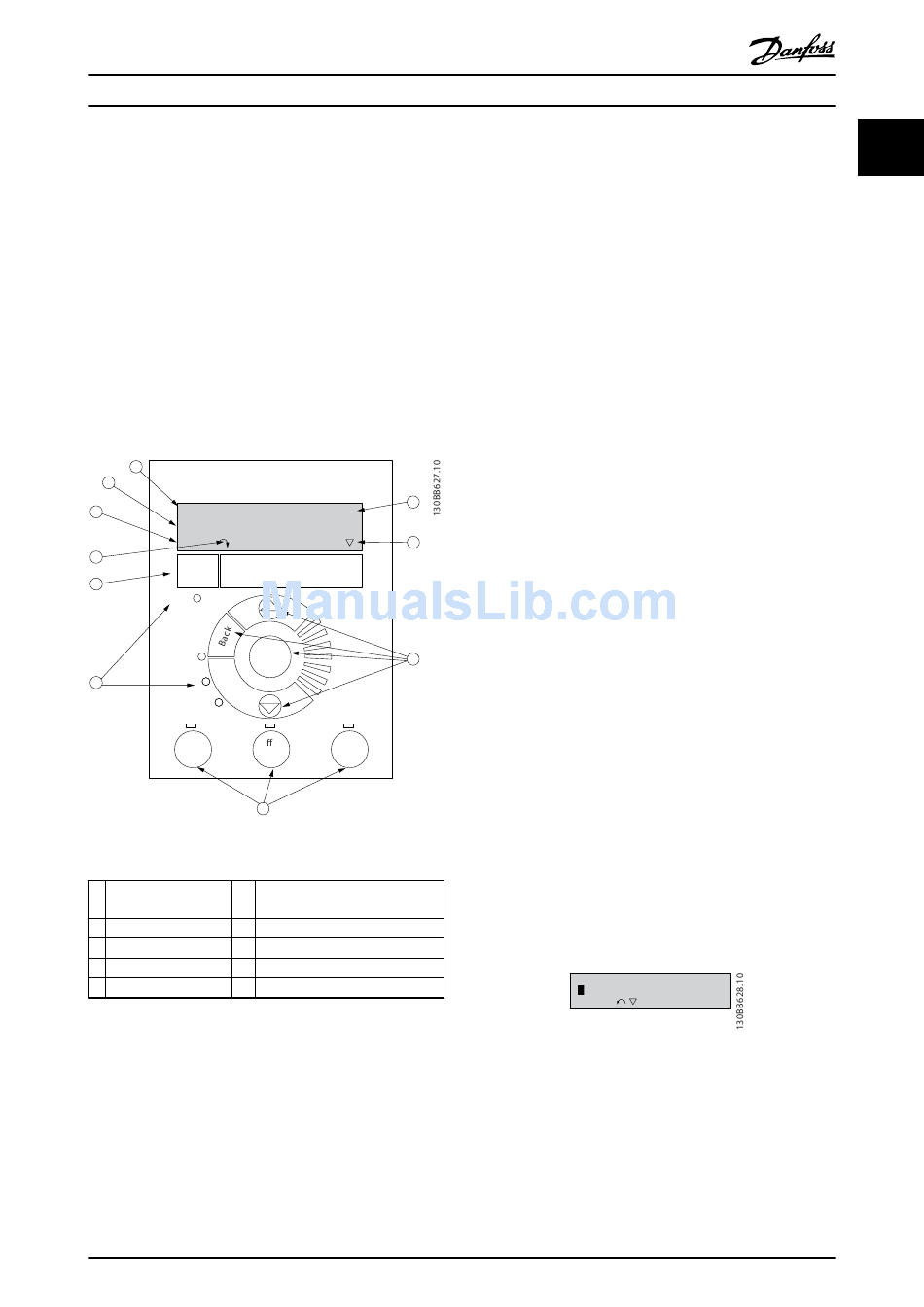

Illustration 1.4 View of the LCP.
1 Parameter number 6 Indicator lights
and name
2 Parameter value 7 Operation keys and LEDs
3 Setup number 8 Navigation keys
4 Motor direction 9 Selected menu
5 Menu key 10 Alpha-numeric display
VLT HVAC Basic Drive FC 101 Quick Guide
10
9
Quick Main
Menu Menu
OK
8
Auto
On
®
MG.18.A1.02 - VLT is a registered Danfoss trademark
Use the [MENU] key to select one of the following menus:
Status:
For readouts only.
Quick Menu:
For access to Quick Menus
Main Menu:
For access to all parameters.
Navigation Keys:
[Back]:
For moving to the previous step or layer in the navigation
structure.
▲ ▼
Arrows [ ] [ ]:
For navigating between parameter groups, parameters and
within parameters.
[OK]:
For selecting a parameter and for accepting changes to
parameter settings.
Operation Keys:
A yellow light above the operation keys indicates the active
key.
[Hand on]:
Starts the motor and enables control of the frequency
converter via the LCP.
[Off/Reset]:
Stops the motor (off). If in alarm mode the alarm will be
reset.
[Auto on]:
The frequency converter is controlled either via control
terminals or serial communication.
▲ ▼
Arrows [ ] and [ ] toggles between the choices in each
menu.
The display indicates the status mode with a small arrow
above "Status".
At power-up
At the first power-up the user is asked to choose preferred
language. Once selected this screen will never be shown
again in the following powerups, but language can still be
changed in 0-01 Language.
Select Language
[ 0 ] English
Setup 1
1 1
