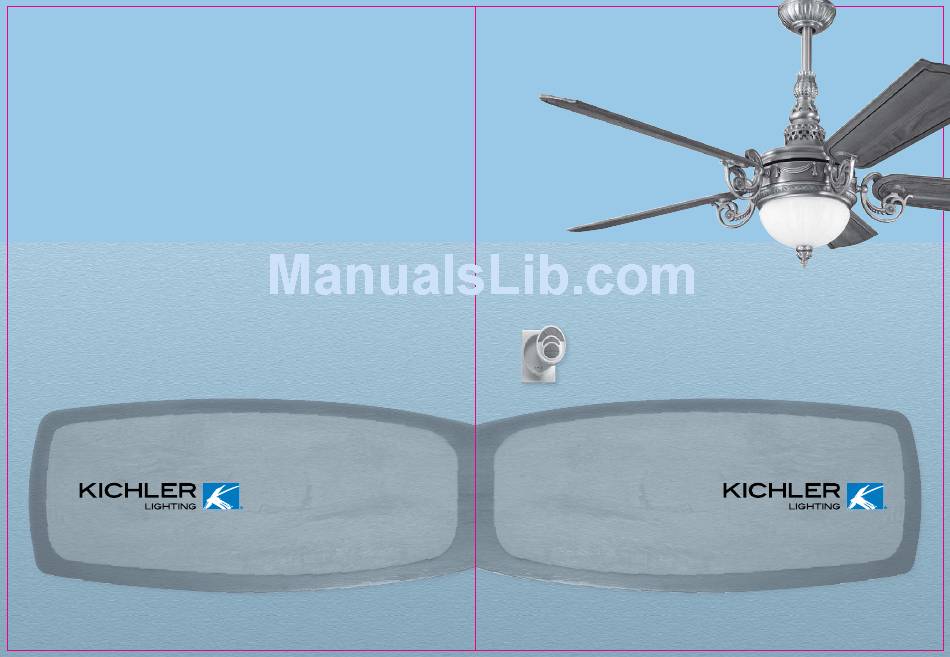

Kichler
Lighting
®
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday

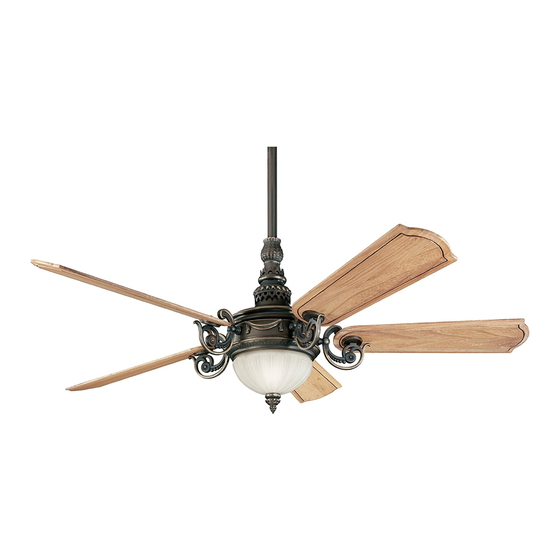

Highland Manor
Designed to coordinate with a popular Kichler Lighting collection.
Includes our new
CoolTouch
Control System
TM
Looks permanent, but goes wherever you go!
U.S. Patent Pending
Instruction Manual
TM
A Kichler
®
Décor
™
ceiling fan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Highland Manor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kichler Lighting Highland Manor

Summary of Contents for Kichler Lighting Highland Manor

  • Page 1 Highland Manor A Kichler ® Décor ™ ceiling fan Designed to coordinate with a popular Kichler Lighting collection. Includes our new CoolTouch Control System Looks permanent, but goes wherever you go! U.S. Patent Pending Kichler Lighting ® 7711 East Pleasant Valley Road P.O.

  • Page 2: Safety Rules

    1. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. Avoid placing objects in the path of the electricity has been turned off at the circuit blades. breaker or fuse box before beginning. 9. To avoid personal injury or damage to the fan and other items, be cautious when All wiring must be in accordance with the working around or cleaning the fan.

  • Page 3: Tools And Materials Required

    Highland Manor 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Slot screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Canopy (1) Canopy Décor (1)

  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing UL ( CUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Outlet box Secure the outlet box directly to the building structure.

  • Page 5: Hanging The Fan

    Highland Manor 5. HANGING THE FAN REMEMBER to turn off the power. Follow the steps below to hang your fan properly: Screw Shipping block Step 1. Remove the fan motor and housing assembly from the protective plastic bag and take the lower Styrofoam packing pad out of the carton.
  • Page 6 Step 6. Loose the screw on the bottom of the rod decoration 2. Slip the rod decoration 1, rod deco- Supply wires ration 2, canopy décor and canopy onto the Canopy downrod. Reinstall the hanger ball onto the downrod and make sure the cross pin is in place and the set screw on hanger ball is tight.

  • Page 7: Installation Of Safety Support

    Highland Manor 6. INSTALLATION OF SAFETY SUPPORT Flat Screw Wood Screw Support Brace ( For Canadian Installation ONLY ) Spring Washer Outlet Box A safety support cable is provided to help prevent Ceiling the ceiling fan from failing, please install it as follows.
  • Page 8 Outlet box Step 3. Remote Receiver to Outlet Box Electri- White(neutral) cal Connections: Connect the black Green or bare Black(hot) (hot) wire from the ceiling to the black wire copper(ground) marked "AC in L" from the receiver. Connect Black("AC IN L") the white(neutral) wire from the ceiling to the White("AC IN N") white wire marked "AC in N"...
  • Page 9 Highland Manor 9. ASSEMBLYING AND ATTACHING THE FAN BLADES Screw Step 1. Attach the blade to the blade bracket using the screws, washers and fiber washers Metal washer Silicon washer provided. Refer to Fig. 16 as needed. Start each screw into the bracket. Repeat for the two (2) remaining screws.

  • Page 10: Installing The Light Kit

    11. INSTALLING THE LIGHT KIT NOTE: Before continuing, make sure the power is disconnected by turning off the circuit breaker of removing the fuse at the circuit box. Step 1. Remove the 3 screws on the mounting plate. Step 2. The square wiring connector from the ceiling fan and the light fixture will only fix together one way.
  • Page 11 Highland Manor 13. OPERATING INSTRUCTIONS Restore power to ceiling fan and test for proper operation. , and buttons: These three buttons are used to set the fan speed as follows: = low speed = medium speed = high speed button: This button turns the fan off.

  • Page 12: Installing The Cooltouch™ Control System Wall Plate

    14. INSTALLING THE COOLTOUCH™ Ou t l et b o x Sw i t c h CONTROL SYSTEM WALL PLATE Wal l p l at e MAKE SURE THE ELECTRICITY IS TURNED OFF AT THE MAIN JUNCTION BOX OR THE CORRECT FUSE HAS BEEN PULLED AT THE MAIN JUNCTION BOX BEFORE CONTINUING.

  • Page 13: Troubleshooting

    Highland Manor 16. TROUBLESHOOTING Problem & Solution Fan will not operate: 1. Check main circuit breakers or fuses. 2. Check all main wiring connections to the fan and the connections in the switch housing. CAUTION: Make sure main power is off.
