Kichler
®
Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday

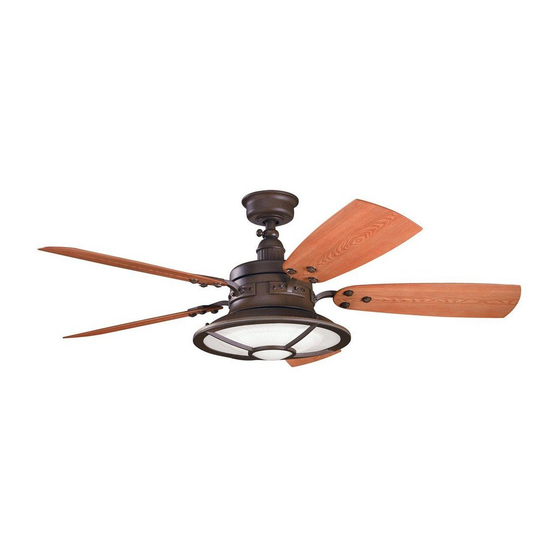

Harbour Walk
Includes our new
CoolTouch
Control System
TM
Looks permanent, but goes wherever you go!
U.S. Patent Pending
Instruction Manual
TM
Patio
A Kichler
Décor
ceiling fan
®
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Harbour Walk Patio and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kichler Lighting Harbour Walk Patio

Summary of Contents for Kichler Lighting Harbour Walk Patio

  • Page 1 Harbour Walk Patio A Kichler Décor ceiling fan ® ™ Includes our new CoolTouch Control System Looks permanent, but goes wherever you go! U.S. Patent Pending Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service 866.558.5706...

  • Page 2: Safety Rules

    1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. To avoid personal injury or damage to the electricity has been turned off at the circuit fan and other items, be cautious when breaker or fuse box before beginning. working around or cleaning the fan.

  • Page 3: Tools And Materials Required

    Harbour Walk Patio 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5) Canopy &...

  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure.

  • Page 5: Hanging The Fan

    Harbour Walk Patio 5. HANGING THE FAN REMEMBER to turn off the power before you Ceiling mounting bracket begin. Canopy To properly install your ceiling fan, follow the steps below. Canopy cover Step 1. Remove the decorative canopy bottom Fig. 5 cover from the canopy by turning the cover counter clockwise.
  • Page 6 Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod. Hanger ball Downrod Thread the hanger ball onto the downrod, insert the cross pin through the downrod and Canopy tighten. Now tighten the set screw. (Fig. 9) Step 9.

  • Page 7: Installation Of Safety Support

    Harbour Walk Patio 6. INSTALLATION OF SAFETY SUPPORT (for Canadian Installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please install Ceiling mounting it as follows. Attach bracket safety cable to ceiling joist Step 1.

  • Page 8: Finishing The Installation

    Step 2. Motor to Receiver Electrical Connections: (Fig. 14) Outlet box Connect the black wire from the fan to the black White (neutral) wire marked "TO MOTOR L" on the receiver. Black (hot) Connect the white wire from the fan to the white Green or bare copper (ground) wire marked "TO MOTOR N"...

  • Page 9: Attaching The Fan Blades

    Harbour Walk Patio 9. ATTACHING THE FAN BLADES CAUTION: Remove the five rubber shipping blocks attached to the face of the motor. These blocks keep the motor from shifting during shipping and MUST be removed during installation. Step 1. Attach a blade to a blade bracket using the screws, metal washers, plastic washers and Nuts provided.

  • Page 10: Installing The Light Kit

    11. INSTALLING THE LIGHT KIT NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Step 1. Remove 1 of the 3 screws from the mounting plate and loosen the other 2 screws (do not remove).

  • Page 11: Installing The Batteries

    Harbour Walk Patio 13. INSTALLING THE BATTERIES Remove the battery compartment cover on the back of the CoolTouch™ Transmitter and insert both batteries provided. Make sure the + sign is facing up. Take care during this procedure NOT TO move the frequency dip switches inside this compartment.
  • Page 12 Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans and so on. Warm Weather Operation: Forward (counter clockwise) A downward airflow creates a cooling effect as shown in Fig. 22. This allows you to set your air conditioner on a warmer setting without affecting your general comfort.

  • Page 13: Installing The Cooltouch Control System Wall Plate

    Harbour Walk Patio 15. INSTALLING THE COOLTOUCH ™ CONTROL SYSTEM WALL PLATE Outlet box Switch Select a location to install your CoolTouch™ Wall plate Control System Transmitter. You can replace an existing wall switch or, install the transmitter on ANY flat surface. Option 1: Install the control system using an existing wall switch outlet box.

  • Page 14: Troubleshooting

    17. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the batteries are installed properly. Positive (+) side facing out. 4.
