Summary of Contents for Kichler Lighting Monarch II

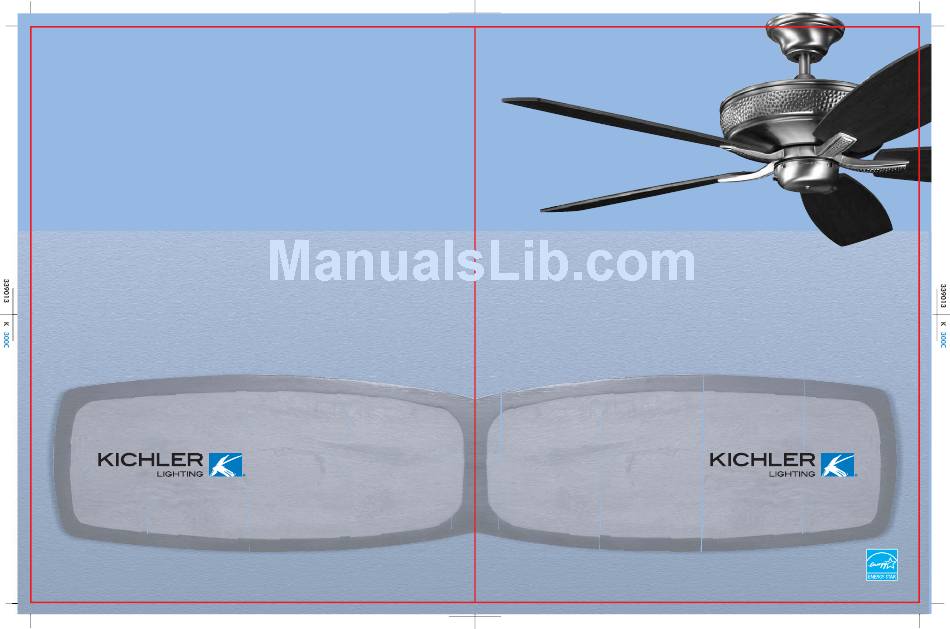

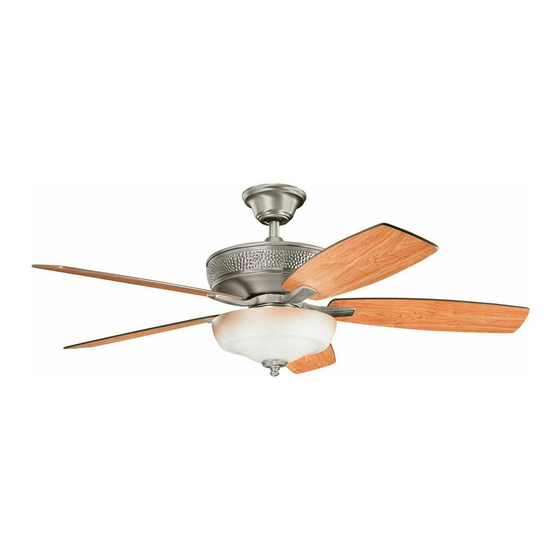

- Page 1 Monarch II ® ™ A Kichler Select ceiling fan Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Instruction Manual Cleveland, Ohio 44131-8010 Customer Service 866.558.5706 8:30 AM to 5:00 PM EST, Monday - Friday...
-
Page 2: Safety Rules
1. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. Avoid placing objects in the path of the electricity has been turned off at the circuit blades. breaker or fuse box before beginning. 9. To avoid personal injury or damage to the 2. -
Page 3: Tools And Materials Required
Monarch II 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5) Canopy & Ceiling mounting bracket... -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. -
Page 5: Hanging The Fan
Monarch II 5. HANGING THE FAN Ceiling mounting REMEMBER to turn off the power before you bracket begin. To properly install your ceiling fan, follow the Canopy steps below. Canopy Step 1. Remove the decorative canopy cover Fig. 5 bottom cover from the canopy by turning the cover counter clockwise. - Page 6 Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod. Hanger ball Downrod Thread the hanger ball onto the downrod, insert the cross pin through the downrod and Canopy tighten. Now tighten the set screw. (Fig. 9) Step 9.
-
Page 7: Installation Of Safety Support
Monarch II 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling. Step 1. Attach the provided wood screw and Ceiling mounting Attach bracket safety cable... - Page 8 Step 2. Motor to Receiver Electrical Connections: (Fig. 14) Outlet box Connect the black wire from the fan to the White (neutral) Black (hot) black wire marked "TO MOTOR L" on the Green or bare receiver. copper (ground) Black ("AC IN L") White ("AC IN N") Connect the white wire from the fan to the white wire marked "TO MOTOR N"...
-
Page 9: Finishing The Installation
Monarch II 8. FINISHING THE INSTALLATION Outlet box Step 1. Tuck all the connections neatly into the ceiling outlet box. Ceiling mounting brackrt Step 2. Slide the canopy up to the mounting bracket and place one of the key hole slots... -
Page 10: Attaching The Fan Blades
9. ATTACHING THE FAN BLADES CAUTION: Remove the five rubber shipping blocks attached to the face of the motor. These blocks keep the motor from shifting during shipping and MUST be removed during installation. Step 1. Attach a blade to a blade bracket Screws using the screws and fiber washers provided. -
Page 11: Installing The Switch Housing
Monarch II 11. INSTALLING THE SWITCH HOUSING Step 1. While holding the switch housing under your ceiling fan, push the square wire connectors together. One from the fan and one from the switch housing. NOTE: These connectors are color coded and will ONLY engage when the colored strips are matched (aligned). -
Page 12: Installing The Batteries
12. INSTALLING THE BATTERIES Remove the battery compartment cover on the back of the CoolTouch™ Transmitter and insert both batteries provided. Make sure the + sign is facing up. Take care during this procedure NOT TO move the frequency dip switches inside this compartment. - Page 13 Monarch II 14. OPERATING INSTRUCTIONS The Black Slide Switch on the side of the switch housing controls the direction of the blades "Forward and Reverse". Warm weather - Forward (counter clockwise) A downward airflow creates a cooling effect as shown in Fig. 22. This allows you to set your air conditioner on a warmer setting without affecting your comfort.
-
Page 14: Installing The Cooltouch Control System Wall Plate
15. INSTALLING THE COOLTOUCH ™ CONTROL SYSTEM WALL PLATE Outlet box Switch Select a location to install your CoolTouch™ Wall plate Control System Transmitter. You can replace an existing wall switch or, install the transmitter on ANY flat surface. Option 1: Install the control system using an existing wall switch outlet box. -
Page 15: Troubleshooting
Monarch II 17. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the transmitter batteries are installed properly. Positive (+) side facing 4.
