Summary of Contents for Kichler Lighting Monarch II Select

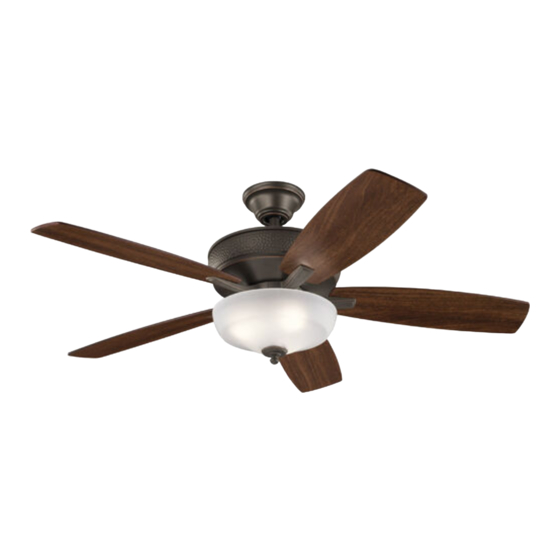

- Page 1 Monarch II Select ® ™ A Kichler Select ceiling fan Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Instruction Manual Cleveland, Ohio 44131-8010 Customer Service 866.558.5706 8:30 AM to 5:00 PM EST, Monday - Friday...
-
Page 2: Safety Rules
1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when electricity has been turned off at the circuit cleaning the fan or fan blades. A dry dust breaker or fuse box before beginning. cloth or lightly dampened cloth will be suitable for most cleaning. -
Page 3: Tools And Materials Required
Monarch II Select 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5) Canopy &... -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. -
Page 5: Hanging The Fan
Monarch II Select 5. HANGING THE FAN Ceiling mounting REMEMBER to turn off the power before you bracket begin. To properly install your ceiling fan, follow the Canopy steps below. Canopy Step 1. Remove the decorative canopy cover Fig. 5 bottom cover from the canopy by turning the cover counter clockwise. - Page 6 Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod. Hanger ball Downrod Thread the hanger ball onto the downrod, insert the cross pin through the downrod and Canopy tighten. Now tighten the set screw. (Fig. 9) Step 9.
-
Page 7: Installation Of Safety Support
Monarch II Select 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling. Step 1. Attach the provided wood screw and Ceiling mounting Attach bracket safety cable washers to the ceiling joist next to the to ceiling joist mounting bracket but do not tighten. - Page 8 Step 2. Motor to Receiver Electrical Connections: (Fig. 14) Outlet box Connect the black wire from the fan to the White (neutral) black wire marked "TO MOTOR L" on the Black (hot) receiver. Green or bare copper (ground) Connect the white wire from the fan to the Black ("AC IN L") White ("AC IN N") white wire marked "TO MOTOR N"...
-
Page 9: Finishing The Installation
Monarch II Select 8. FINISHING THE INSTALLATION Outlet box Step 1. Tuck all the connections neatly into the ceiling outlet box. Ceiling mounting brackrt Step 2. Slide the canopy up to the mounting bracket and place one of the key hole slots Screws over the mounting screw on the mounting bracket. -
Page 10: Attaching The Fan Blades
9. ATTACHING THE FAN BLADES CAUTION: Remove the five rubber shipping blocks attached to the face of the motor. These blocks keep the motor from shifting during shipping and MUST be removed during installation. Step 1. Attach a blade to a blade bracket Screws using the screws and fiber washers provided. -
Page 11: Installing The Light Fixture
Monarch II Select 11. INSTALLING THE LIGHT FIXTURE Step 1. Remove the plastic plug from the center of the switch housing. Attach the light Lock washer Wire connectors fixture to the switch housing by feeding the light fixture wires (black & white) through the Switch housing Plug hole in the center of the switch housing, then... - Page 12 12. INSTALLING THE LAMP & GLASS SHADE Step 1. Attach the lamp to the lamp holders applying even pressure to the lamp at each lamp holder. The lamp will pop into place. NOTE: Sometimes it helps to open the lamp holder by lifting the end.
-
Page 13: Installing The Batteries
Monarch II Select 13. INSTALLING THE BATTERIES Remove the battery compartment cover on the back of the CoolTouch™ Transmitter and insert both batteries provided. Make sure the + sign is facing up. Take care during this procedure NOT TO move the frequency dip switches inside this compartment. - Page 14 15. OPERATING INSTRUCTIONS The Black Slide Switch on the side of the switch housing controls the direction of the blades "Forward and Reverse". Warm weather - Forward (counter clockwise) A downward airflow creates a cooling effect as shown in Fig. 25. This allows you to set your air conditioner on a warmer setting without affecting your comfort.
-
Page 15: Installing The Cooltouch Control System Wall Plate
Monarch II Select 16. INSTALLING THE COOLTOUCH ™ CONTROL SYSTEM WALL PLATE Outlet box Switch Select a location to install your CoolTouch™ Wall plate Control System Transmitter. You can replace an existing wall switch or, install the transmitter on ANY flat surface. Option 1: Install the control system using an existing wall switch outlet box. -
Page 16: Troubleshooting
18. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
