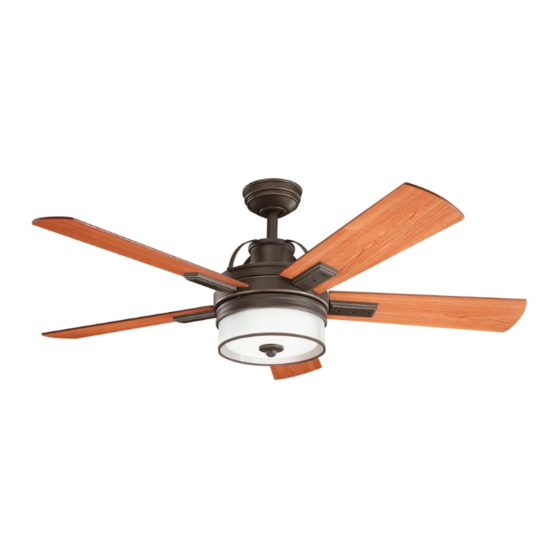

Kichler Lighting Lacey Instruction Manual
  1. Manuals
  2. Brands
  3. Kichler Lighting Manuals
  4. Fan
  5. Lacey
  6. Instruction manual

Kichler Lighting Lacey Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Kichler
®
Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
Designed to coordinate with a popular Kichler Lighting collection.
Includes our new
CoolTouch
6 Speed DC Control System
TM
Looks permanent, but goes wherever you go!
U.S. Patent Pending
Instruction Manual
Our High Efficiency DC Motor Technology
Requires 70% Less energy than a Standard
Ceiling Fan AC Induction Motor.
Lacey
TM
®
™
A Kichler
Décor
ceiling fan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lacey and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kichler Lighting Lacey

Summary of Contents for Kichler Lighting Lacey

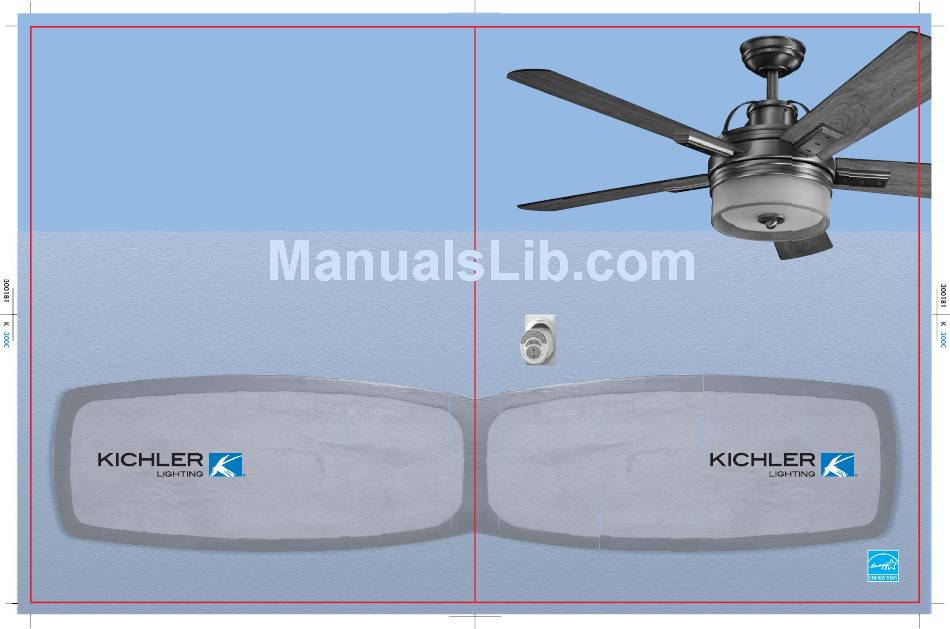

  • Page 1 Lacey ® ™ A Kichler Décor ceiling fan Designed to coordinate with a popular Kichler Lighting collection. Includes our new CoolTouch 6 Speed DC Control System Looks permanent, but goes wherever you go! U.S. Patent Pending Kichler ® Lighting 7711 East Pleasant Valley Road P.O.

  • Page 2: Safety Rules

    1. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. Avoid placing objects in the path of the electricity has been turned off at the circuit blades. breaker or fuse box before beginning. 9. To avoid personal injury or damage to the 2.

  • Page 3: Tools And Materials Required

    Lacey 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5) Ceiling mounting bracket...

  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing ETL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. Use appropriate fasteners and Outlet box building materials.

  • Page 5: Hanging The Fan

    Lacey 5. HANGING THE FAN ETL Listed outlet box RMEMEBER to turn off the power before you begin installation. This is necessary for your Washers Ceiling mounting safety and also the proper programing of the bracket control system. Hook Mounting screws...
  • Page 6 Step 5. Loosen the two set screws and Supply wires remove the hitch pin and retaining clip from Coupling the coupling on top of the motor assembly. Downrod (Fig. 8) Set screws Set screws Step 6. Carefully feed the electrical lead wires Hitch pin Retaining clip from the fan up through the downrod.

  • Page 7: Installation Of Safety Support

    Lacey 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please install it as follows. Ceiling mounting Attach bracket Step 1. Attach the provided wood screw and...

  • Page 8: Finishing The Installation

    8. FINISHING THE INSTALLATION Step 1. Tuck all the connections neatly into the ceiling outlet box. Step 2. Slide the canopy up to the mounting Outlet box bracket and place one of the key hole slots over the mounting screw on the mounting Ceiling bracket.

  • Page 9: Installing The Light Plate

    Lacey 10. INSTALLING THE LIGHT PLATE Step 1. Loosen the two screws on the mounting ring attached to the motor shaft and "remove" and save the third screw. (Fig. 15) Step 2. Place the key hole slots on the light plate over the two screws previously loosened on the mounting ring.
  • Page 10 12. INSTALLING THE LAMP AND GLASS SHADE Step 1. Attach the lamp to the lamp holders applying even pressure to the lamp at each lamp holder. The lamp will pop into place. NOTE: sometimes it helps to open the lamp holder by lifting the end.

  • Page 11: Control System Set-Up

    Make sure the power is completely disconnected before you begin this procedure. SPECIAL NOTE: ® Your new Kichler Ceiling Fan is State of the Art and employs a High Efficiency DC (direct current) Motor with an advanced CoolTouch™ Remote Control System. The DC Motor uses 70% less energy than a conventional ceiling fan AC Induction Motor.
  • Page 12 2. Insert both batteries and make sure they Blue Light are seated correctly in each recess with the Positive + sign facing up. Replace the battery cover. (Figure 20) 3. Test the transmitter by pushing and releasing ANY button briefly. A Blue Light should illuminate under the 3-4 buttons.
  • Page 13 Lacey 14. OPERATING INSTRUCTIONS: Speed Buttons Figure 23 1. Buttons 1, 2, 3, 4, 5 and 6 are used to set the blade speed as follows: 1 = Low Speed 2 = Medium Low Speed 3 = Medium Speed 4 = Medium High Speed...
  • Page 14 NOTE: Please remember your control system is an RF (Radio Frequency) control system. You may occasionally experience control problems because of other radio frequency interference, i.e. fan turns off, light turns off or won't turn on, speed changes, etc. If this should happen, just change the “Control Frequency”...

  • Page 15: Installing The Cooltouch Control System Wall Plate

    Lacey 15. INSTALLING THE COOLTOUCH ™ CONTROL SYSTEM WALL PLATE Outlet box Switch Select a location to install your CoolTouch™ Wall plate Control System Transmitter. You can replace an existing wall switch or, install the transmitter on ANY flat surface.

  • Page 16: Troubleshooting

    17. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
