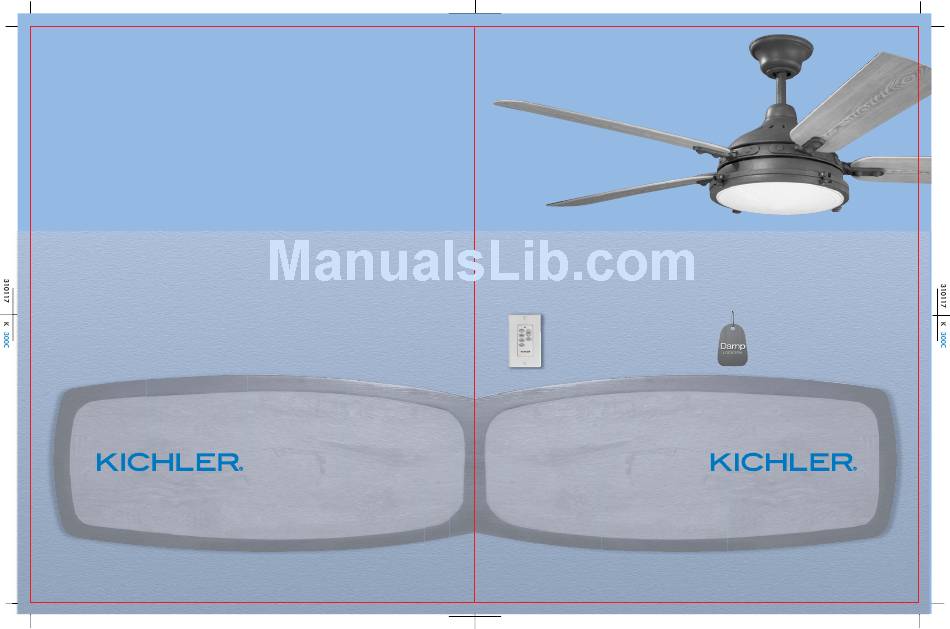

- Page 1 60" Hatteras Bay Patio A Kichler ® Décor ™ ceiling fan Includes our new Wall Control System Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service 866.558.5706 8:30 AM to 5:00 PM EST, Monday - Friday...
-
Page 2: Safety Rules
1. SAFETY RULES 1. To reduce the risk of electric shock, insure 9. To avoid personal injury or damage to the electricity has been turned off at the circuit fan and other items, be cautious when breaker or fuse box before beginning. working around or cleaning the fan. -
Page 3: Tools And Materials Required
60" Hatteras Bay Patio 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5) Canopy &... -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building Outlet box structure. -
Page 5: Hanging The Fan
60" Hatteras Bay Patio 5. HANGING THE FAN Screws NOTE: This ceiling fan is supplied with two types of hanging assemblies; a downrod and Screws Ceiling mounting canopy mounting system and a "close to bracket ceiling" Canopy ONLY system. The "close-to- ceiling"... - Page 6 Step 3. Carefully feed the electrical lead wires from the fan up through the downrod. Thread the downrod into the coupling until the Hitch pin holes are aligned. Registration slot Next, replace the hitch pin and retaining clip. Tighten both set screws. (Fig. 7) Check tab Step 4.
-
Page 7: Installation Of Safety Support
60" Hatteras Bay Patio 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please install Hanger bracket it as follows. Safety cable Step 1. Attach the provided wood screw and Attach safety cable to ceiling joist with washers to the ceiling joist next to the mounting... - Page 8 Connect the white wire from the fan to the Outlet box white wire marked "TO MOTOR N" on the receiver. Connect the blue wire from the fan White (neutral) Black (hot) to the blue wire marked "FOR LIGHT" on the Green or bare receiver.
- Page 9 60" Hatteras Bay Patio 8. FINISHING THE INSTALLATION STANTARD CEILING INSTALLATION Outlet box Step 1. Tuck all the connections neatly into Ceiling mounting bracket the ceiling outlet box. Step 2. Slide the canopy up to the ceiling and attach the canopy to the ceiling mounting Screws bracket using 4 screws at the top edge of the Canopy...
-
Page 10: Attaching The Fan Blades
9. ATTACHING THE FAN BLADES Step 1. Place a blade between a blade bracket and a blade bracket medallion. Attach all three pieces using the screws , fiber washers and iron washers provided. (Fig. 17) Screws Fiber washers Make sure the blade is straight when set on Iron washers Blade bracket the blade bracket and the medallion. -
Page 11: Installing The Light Plate
60" Hatteras Bay Patio 11. INSTALLING THE LIGHT PLATE Step 1. Loosen the three mounting screws on the inside of the light fixture and "remove" and save the fourth screw. (Fig. 19) Step 2. Hold the light plate close to the light fixture and connect the white wires from the light plate and the fan. -
Page 12: Installing The Batteries
13. INSTALLING THE BATTERIES Remove the face plate of the Wall Switch by lifting at the top and then insert the supplied 12V battery. Duracell MN21/Eveready A23/GP 23A all 12V. Replace the switch face plate. To prevent possible damage to the transmitter, remove these batteries if not used FAN OFF ON ECE... - Page 13 60" Hatteras Bay Patio 15. INSTALLING THE BASIC FUNCTION WALL CONTROL SYSTEM WALL Outlet box PLATE Switch Wall plate Select a location to install the Basic Function Wall Control System Transmitter and Wall Plate. RMEMEBER you can safely use the transmit- ter outdoors but it should be mounted indoors away from excess heat and away from con- tact with water or humidity.
- Page 14 16. OPERATING INSTRUCTIONS The Black Slide Switch on the side of the switch housing controls the direction of the blades "Forward and Reverse". Warm weather - Forward (counter clockwise) A downward airflow creates a cooling effect as shown in Fig. 25. This allows you to set your air conditioner on a warmer setting without affecting your comfort.
-
Page 15: Troubleshooting
60" Hatteras Bay Patio 17. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3.
