  • Page 2 1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when cleaning the fan or fan blades. A dry dust electricity has been turned off at the circuit breaker or fuse box before beginning. cloth or lightly dampened cloth will be suitable for most cleaning.

  • Page 3: Tools And Materials Required

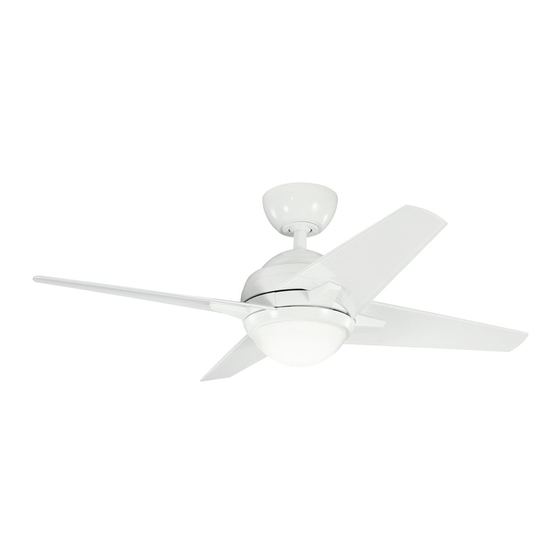

    Rivetta 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (4) Canopy & Ceiling mounting bracket Ball/downrod assembly Coupling cover &...
  • Page 4 4. MOUNTING OPTIONS If there isn't an existing ETL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. Use appropriate fasteners and Outlet box building materials.

  • Page 5: Hanging The Fan

    Rivetta 5. HANGING THE FAN RMEMEBER to turn off the power before you Ceiling mounting begin installation. This is necessary for your bracket safety and also the proper programing of the control system. Canopy To properly install your ceiling fan, follow the Canopy cover steps below.
  • Page 6 Step 7. Loosen the two set screws and Supply wires remove the hitch pin and retaining clip from the coupling on top of the motor assembly. Coupling Downrod (Fig. 9) Set screws Set screws Step 8. Carefully feed the electrical lead wires Hitch pin Retaining clip from the fan up through the downrod.

  • Page 7: Installation Of Safety Support

    Rivetta 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please Ceiling mounting install it as follows. Attach bracket safety cable Step 1. Attach the provided wood screw and...

  • Page 8: Finishing The Installation

    8. FINISHING THE INSTALLATION Step 1. Tuck all the connections neatly into the ceiling outlet box. Step 2. Slide the canopy up to the mounting Outlet box bracket and place one of the key hole slots over the mounting screw on the mounting Ceiling bracket.

  • Page 9: Installing The Light Plate

    Rivetta 10. INSTALLING THE LIGHT PLATE Step 1. Loosen the two screws on the mounting ring attached to the motor shaft and "remove" and save the third screw. (Fig. 16) Step 2. Place the key hole slots on the light plate over the two screws previously loosened on the mounting ring.
  • Page 10 12. INSTALLING THE LAMP AND GLASS SHADE Step 1. Install the 18 Watt GU24 compact fluorescent lamp (provided). (Fig. 18) Step 2. Raise the glass shade against the light fixture and turn clockwise until snug, DO NOT OVERTIGHTEN. (Fig. 18) Light fixture Lamp Glass shade...

  • Page 11: Control System Set-Up

    Make sure the power is completely disconnected before you begin this procedure. SPECIAL NOTE: ® Your new Kichler Ceiling Fan is State of the Art and employs a High Efficiency DC (direct current) Motor with an advanced CoolTouch™ Remote Control System. The DC Motor uses 70% less energy than a conventional ceiling fan AC Induction Motor.
  • Page 12 2. Insert both batteries and make sure they Blue Light are seated correctly in each recess with the Positive + sign facing up. Replace the battery cover. (Figure 20) 3. Test the transmitter by pushing and releasing ANY button briefly. A Blue Light should illuminate under the 3-4 buttons.
  • Page 13 Rivetta 15. OPERATING INSTRUCTIONS: Speed Buttons Figure 24 1. Buttons 1, 2, 3, 4, 5 and 6 are used to set the blade speed as follows: 1 = Low Speed 2 = Medium Low Speed 3 = Medium Speed 4 = Medium High Speed...
  • Page 14 NOTE: Please remember you control system is an RF (Radio Frequency) control system. You may occasionally experience control problems because of other radio frequency interference, i.e. fan turns off, light turns off or won't turn on, speed changes, etc. If this should happen, just change the “Control Frequency”...

  • Page 15: Installing The Cooltouch Control System Wall Plate

    Rivetta ™ 16. INSTALLING THE COOLTOUCH CONTROL SYSTEM WALL PLATE Outlet box Switch Select a location to install your CoolTouch™ Wall plate Control System Transmitter. You can replace an existing wall switch or, install the transmitter on ANY flat surface.

  • Page 16: Troubleshooting

    18. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
