Kichler
®
Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
Includes our new
CoolTouch
6 Speed DC Control System
TM
Looks permanent, but goes wherever you go!
U.S. Patent Pending
Instruction Manual
Our High Efficiency DC Motor Technology
Requires 70% Less energy than a Standard
Ceiling Fan AC Induction Motor.

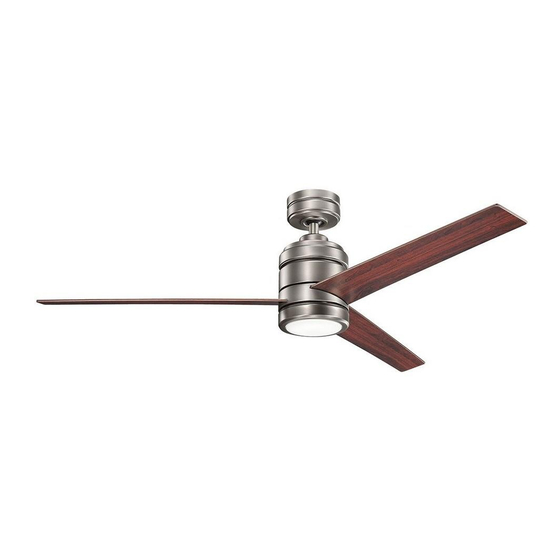

Arkwright
TM
A Kichler
®
Décor
™
ceiling fan
HIGH
EFFICIENCY
DC
MOTOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Arkwright and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kichler Lighting Arkwright

Summary of Contents for Kichler Lighting Arkwright

  • Page 1 Arkwright A Kichler ® Décor ™ ceiling fan Includes our new HIGH CoolTouch 6 Speed DC Control System EFFICIENCY Looks permanent, but goes wherever you go! MOTOR U.S. Patent Pending Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010...

  • Page 2: Safety Rules

    1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when cleaning the fan or fan blades. A dry dust electricity has been turned off at the circuit breaker or fuse box before beginning. cloth or lightly dampened cloth will be suitable for most cleaning.

  • Page 3: Tools And Materials Required

    Arkwright 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Canopy & Ceiling mounting bracket...

  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing ETL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. Use appropriate fasteners and Outlet box building materials.

  • Page 5: Hanging The Fan

    Arkwright 5. HANGING THE FAN REMEMBER to turn off the power before you Ceiling mounting bracket begin. To properly install your ceiling fan, follow the Canopy steps below. Step 1. Remove the decorative canopy bottom Canopy cover cover from the canopy by turning the cover Fig.
  • Page 6 Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod. Cross pin Hanger ball Hanger ball Thread the hanger ball onto the downrod, insert the cross pin through the downrod and Downrod tighten. Now tighten the set screw. (Fig. 9) Canopy Step 9.

  • Page 7: Installation Of Safety Support

    Arkwright 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please Ceiling mounting install it as follows. Attach bracket safety cable to ceiling joist Step 1. Attach the provided wood screw and...

  • Page 8: Finishing The Installation

    8. FINISHING THE INSTALLATION Step 1. Tuck all the connections neatly into the ceiling outlet box. Step 2. Slide the canopy up to the mounting Outlet box bracket and place one of the key hole slots over the mounting screw on the mounting Ceiling bracket.

  • Page 9: Installing The Light Plate

    Arkwright 10. INSTALLING THE LIGHT PLATE Step 1. Loosen the two screws on the mounting ring attached to the motor shaft and "remove" and save the third screw. (Fig. 15) Step 2. Place the key hole slots on the light plate over the two screws previously loosened on the mounting ring.
  • Page 10 12. INSTALLING THE DECORATIVE BOTTOM COVER Raise the decorative bottom cover against the bottom cover mounting plate and turn clockwise until snug. (Fig. 17) Bottom cover mounting plate Decorative bottom cover Fig. 17...

  • Page 11: Control System Set-Up

    Make sure the power is completely disconnected before you begin this procedure. SPECIAL NOTE: ® Your new Kichler Ceiling Fan is State of the Art and employs a High Efficiency DC (direct current) Motor with an advanced CoolTouch™ Remote Control System. The DC Motor uses 70% less energy than a conventional ceiling fan AC Induction Motor.
  • Page 12 2. Insert both batteries and make sure they Blue Light are seated correctly in each recess with the Positive + sign facing up. Replace the battery cover. (Figure 18) 3. Test the transmitter by pushing and releasing ANY button briefly. A Blue Light should illuminate under the 3-4 buttons.
  • Page 13 Arkwright 14. OPERATING INSTRUCTIONS: Speed Buttons Figure 22 1. Buttons 1, 2, 3, 4, 5 and 6 are used to set the blade speed as follows: 1 = Low Speed 2 = Medium Low Speed 3 = Medium Speed 4 = Medium High Speed...
  • Page 14 NOTE: Please remember your control system is an RF (Radio Frequency) control system. You may occasionally experience control problems because of other radio frequency interference, i.e. fan turns off, light turns off or won't turn on, speed changes, etc. If this should happen, just change the “Control Frequency”...

  • Page 15: Installing The Cooltouch Control System Wall Plate

    Arkwright ™ 15. INSTALLING THE COOLTOUCH CONTROL SYSTEM WALL PLATE Outlet box Switch Select a location to install your CoolTouch™ Wall plate Control System Transmitter. You can replace an existing wall switch or, install the transmitter on ANY flat surface.

  • Page 16: Troubleshooting

    17. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.

  • Page 17: Specifications

    Arkwright 18. SPECIFICATIONS 300146 Arkwright Fan with 370025 Blade Set Fan Size Speed Volts Amps Watts CFM/W N.W. G.W. C.F. 0.17 13.00 2434.98 187.31 Extra-High 38" 0.13 8.80 2001.11 227.40 High 5.82 7.33 0.10 6.30 1634.42 259.43 1.12' Medium High 0.08...
  • Page 18 300146 Arkwright Fan with 370028 Blade Set Fan Size Speed Volts Amps Watts CFM/W N.W. G.W. C.F. 0.17 10.90 2550.87 234.02 Extra-High 38" 0.13 8.20 2099.20 256.00 High 7.56kg 9.07 1.12' 0.10 6.30 1716.52 272.46 Medium High 0.08 4.20 1344.42 320.10...
