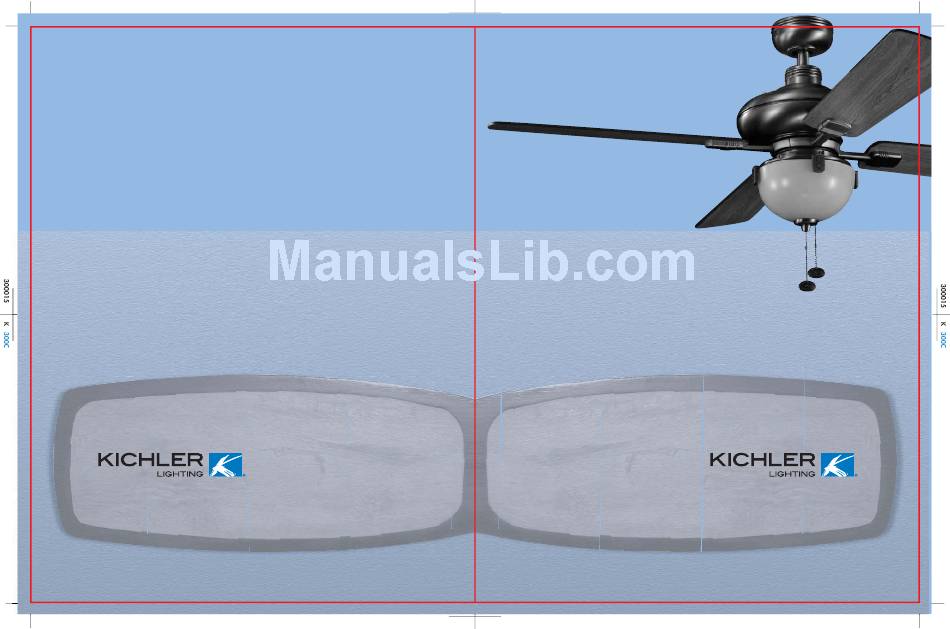

- Page 1 Bronson ® ™ A Kichler Select ceiling fan Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service 866.558.5706 8:30 AM to 5:00 PM EST, Monday - Friday...
-
Page 2: Safety Rules
1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when electricity has been turned off at the circuit cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be breaker or fuse box before beginning. -
Page 3: Tools And Materials Required
Bronson 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (4) Canopy & Ceiling mounting bracket... -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. -
Page 5: Hanging The Fan
Bronson 5. HANGING THE FAN Ceiling mounting REMEMBER to turn off the power before you bracket begin. Canopy To properly install your ceiling fan, follow the steps below. Canopy cover Step 1. Remove the decorative canopy bottom Fig. 5 cover from the canopy by turning the cover counter clockwise. - Page 6 Step 8. Slip the coupling cover, canopy cover Hanger ball and canopy onto the downrod. Downrod Canopy Thread the hanger ball onto the downrod, insert the cross pin through the downrod and tighten. Now tighten the set screw. (Fig. 9) Canopy cover Step 9.
-
Page 7: Installation Of Safety Support
Bronson 6. INSTALLATION OF SAFETY SUPPORT (for Canadian Installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please install it as follows. Ceiling mounting Attach bracket safety cable Step 1. Attach the provided wood screw and... -
Page 8: Finishing The Installation
8. FINISHING THE INSTALLATION Step 1. Tuck all the connections neatly into the ceiling outlet box. Outlet box Step 2. Slide the canopy up to ceiling and over Ceiling mounting bracket the two screws on hanger bracket. Rotate canopy clockwise, next, while holding the Screws canopy with one hand, slide the canopy cover over the screws and rotate clockwise until... -
Page 9: Installing The Mounting Plate
Bronson 10. INSTALLING THE MOUNTING PLATE 1. Loosen the two screws on the mounting ring attached to the motor shaft and "remove" and save the third screw. (Fig. 15) 2. Place the key holes on the mounting plate over the 2 screws previously loosened from... -
Page 10: Installing The Light Bulbs & Glass Shade
12. INSTALLING THE LIGHT BULBS & GLASS SHADE 1. Install 3, 40W candelabra bulbs (included). 2. Slip the beaded pull chain into the outside hole in the glass shade then through the hole on the side of the decorative glass cap. 3. - Page 11 Bronson 13. OPERATING INSTRUCTIONS Turn the power on and check the operation of your ceiling fan. The "center" pull chain turns the light fixture On and Off. The "outside" pull chain controls the 3 speeds of your ceiling fan. 1 pull = High, 2 pulls = Medium, 3 pulls = Low Fig.
-
Page 12: Troubleshooting
14. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check that all fuses or circuit breakers are installed or in the ON position. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. Fan sounds noisy.
