SpectraPure
(2) TDS
Monitors
Tap Water
Connection
"Black line"
.5 micron
MicroTec™
Sediment
Prefilter
(SF-MT-.5-10)
.5 micron
Carbon Block
Prefilter
(CF-.5 -10)
BLACK LINE: Tap Water Input to system. (Supplied with garden hose adapter)
BLUE LINE: Product Water. (Automate the product water with Liquid Level Controllers)
YELLOW LINE: Concentrated Waste Water. (Goes to drain. Use a drain saddle to
connect to drain pipe)
DETERMINE THE VERSION OF YOUR SYSTEM:
Look down at the top of your system. If there is a short length of red tubing
attached to the yellow drain tubing, then you have the new configuration
that does not need adjustment. You can turn to page 11, METERING AND
DIAGNOSTICS. See below:
SpectraPure
6

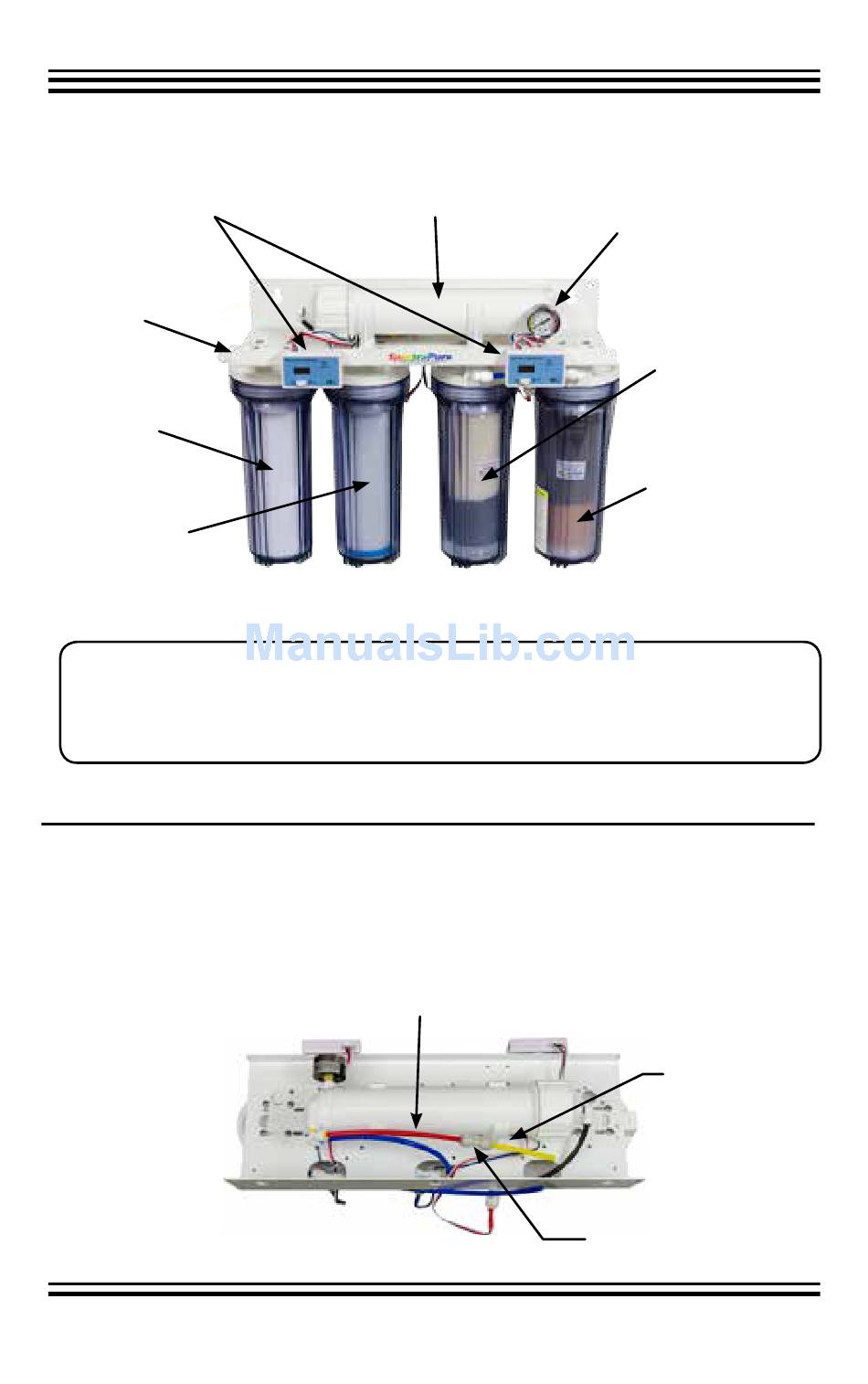

Fig. A: System Components
TFC RO Membrane
(MEM-0090)
Red tube with Flow Restrictor inside
Inc.
®
480.894.5437 Call us toll-free 1.800.685.2783
2167 East Fifth St, Tempe, Arizona 85281
®
Pressure
Guage
DI Cartridge #1
DI-MC-10
"MaxCap
®
DI Cartridge #2
DI-SB-10
"SilicaBuster™"
Yellow Drain
Line
Union Connector
"
