MaxPure MPDI™ RO/DI System
(90 & 180 GPD)
Reverse Osmosis/Deionization
Water Purification Systems
INSTALLATION AND OPERATING MANUAL
WARNING
Please read carefully before proceeding with installation. Failure to
follow any attached instructions or operating parameters may lead to
the product's failure and possible damage to property.
v5 2015-08-24
Advertisement
Table of Contents
Related Manuals for SpectraPure MaxPure MPDI-90 GPD
Summary of Contents for SpectraPure MaxPure MPDI-90 GPD

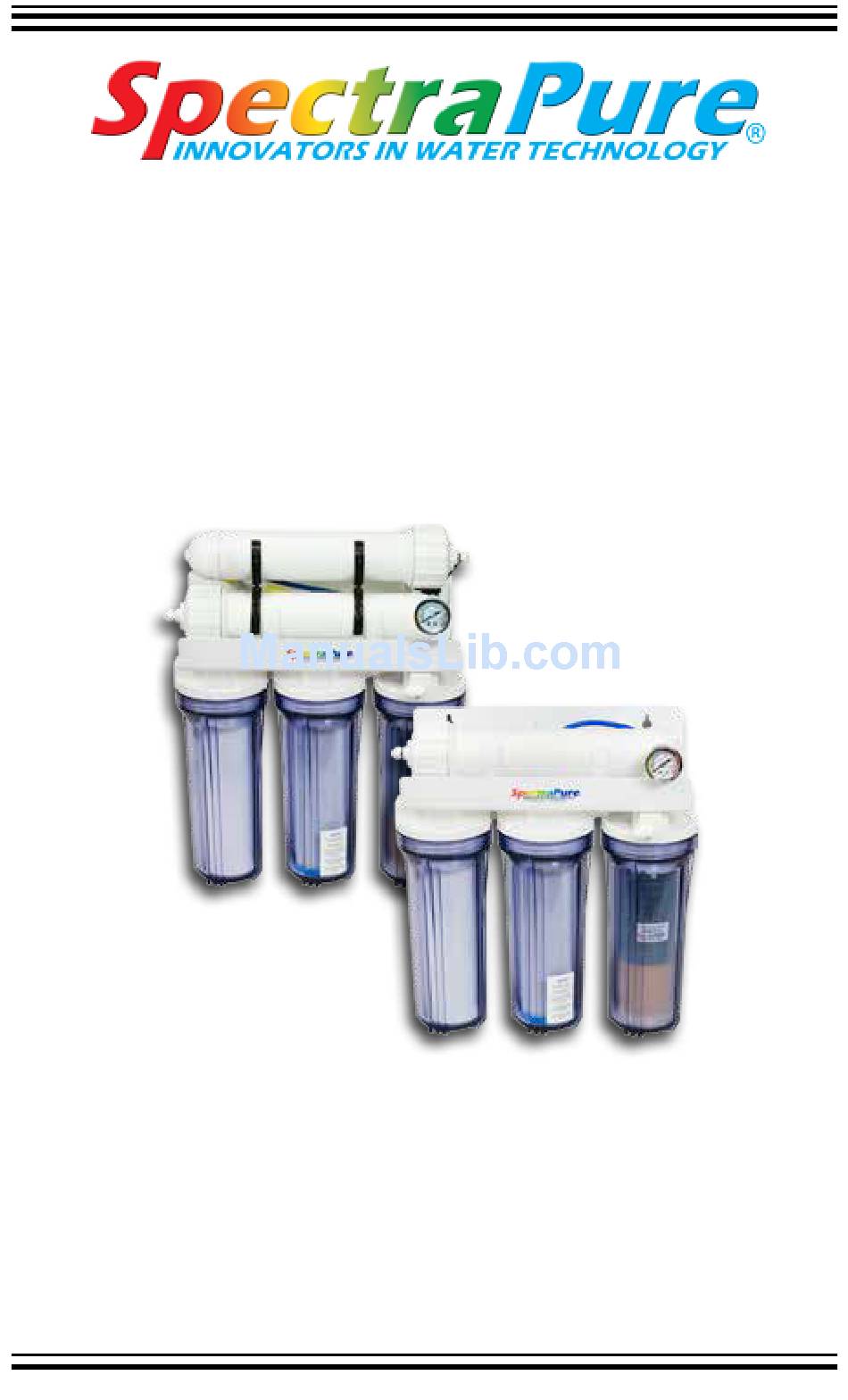

- Page 1 MaxPure MPDI™ RO/DI System (90 & 180 GPD) Reverse Osmosis/Deionization Water Purification Systems INSTALLATION AND OPERATING MANUAL WARNING Please read carefully before proceeding with installation. Failure to follow any attached instructions or operating parameters may lead to the product’s failure and possible damage to property. v5 2015-08-24...
-
Page 2: Table Of Contents
Three Year Limited Warranty ................18 Optional Accessories ..................19 Storage ........................19 Replacement Parts ....................20 Warning: SpectraPure does not recommend drinking deionized water. COPYRIGHT 2002-2015© BY SPECTRAPURE INC ALL RIGHTS RESERVED No part of this publication may be reproduced, stored in a retrieval... -
Page 3: Introduction
• Housing wrench for easy filter removal • Garden hose adapter for feed water hookup • 3-year warranty Thank You for your purchase of a SpectraPure System. With proper installation ® and maintenance, this system will provide you with high quality water for years to come. -
Page 4: System Specifications
SpectraPure ® SYSTEM SPECIFICATIONS: Sediment Prefilter 1 micron MicroTec™ sediment prefilter (SF-MT-1-10) Carbon Filter 1 micron carbon block prefilter (CF-1-10) DI Cartridge SilicaBuster™ Color-Indicating DI Cartridge (DI-SB-CI-10) RO Membrane Type Thin-Film Composite (TFC) Rejection Rate 98% average Input Water Pressure 60 psi (4.15 bar) line pressure*... -
Page 5: General System Description
SilicaBuster™ Color-Indicating DI Cartridge (DI-SB-CI-10), however, you may replace it with our new SilicaBuster™ Extended Life Super DI Color- Indicating Cartridge (DI-SB-CI-10HC). SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 6: Single Membrane Ro/Di System Front View
SpectraPure ® SINGLE MEMBRANE RO/DI SYSTEM - FRONT VIEW MPDI - 90 GPD: BE SURE TO CONNECT BLACK TUBING AND ELBOW TO END OF MEMBRANE HOUSING TFC RO Membrane & Housing Pressure Gauge BLACK 1/4" Product Tap Water Water Tubing... -
Page 7: Single Membrane Ro/Di System Top View
RED 1/4" Tubing and Flow Restrictor YELLOW 1/4" BLUE 1/4" Waste Water RO Water Tubing Tubing Attaches Attaches Here to Blue Collar Here SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 8: Working With Push Fittings
SpectraPure ® WORKING WITH PUSH FITTINGS: Push fittings are very reliable and convenient tubing connectors. To remove the tubing from its push fitting: 1. Firmly depress and hold the push fitting collar down with your thumbnail. 2. While the push fitting collar is depressed, pull the tubing straight out of the push fitting. -
Page 9: System Installation & Initialization
14. Finish the installation by directing or connecting the yellow line to a permanent drain. NOTE: It may take several days of normal operation for the membrane to reach its full production rate. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 10: Sediment Prefilter Replacement
SpectraPure ® SEDIMENT PREFILTER REPLACEMENT: A Sediment Filter will usually last approx. 4-6 months, depending on the quality of the tap water and quantity of water being produced. (The life span of the filter is determined by the turbidity, iron content, organics, and total particulate volume in your water source). -
Page 11: Carbon Block Filter Replacement
NOTE: Do not use filter wrench to tighten housings. Over-tightening will damage housings and void your warranty. 6. Turn on system water supply and check for leaks. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 12: Di Cartridge Replacement
SpectraPure ® DI CARTRIDGE REPLACEMENT: Without a TDS meter, you will have to determine when to replace the DI cartridge. Monitor the color-changing DI resin for exhaustion. The resin will start to change color at the indicator label on the cartridge. The color change will grow upward and should indicate exhaustion when the color change gets to the top of the cartridge. -
Page 13: Ro Membrane Diagnostics
TDS in the above procedure is measured in ppm or mg/l. Important: Test the quality of the membrane once every 6 months. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 14: Membrane Production Calculation
SpectraPure ® Rejection of the RO Membrane Calculation Example 1. Tap water TDS = 150 ppm (X) 2. RO water TDS = 15 ppm (Y) 3. X - Y = 135 ppm 4. (X - Y) ÷ X = 135 ÷ 150 = 0.90 5. -
Page 15: Tips For Long Membrane Life
3. Membrane should not be operated at lower than the minimum 3 :1 concentrate to purified water ratio. 4. Operating reverse osmosis systems on softened feed water greatly reduces the chances of membrane fouling. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 16: Troubleshooting Guide
SpectraPure ® TROUBLESHOOTING GUIDE: Low production rate: a. plugged prefilters. i. Replace prefilters. b. low water temperature ii. Warm feed water OR use higher GPD membrane. c. low line pressure. iii. Use booster pump OR use higher GPD membrane. d. high TDS content. -
Page 17: Terms And Conditions
10 days. Returns other than warranty claims may be subject to 20% restocking fee. SpectraPure, Inc. cannot be held liable for damage or loss to a shipment by a freight carrier. Check shipment for damage before acceptance or note on freight bill subject to inspection for concealed damage. -
Page 18: Three Year Limited Warranty
® and workmanship for a period of three years from the date of receipt. SpectraPure’s liability under this warranty shall be limited to repairing or replacing at SpectraPure’s option, without charge, F.O.B. -
Page 19: Optional Accessories
1. It is recommended that you store your RO System in a cool and dark place when not being used. 2. Your RO System must always be protected from freezing or temperatures above 113° F (45°C). SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 20: Replacement Parts
10 Replacement Tabs for Chlorine Test Kit BPHF-MO-115 115V Booster Pump Kit for 60,90,180 gpd Systems BPHF-MO -230 230V Booster Pump Kit for 60,90,180 gpd Systems Warning: SpectraPure does not recommend drinking deionized water. SpectraPure Inc. ® 480.894.5437 Call us toll-free 1.800.685.2783...
