MaxCap
MaxCap
(Single (-90) or Dual (-180) Membrane Models)
Reverse Osmosis/Deionization
INSTALLATION AND OPERATING MANUAL
Please read carefully before proceeding with installation. Failure to
follow any attached instructions or operating parameters may lead
to the product's failure and possible damage to property.
REV_5 2015-08 -24
MC- RODI - MF (manual flush)
®
MC- RODI - AF (automatic flush)
®
Water Purification Systems
WARNING
Advertisement
Table of Contents
Troubleshooting
Related Manuals for SpectraPure MaxCap MC-RODI-180-MF
Summary of Contents for SpectraPure MaxCap MC-RODI-180-MF

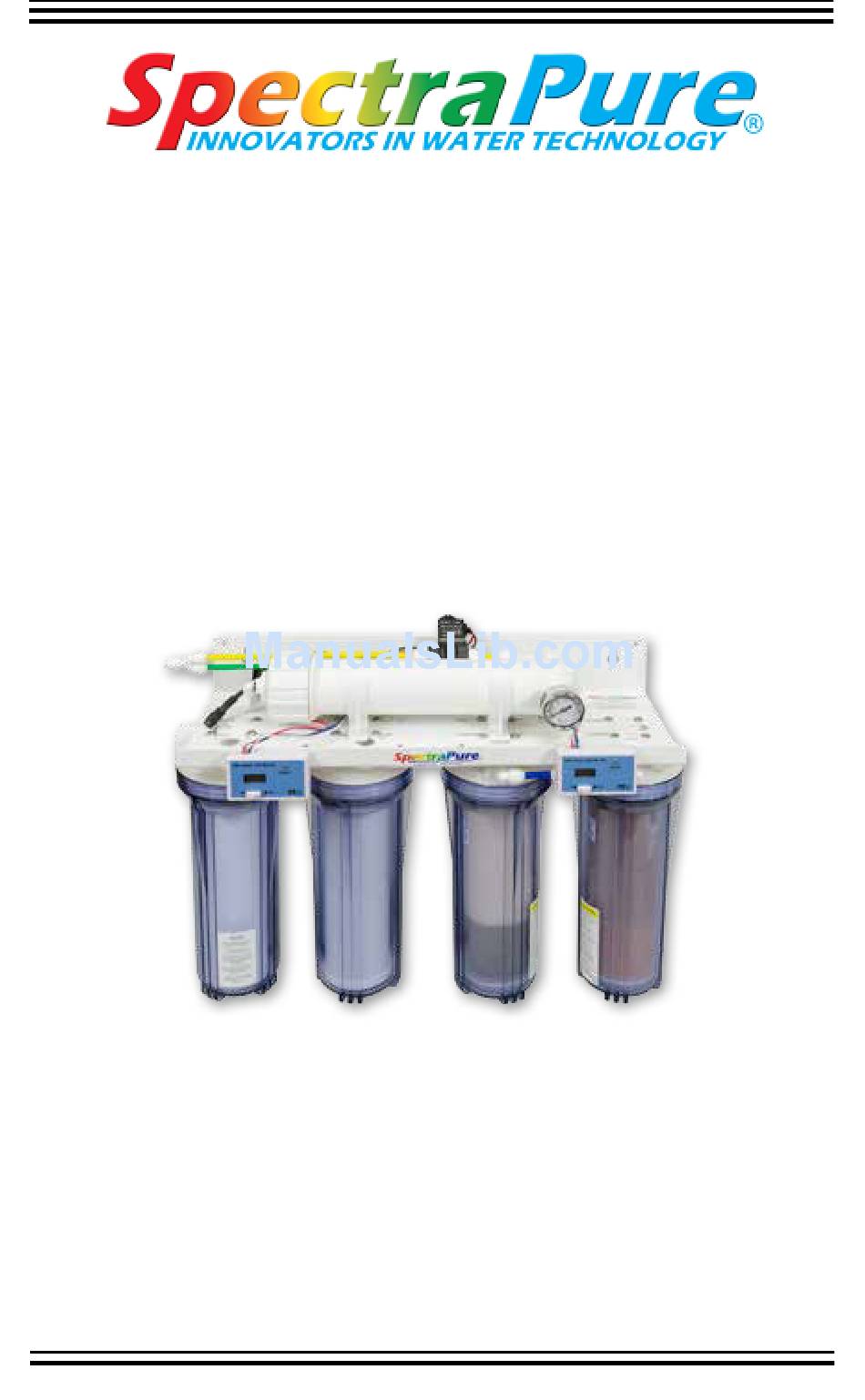

- Page 1 MaxCap MC- RODI - MF (manual flush) ® MaxCap MC- RODI - AF (automatic flush) ® (Single (-90) or Dual (-180) Membrane Models) Reverse Osmosis/Deionization Water Purification Systems INSTALLATION AND OPERATING MANUAL WARNING Please read carefully before proceeding with installation. Failure to follow any attached instructions or operating parameters may lead to the product’s failure and possible damage to property.
-
Page 2: Table Of Contents
ALL RIGHTS RESERVED No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written permission of SpectraPure Inc. SpectraPure Inc. -
Page 3: System Features
• 3-year warranty Warning: SpectraPure does not recommend drinking deionized water. Thank You for your purchase of a SpectraPure System. With proper installation ® and maintenance, this system will provide you with high quality water for years to come. All SpectraPure products are rigorously tested by us for ®... -
Page 4: System Specifications
Recovery Rate 33% (i.e. 33% of the water will be collected as pure water) Dimensions: MaxCap MC-RODI-180-MF (-AF) 20" W x 16" H x 7" D (Two Membranes) MaxCap MC-RODI-90-MF (-AF) 20" W x 16" H x 7" D (One Membrane) Nominal Membrane Flow Rates @ 60 psi, 77°... -
Page 5: General System Description
SilicaBuster Super DI cartridge will process 2400 gallons of pure DI water. It would have taken as many as ten standard mixed-bed cartridges to produce the same amount of pure DI water. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... - Page 6 SpectraPure ® The MaxCap RODI system comes equipped with two Dual Inline TDS ® monitors. The two TDS meters can monitor every step in the purification process. The IN probe of the left side meter shows the tap water TDS. The OUT probe of the left-side meter shows the RO water TDS.
-
Page 7: Working With Push Fittings
O -ring. Turn off the system water supply and reseat the tubing as described above. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 8: Front View Of Maxcap Mc-Rodi-90 System
SpectraPure ® SINGLE MEMBRANE, DUAL-DI RO/DI SYSTEM MaxCap MC- RODI-90 : ® BE SURE TO CONNECT BLACK TUBING AND ELBOW TO END OF MEMBRANE HOUSING Dual-Probe TDS Meter Dual-Probe TDS Meter IN = Tap Water IN = DI-MC Water OUT = RO Water... -

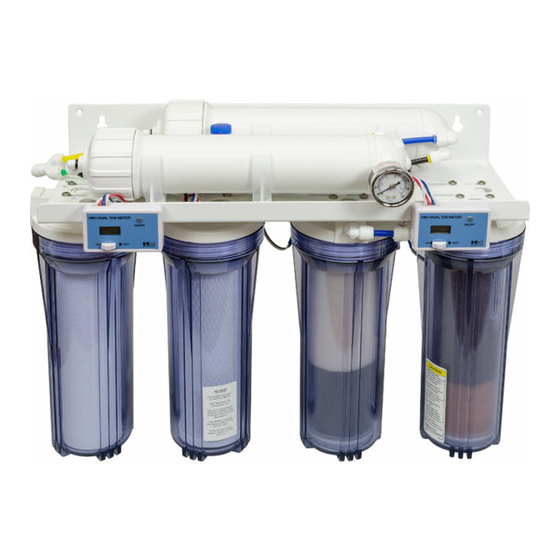

Page 9: Front View Of Maxcap Mc-Rodi-180 System
SilicaBuster™ High-Capacity (SF-MT-0.5-10) Extended Life MaxCap ® Super DI Extended Life (DI-SB-10HC) Super DI 0.5 micron (DI-MC-10HC) Carbon Block Filter (CF-0.5 -10) SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 10: Typical Rear Views For -Af Systems
SpectraPure ® REAR VIEWS for - AF SYSTEMS: Pressure Control Module Solenoid Valve Switch (AFC-01) Waste Yellow Drain Tubing Connection for 2.1 mm female Mini Plug connection Booster Pump for power supply. If using Booster (BPHF-AF-115) Pump, you must use a 24VDC, 2.5A (Black-Black) Power Supply here. -
Page 11: Typical Rear Views For -Mf Systems
Red (or Green) (Closed Position) Tubing Open to Flush NOTE: If Flush Valve is OPEN, product water cannot be produced. DUAL MEMBRANE SYSTEM SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 12: System Installation & Initialization
SpectraPure ® SYSTEM INSTALLATION & INITIALIZATION: 1. Most of the components of this system are plastic and are subject to damage by ultraviolet light from the sun and other sources such as metal halide lighting. 2. Avoid installing this unit in an area where it may be subjected to bright light or direct sunlight, as algae is more likely to thrive inside the clear filter housings when exposed to bright light. -
Page 13: Install The Float Valve
22. Check the system to ensure that all fittings are tight and leak-free before leaving the system unattended. (If anything is leaking, contact SpectraPure for assistance.) 23. It may take several days of normal operation for the membrane to reach its full production rate. -
Page 14: Float Valve Illustration
SpectraPure ® FLOAT VALVE ILLUSTRATION: HOW IT WORKS: The increasing water level raises the Float Valve in the reservoir and stops the flow of water. Pressure builds up in the product line and ASO Valve until the ASO Valve shuts off the flow of waste water to drain. This “OFF”... -
Page 15: Flow Restrictors And Test Strips
In hard water conditions, you may use the GREEN FR to save water, but the RO membrane will not last as long, as it will plug up with hardness much more quickly. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 16: The Manual Flush Valve (-Mf Versions)
SpectraPure ® THE MANUAL FLUSH VALVE (-MF Versions): The Manual Flush Valve is located in parallel with the flow restrictor (see page 11) and, when opened, provides a high-flow bypass of waste water used to purge concentrated brine from the membrane housing and rapidly flush any particulates from the membrane surface. -
Page 17: Metering And Diagnostics
SpectraPure ® METERING AND DIAGNOSTICS: This SpectraPure purification system has been fully equipped with sufficient instrumentation to make monitoring and troubleshooting an easy process. The provided pressure gauge is used to determine the tap water pressure and to evaluate the condition of the sediment and carbon prefilters. The pressure will drop as the prefilters become clogged by dirt [turbidity] from the tap water. -
Page 18: Using The Pressure Gauge
SpectraPure ® USING THE PRESSURE GAUGE: The pressure gauge is used to monitor the condition of the Sediment and Carbon Prefilters. With the Sediment and Carbon filters removed, the gauge will indicate the “actual” tap water input pressure. When the prefilters are “new”, the pressure shown on the gauge will be slightly less than the... -
Page 19: Sediment Prefilter Replacement
NOTE: Do not use filter wrench to tighten housings. Over-tight- ening will damage housings and void your warranty. 6. Proceed with carbon block filter replacement. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 20: Carbon Block Filter Replacement
SpectraPure ® CARBON BLOCK FILTER REPLACEMENT: A Carbon Filter will usually lasts 4-6 months ,depending on the chlorine (or chloramine) content of your tap water and quantity of water being produced. The best way to determine when your Carbon Block Prefilter needs replacement is to use a chlorine test kit. -
Page 21: Maxcap Super Di Replacement
Tighten the cartridge housing by rotating it clockwise and hand tighten. Turn on system and check for leaks. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 22: Ro Membrane Replacement
SpectraPure ® RO MEMBRANE REPLACEMENT: 1. Turn off the water supply to the RO system. Place the system where the membrane housing(s) can be easily accessed. 2. Remove the black tubing from the membrane feed push fitting by depressing the collar on the fitting with your thumb and pulling the tubing from the push fitting. -
Page 23: Ro Membrane Diagnostics
TDS in the above procedure is measured in ppm or mg/l. Important: Test the quality of the membrane once every 6 months. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 24: Membrane Production Calculation
SpectraPure ® Rejection of the RO Membrane Calculation Example 1. Tap water TDS = 150 ppm (X) 2. RO water TDS = 15 ppm (Y) 3. X - Y = 135 ppm 4. (X - Y) ÷ X = 135 ÷ 150 = 0.90 5. -
Page 25: Tips For Long Membrane Life
3. Membrane should not be operated at lower than the minimum 2:1 concentrate to purified water ratio. 4. Operating reverse osmosis systems on softened feed water greatly reduces the chances of membrane fouling. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 26: Membrane Troubleshooting Guide
SpectraPure ® SANITIZING SYSTEM: (It is recommended that you sanitize the system once a year.) 1. Turn tap water source off and remove all filters from the system, including the RO membrane. 2. Mix together hot water, soap and a little bleach. -
Page 27: System Troubleshooting Guide
Plugged pressure iii. Clean orifice with a needle. gauge orifice. d. Defective pressure iv. Replace it. gauge. (continued on next page) SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... - Page 28 SpectraPure ® Low deionization cartridge life: a. Defective membrane. i. Replace it. b. Low pressure (<40 psi). ii. Use booster pump. c. High CO2 levels in iii. Aerate RO product water. water (> 5 ppm) d. High TDS in feed water iv.
-
Page 29: Terms And Conditions
10 days. Returns other than warranty claims may be subject to 20% restocking fee. SpectraPure, Inc. cannot be held liable for damage or loss to a shipment by a freight carrier. Check shipment for damage before acceptance or note on freight bill subject to inspection for concealed damage. -
Page 30: Three Year Limited Warranty
® THREE YEAR LIMITED WARRANTY: SpectraPure, Inc.® warrants the product to the original owner only to be free of defects in material and workmanship for a period of three years from the date of receipt. SpectraPure’s liability under this warranty shall be limited to repairing or replacing at SpectraPure’s option, without charge, F.O.B. -
Page 31: Optional Accessories
Add a second or multiple float valves to your existing system. Notice: Drinking water add-on kits and bladder tanks are not compatible with Automatic Flush (AF) systems. SpectraPure Inc . ® Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 32: Replacement Parts
FAU-SNP Quick Connect Faucet Adapter TK-CL -10- KIT Total Chlorine Test Kit TK- CL -10TABS 10 Replacement Tabs for Chlorine Test Kit Warning: SpectraPure does not recommend drinking deionized water. SpectraPure Inc. ® 480.894.5437 Call us toll-free 1.800.685.2783 2167 East Fifth St, Tempe, Arizona 85281...
