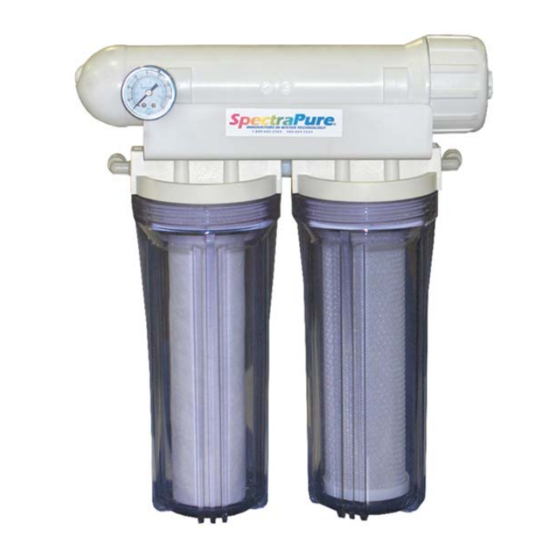

The MPRO™ RO System
Reverse Osmosis Water Purification System
(Single and Dual Membrane Models)
INSTALLATION AND OPERATING MANUAL
WARNING
Please read carefully before proceeding with installation. Failure to
follow any attached instructions or operating parameter may lead to
the product's failure and possible damage to property.
REV 04-01-2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPRO RO System and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SpectraPure MPRO RO System

Summary of Contents for SpectraPure MPRO RO System

  • Page 1 The MPRO™ RO System Reverse Osmosis Water Purification System (Single and Dual Membrane Models) INSTALLATION AND OPERATING MANUAL WARNING Please read carefully before proceeding with installation. Failure to follow any attached instructions or operating parameter may lead to the product’s failure and possible damage to property. REV 04-01-2010...

  • Page 2: Table Of Contents

    ® SpectraPure TABLE OF CONTENTS: Thank You for your purchase of a SpectraPure® System. With proper installation and maintenance, this system will provide you with high quality water for years to come. All SpectraPure® products are rigorously tested by us for safety and reliability. If you have any questions or concerns, please contact our customer service department at 1.800.685.2783 or refer to our...

  • Page 3: Terms And Conditions

    10 days. Returns other than warranty claims may be subject to 20% restocking fee. 8. SpectraPure, Inc. Cannot be held liable for damage or loss to a shipment by a freight carrier. Check shipment for damage before acceptance or note on freight bill subject to inspection for concealed damage.

  • Page 4: Warranty Information

    Effective on products purchased after March 10, 2005. SpectraPure, Inc.® warrants the product to the original owner only to be free of defects in material and workmanship for a period of three years from the date of receipt. SpectraPure’s liability under this warranty shall be limited to repairing or replacing at SpectraPure’s option, without charge, F.O.B.

  • Page 5: What Is Reverse Osmosis

    WHAT DOES THE SYSTEM DO? SpectraPure’s MPRO™ RO System uses household water pressure to reverse a natural physical process called osmosis. Water, under pressure is forced through a semi-permeable membrane where minerals and impurities are screened out and sent down the drain with waste water.

  • Page 6: System Specifications

    ® SpectraPure SYSTEM SPECIFICATIONS: Sediment Pre-Filter 0.5 micron MicroTec™ sediment pre-filter Carbon Filter 0.5 micron carbon block pre-filter RO Membrane Type Thin-Film Composite (TFC) Rejection Rate Greater than 96% average Input Water Pressure 60 psi (4.15 bar) line pressure* Input Water Temp 77°F (25°C)

  • Page 7: System Description

    TFC RO Gauge Membrane (MEM-00xx) Tap Water “INPUT” (From Garden Hose Adapter) 0.5 micron MicroTec™ 0.5 micron Sediment Pre-Filter Carbon Block (SF-MT-0.5-10) Filter (CF-0.5-10) SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...
  • Page 8 ® SpectraPure SINGLE MEMBRANE SYSTEM- FIGURE B DUAL MEMBRANE SYSTEM- FIGURE C SpectraPure®Inc. 480.894.5437 Call us toll-free 1.800.685.2783 2167 East Fifth St, Tempe, Arizona 85281...

  • Page 9: System Initialization

    (LLC-M-115) or the Auto Shut-Off Kit (ASOFK). SpectraPure®Inc Assumes no responsibility for water damage due to leaks. It is the user’s responsibility to determine that the system is leak-free. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...

  • Page 10: Measuring Waste To Product Water Ratio

    System. Failure to perform this procedure can permanently damage the membrane and will void Warranty. In order to maximize the life of your SpectraPure RO Membrane, you may need to adjust the ratio of the concentrate to purified water. If not enough concentrate is allowed to flow past the membrane during operation, the impurities will precipitate out on the membrane surface, clogging the RO Membrane.
  • Page 11 12.7 12.7 15.2 15.2 17.8 17.8 20.3 20.3 22.9 22.9 25.4 25.4 27.9 27.9 30.5 30.5 33.0 33.0 35.6 35.6 38.1 38.1 40.6 40.6 SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...

  • Page 12: Flow Restrictor Adjustment

    ® SpectraPure FLOW RESTRICTOR REMOVAL, ADJUSTMENT AND REPLACEMENT Locate the yellow concentrate tubing (Fig. B for Single-Membrane System or Fig. C) for Dual-Membrane System). Remove the tubing from its push-fitting at the membrane as follows: a.) Firmly depress and hold the push-fitting collar down with your thumbnail.
  • Page 13 It also forces waste water to flow through the capillary tubing to restrict waste water as it leaves the housing.) SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...

  • Page 14: Sediment Diagnostic

    ® SpectraPure SEDIMENT PRE-FILTER REPLACEMENT: A Sediment Filter will usually last approx. 4-6 months, depending on micron rating and quality of water. (The life span of the filter is determined by the turbidity, iron content, organics, and total particulate volume in your water source).

  • Page 15: Carbon Diagnostic

    NOTE: Do not use filter wrench to tighten housings. Over-tightening will damage housings and void your warranty. Turn on system water supply and check for leaks. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...

  • Page 16: Ro Membrane Diagnositc

    RO membrane. MEMBRANE WARNING: All SpectraPure RO membranes, except for encapsulated membranes, must remain moist at all times. It is the customer’s responsibility to inspect the membrane upon receipt and maintain adequate moisture.

  • Page 17: Ro Membrane Replacement

    (Fig. E) Fig. F: Membrane Housing membrane feed blue product black feed tubing push-fitting water tubing membrane housing lid yellow concentrate tubing SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...
  • Page 18 ® SpectraPure from the yellow tubing (see Flow Restrictor Removal, Adjustment, and Replacement). Reconnect the tubing to the membrane housing. Place the flow restrictor in a safe location where it will not be accidentally crushed or damaged. 11. Put the yellow concentrate tubing and the blue product water tubing in the drain and turn on the system water supply.

  • Page 19: Troubleshooting For The Drinking Water Kits

    0.661 71.6 /22 0.912 89.6 /32 1.232 55.4 /13 0.684 73.4 /23 0.941 91.4 /33 1.267 57.2/14 0.707 75.2 /24 0.970 93.2 /34 1.304 SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...
  • Page 20 ® SpectraPure Membrane Output Calculation Example What is the expected GPD from a 75 GPD System at 40 psi pressure and 60°F water temperature? PCF = 40 ÷ 60 = 0.666 TCF = 0.754 (from Table 1) Expected GPD = 75 × 0.666 × 0.754 = 37.7 GPD ± 15% 37.7 GPD would be the Actual Production Rate...

  • Page 21: Troubleshooting Guide

    RO product water (Y) greater than Yes - Membrane OK for Hardness 90%? **Caution: This test is not to be used on softened water sources. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...
  • Page 22 ® SpectraPure TIPS FOR LONG MEMBRANE LIFE: 1. Replacement of 0.5 micron sediment filter once every 6 months. This will prevent mem brane fouling due to silt or sediment depositing on the membrane. 2. Replacement of 0.5 micron carbon block filter at least once every 6 months or when chlorine breakthrough occurs.
  • Page 23 If the unit is used outside, avoid putting the system in direct sunlight or connecting it to a garden hose that may be exposed to sunlight. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...

  • Page 24: Replacement Parts

    ® SpectraPure REPLACEMENT PARTS: Model Replacement Part SF-MT-0.5-10 0.5 micron MicroTec™ Sediment Filter CF-0.5-10 0.5 micron Carbon Block Pre-Filter MEM-0025 25 gpd (95 lpd) TFC Membrane MEM-0040 40 gpd (151 lpd) TFC Membrane MEM-0060 60 gpd (228 lpd) TFC Membrane...
