Ultra-High Efficiency RO/DI
(MC-RODI -200UHE)
OWNER'S MANUAL
&
INSTALLATION INSTRUCTIONS
WARNING
Please read carefully before proceeding with installation. Failure to follow any
attached instructions or operating parameter may lead to the product's failure and
possible damage to property.
v2 2014-09-05
Advertisement
Table of Contents
Related Manuals for SpectraPure MC-RODI-200UHE
Summary of Contents for SpectraPure MC-RODI-200UHE
-
Page 1: Installation Instructions
Ultra-High Efficiency RO/DI (MC-RODI -200UHE) OWNER’S MANUAL & INSTALLATION INSTRUCTIONS WARNING Please read carefully before proceeding with installation. Failure to follow any attached instructions or operating parameter may lead to the product’s failure and possible damage to property. v2 2014-09-05... -
Page 2: Table Of Contents
Thank You for your purchase of a SpectraPure ® System. With proper installation and maintenance, this system will provide you with high quality water for years to come. All SpectraPure products are rigorously tested by us ® for safety and reliability. If you have any questions or concerns, please contact our customer service department at 1.800.685.2783 or refer to our online troubleshooting at www.spectrapure.com. -
Page 3: Operational Specifications
(DI-MC-10HC) (CF-0.5-10) 3/8” BLUE LINE: Pure Water Flush IF ANY OF THE ITEMS LISTED ABOVE ARE MISSING PLEASE CONTACT SPECTRAPURE PRIOR TO INSTALLATION. ALL RETURNS WITHOUT RMA# WILL BE REFUSED. CLAIMS MUST BE WITHIN 10 DAYS FROM RECEIPT. SpectraPure Inc. -
Page 4: Operation Description (How The System Functions)

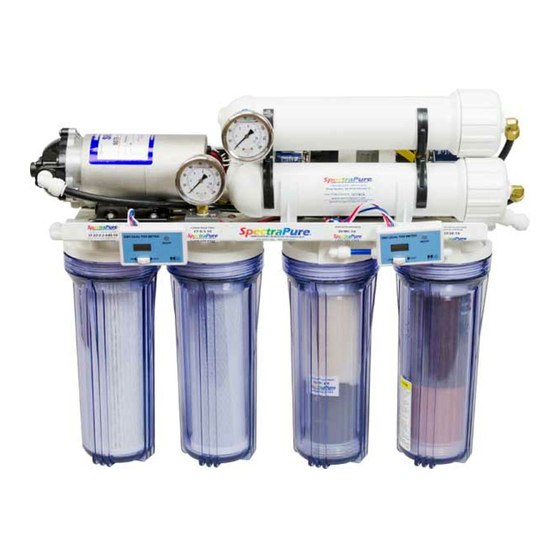

SpectraPure ® OPERATION DESCRIPTION (how the system functions) 1. The incoming feed water (3/8” Black line) is passed through a 0.2 micron ZetaZorb™ Sediment Filter. This filter is required to remove excess turbidity (particulate matter) that may cause the carbon block filter to plug. -
Page 5: Preparation
SpectraPure ® PREPARATION 1. CHOOSING THE BEST MOUNTING LOCATION: LIGHT SOURCE: Algae is more likely to thrive inside clear housings when exposed to ultraviolet light and other sources like metal halide lighting. Avoid installing the unit in bright light or direct sunlight. -
Page 6: Getting To Know Your System
SpectraPure ® GETTING TO KNOW YOUR SYSTEM: If you are setting up this system for the first time, or replacing either DI cartridges, it is very important that you rinse the MaxCap ® DI cartridge with the downstream DI removed. There is a large ionic load present in a new MaxCap ®... -
Page 7: Setup Procedures
SpectraPure ® SETUP PROCEDURES STEP 1: Unscrew the third position housing (MaxCap DI) and the fourth position housing ® (SilicaBuster DI) from the system and remove the DI Cartridges. Then, reinstall the empty housings back onto the system. STEP 2: Connect the 1/4" Black Line to the cold water line by using either the garden hose adapter, which is provided with the system, or a Feed Water Adapter. -
Page 8: Pressure Adjustment With Regulator
SpectraPure ® SETUP PROCEDURES (continued) STEP 4: For now, direct both the 1/4" blue (product or permeate) line and the yellow 3/8" (waste or concentrate) line to drain. STEP 5: Open the cold water (tap water) feed, connected to the black line. Plug in the 24 V trans- former to the UHE Module and connect to 120VAC power. -
Page 9: Connecting Bulkhead Fittings
SpectraPure ® SETUP PROCEDURES (continued) Right-Hand Left-Hand METER #2 METER #1 IN: MaxCap Water ® IN: Tap Water OUT: SilicaBuster Water ™ OUT: RO Water STEP 9: CONNECT BULKHEAD FITTINGS: (Bulkhead Fittings MUST be installed on the same container that the floats are on, SEE DIAGRAM ON PAGE 7) 1/4"... -
Page 10: Final Connections
SpectraPure ® SETUP PROCEDURES (continued) STEP 10: FINAL CONNECTION: A. Direct the waste line (yellow ) to a drain or connect it permanently to a drain pipe via a Drain Saddle. (Drain Saddle is not included with system.) B. Inspect for leaks and do not leave the system alone until you are sure there are no leaks. -
Page 11: Maintenance Procedures
SpectraPure ® MAINTENANCE PROCEDURES Maintenance and troubleshooting procedures have been made easy and effective with a combination of the (2) Dual TDS meters and a built-in pressure gauge. It is recommended that you keep replacement cartridges on hand, ready to install as soon as the monitor indicates that the cartridge in use is exhausted. -
Page 12: Carbon Block Prefilter Replacement
SpectraPure ® CARBON BLOCK PREFILTER REPLACEMENT: For maximum contaminant removal and long membrane life, the Carbon prefilter must be changed when the Chlorine Test Kit shows more than 0.1ppm of chlorine in the waste water stream. Materials Required: 0.5 micron Carbon Block Filter (CF- 0.5 -10), Filter Wrench, Chlorine Test Kit (TK- CL-10 -KIT) Procedure: (SECOND FILTER ON LEFT WHEN FACING SYSTEM) 1. -
Page 13: Reverse Osmosis Membrane Production Rate Testing
SpectraPure ® REVERSE OSMOSIS MEMBRANE PRODUCTION RATE TESTING: Actual production rate of a membrane is dependent on two factors: Tap Water Pressure and Tap Water Temperature.* ° ° The testing standards for RO membranes are 60 psi (4.1 bar) tap water pressure and 77 F (25 C ) tap water temperature. -
Page 14: Reverse Osmosis Membrane Replacement
SpectraPure ® REVERSE OSMOSIS MEMBRANE REPLACEMENT: 1. Turn off the water supply to the RO system and unplug the transformer. Place the system where the membrane housing is easily accessible. 2. Remove the black tubing from the membrane feed push fitting by depressing the collar on the fitting with your thumb and pulling the tubing from the push fitting. -
Page 15: Deionization Cartridge Maintenance And Replacement
SpectraPure ® DEIONIZATION CARTRIDGE MAINTENANCE AND REPLACEMENT Materials Required: Filter wrench and DI cartridges NOTE: In order to receive an accurate reading, the system must be producing water for at least 10 minutes before reading the TDS meters. Maintenance for MaxCap DI Cartridge: ®... -
Page 16: Troubleshooting Guide
SpectraPure ® TROUBLE SHOOTING GUIDE Problem Cause Corrective Action Low production rate. a. plugged prefilters. i. Replace prefilters. b. low water temperature. ii. Use higher GPD membrane. c. fouled membrane. iii. Replace membrane. d. plugged flow restrictor. iv. Replace flow restrictor & membrane. -
Page 17: Warranty Information
SpectraPure’s liability under this warranty shall be limited to repairing or replacing at SpectraPure’s option, without charge, F.O.B. SpectraPure’s factory, any product of SpectraPure’s manufacture. -
Page 18: Relacement Parts List
SpectraPure ® REPLACEMENT PARTS Catalog No. Replacement Parts Description SF-ZZ- 0.2-10 ZetaZorb 0.2 Micron Sediment Filter (1st Stage) ® (Failure to use a ZetaZorb sediment filter for replacement will Sediment Filter ® void the system’s warranty.) CF-0.5-10 Carbon Filter 0.5 Micron Carbon Prefilter (2nd Stage)
