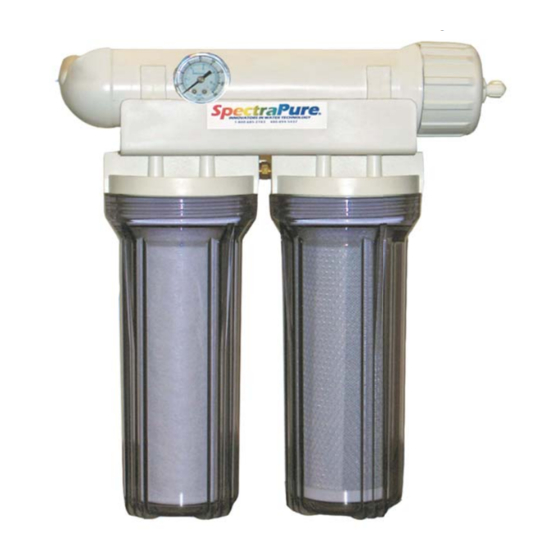

- Page 1 The Eliminator RO™ System Reverse Osmosis Water Purification System (Single and Dual Membrane Models Produce 100 & 200 Gallons Per Day) INSTALLATION AND OPERATING MANUAL REV 02-10-2009...
-
Page 2: Table Of Contents
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written permission of SpectraPure Inc. SpectraPure®Inc. 480.894.5437 Call us toll-free 1.800.685.2783... -
Page 3: System Specifications
*Operating pressure less than 40 psi will require a high flow booster pump (BPHF-MO-115(230)). *Operating pressure greater than 80 psi will require a pressure reducing valve. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 4: System Description
® SpectraPure SYSTEM DESCRIPTION The incoming feed water from a cold supply pipe valve is directed through 1/4” BLACK tubing and is first passed through a 1 micron Micro-Tec™ sediment pre-filter. This filter is used to remove excessive turbidity, sand, dust, silt etc.that may cause the carbon filter to plug up. - Page 5 ® SpectraPure ELIMINATOR-100 ELIMINATOR-200 SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...
-
Page 6: Optional Accessories
TOTAL DISSOLVED SOLID METER (MTR-TDS-4TM-0-9990) - Measure the TDS levels or temperature of the water. Perfect for both consumer or commercial use in fresh water or salt water. SpectraPure ® Inc . assumes no responsibility for water damage due to leaks. It is the user’s responsibility to determine that the system is leak-free. -
Page 7: System Initialization
RubberMaid™ trash can or set up automatically using a Liquid Level Controller (LLC-S-115 or LLC-M-115) or the Auto Shut-Off Kit (ASOFK). AS SHOWN ON PAGE 6 FOR OPTIONAL ACCESSORIES SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 8: Measuring Concentrate To Purified Water Ratio
Failure to perform this procedure can permanently damage the membrane and will void the pro-rated Membrane Warranty. In order to maximize the life of your SpectraPure RO Membrane, you may need to adjust the ratio of the concentrate to purified water. If not enough concentrate is allowed to flow past the membrane during operation, the impurities will precipitate out on the membrane surface, clogging the RO Membrane. -
Page 9: Flow Restrictor Removal, Adjustment, And Replacement
Care should be taken not to crush or other- wise damage the end of the capillary tubing protruding from the end of the insert. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... - Page 10 ® SpectraPure Re-insert the yellow tubing into its push-fitting in the RO membrane as follows: a.) Moisten the O-ring seal inside the concentrate outlet fitting by dripping a few drops of clean water into the fitting. b.) Grasp the yellow tubing near the flow restrictor end, and insert the tubing into the push-fitting.
-
Page 11: System Maintenance Pre-Filter Replacement Proceedure
Install the new pre-filter onto the round port in the head of the housing, screw the housing back onto the assembly, and hand tighten only . Proceed with carbon block filter replacement. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... - Page 12 ® SpectraPure CARBON BLOCK FILTER REPLACEMENT Maintenance Regime: At least every 6 months or when chlorine breakthrough greater than 0.1 ppm occurs in the concentrate from yellow line. To test for chlorine breakthrough , collect a 10 ml sample of the concentrate from the yellow tubing and test the chlorine concentration using test kit TK-CL-25.
-
Page 13: Ro Membrane Replacement Proceedure
(Refer to the procedure on page 9-10). Fig. D: Membrane Housing membrane feed blue product black feed tubing push-fitting water tubing membrane housing lid yellow concentrate tubing SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... - Page 14 ® SpectraPure Reconnect the tubing to the membrane housing. Place the flow restrictor in a safe location where it will not be accidentally crushed or damaged. 11. Put the yellow concentrate tubing and the blue product water tubing in the drain and turn on the system water supply.
-
Page 15: Testing Quality Of The Membrane
0.661 71.6 /22 0.912 89.6 /32 1.232 55.4 /13 0.684 73.4 /23 0.941 91.4 /33 1.267 57.2/14 0.707 75.2 /24 0.970 93.2 /34 1.304 SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... - Page 16 ® SpectraPure Membrane Output Calculation Example What is the expected GPD from a 75 GPD System at 40 psi pressure and 60°F water temperature? PCF = 40 ÷ 60 = 0.666 TCF = 0.754 (from Table 1) Expected GPD = 75 × 0.666 × 0.754 = 37.7 GPD ± 15%...
-
Page 17: Troubleshooting Guide
Please feel free to contact us here at the factory for any technical questions or problems you may have. Toll-Free (also in Canada) 1-800-685-2783 SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... - Page 18 ® SpectraPure TIPS FOR LONG MEMBRANE LIFE Replacement of 1 micron sediment filter once every 6 months.This will pre vent the mem brane from fouling due to silt or sediment depositing on the membrane. Replacement of 1 micron carbon block filter at least once every 6 months or before chlorine breakthrough occurs .
-
Page 19: Warranty
Effective on products purchased after March 10, 2005. SpectraPure, Inc.® warrants the product to the original owner only to be free of defects in material and workmanship for a period of one year from the date of receipt. SpectraPure’s liability under this warranty shall be limited to repairing or replacing at SpectraPure’s option, without charge, F.O.B. -
Page 20: Replacement Parts Numbers
® SpectraPure REPLACEMENT PARTS Model Replacement Part SF-MT-1-10 1 micron MicroTec™ Sediment Filter CF-1-10 1 micron Carbon Block Filter MEM-0100 100 gpd TFC Membrane 200 gpd TFC Membranes Uses (2) 100 gpd Membranes) FR-100 Flow Restrictor for 100 gpd System...
