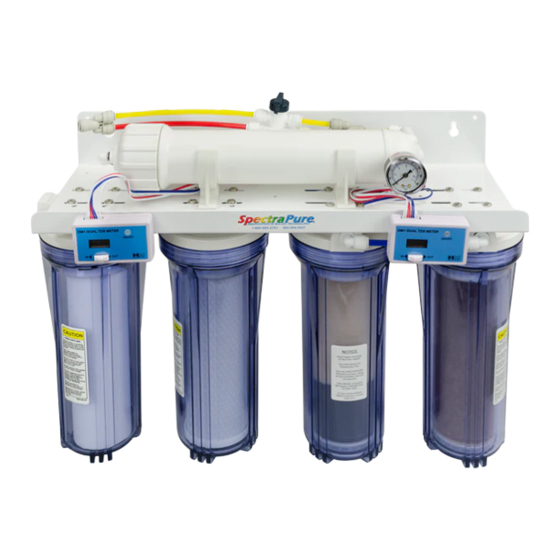

Mega MaxCap
(manual flush)
®
Single (90 gpd) or Dual (180 gpd) Membrane Models
Reverse Osmosis/Deionization
Water Purification Systems
INSTALLATION AND OPERATING MANUAL
WARNING
Please read carefully before proceeding with installation. Failure to
follow any attached instructions or operating parameters may lead
to the product's failure and possible damage to property.
REV_3 2017-10 -25
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SpectraPure Mega MaxCap
Summary of Contents for SpectraPure Mega MaxCap
- Page 1 Mega MaxCap (manual flush) ® Single (90 gpd) or Dual (180 gpd) Membrane Models Reverse Osmosis/Deionization Water Purification Systems INSTALLATION AND OPERATING MANUAL WARNING Please read carefully before proceeding with installation. Failure to follow any attached instructions or operating parameters may lead to the product’s failure and possible damage to property.
-
Page 2: Table Of Contents
ALL RIGHTS RESERVED No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written permission of SpectraPure Inc. SpectraPure Inc. -
Page 3: System Features
0.5 micron High-Performance Sediment prefilter • High-capacity 0.5 micron Carbon Block prefilter eliminates chlorine, herbicides and other organic pollutants • Newly-designed Mega MaxCap™ DI Cartridge (DI-MMC-10) with greatly improved removal capacity • New Enduro DI™ Finishing Cartridge (DI-MB-ENDI-10) • Two dual-probe TDS Meters to monitor performance at every stage of production •... -
Page 4: System Specifications
RO Membrane Type 90 GPD SpectraSelectPlus™ TFC Membrane (Use 2 for 180 GPD Systems) DI Cartridges Mega MaxCap™ Extended Life DI Cartridge (DI-MMC-10) Enduro DI™ DI Finishing Cartridge (DI-MB-ENDI-10) Rejection Rate Typical stabilized conductivity rejection 99% Minimum conductivity rejection 98% Input Water Pressure 60 psi (4.15 bar) line pressure*... -
Page 5: General System Description
Enduro DI™ cartridge. These DI cartridges work in tandem to achieve a greatly extended lifespan when compared to standard mixed-bed DI cartridges. Because the RO water reaches it first, the Mega MaxCap™ will need to be replaced more often than the Enduro DI™. The Mega MaxCap RODI system comes equipped with two Dual-Probe ™... -
Page 6: General System Description
A pressure - operated Automatic Shutoff (ASO) Valve and a Float Valve are provided for convenient filling of a storage reservoir. NOTE: SpectraPure does not recommend using the Float Valve for topoff due to evaporation. The short duration of the fill cycle when using a float valve will rapidly deplete the life of the DI cartridges due to TDS creep. -
Page 7: Flow Restrictors And Test Strips
DI Cartridges which are a more expensive way to filter water when compared to Reverse Osmosis Membranes. If you are interested in installing a Booster Pump Kit on your RO/DI system or if you have any questions regarding a Booster Pump Kit, please contact SpectraPure Support. SpectraPure Inc . ®... -
Page 8: Front View Of System
“OUT” = RO Water TDS “OUT” = Enduro DI TDS Enduro DI™ 0.5 micron Finishing Cartridge Sediment Prefilter (DI-MB-ENDI-10) (SF-MT-0.5 -10) 0.5 micron Mega MaxCap™ Carbon Block Filter DI Cartridge (CF-0.5 -10) (DI-MMC-10) SpectraPure Inc. ® 480.894.5437 Call us toll-free 1.800.685.2783... -
Page 9: Top Views Of System
SpectraPure ® MEGA MAXCAP RO/DI Systems : Top Views ™ 90 GPD Single-Membrane System 1/4" Yellow REAR Tubing to Drain FRONT 180 GPD Dual -Membrane System Automatic ShutOff (ASO) Valve 1/4" Yellow REAR Tubing to Drain Flow Restrictor located FRONT... -
Page 10: Cautions
SpectraPure ® CAUTION • Most of the components of this system are plastic and are subject to damage by ultraviolet light from the sun and other sources such as metal halide lighting. • Avoid installing this unit in an area where it may be subjected to bright light or direct sunlight, as algae is more likely to thrive inside the clear filter housings when exposed to bright light. -
Page 11: Float Valve Installation
18. Check the system to ensure that all fittings are tight and leak-free before leaving the system unattended. (If anything is leaking, contact SpectraPure for assistance.) 19. It may take several days of normal operation for the membrane to reach its full production rate. -
Page 12: Float Valve Illustration
SpectraPure ® FLOAT VALVE ILLUSTRATION: HOW THE FLOAT VALVE WORKS: The increasing water level raises the Float Valve in the reservoir and stops the flow of water. Pressure builds up in the product line and ASO Valve until the ASO Valve shuts off the flow of waste water to drain. This “OFF”... -
Page 13: Metering And Diagnostics
(lifespan) of the RO membrane. (See “Testing The Quality Of The Membrane” on Page 15.) The right-side meter shows the TDS of the water coming from the Mega MaxCap™ cartridge when set to “IN” and the TDS of the water coming from the Enduro DI™... -
Page 14: Using The Pressure Gauge
SpectraPure ® USING THE PRESSURE GAUGE: The pressure gauge is used to monitor the condition of the Sediment and Carbon Prefilters. With the Sediment and Carbon filters removed, the gauge will indicate the “actual” tap water input pressure. When the prefilters are “new”, the pressure shown on the gauge will be slightly less than the... -
Page 15: Testing The Quality Of The Membrane
SpectraPure ® TESTING THE QUALITY OF THE MEMBRANE: The performance of a RO membrane is measured by its ability to reject salts or TDS (Total Dissolved Solids). Use the TDS Meter located on the left side of your system for this procedure. -
Page 16: Membrane Production Calculation
SpectraPure ® MEMBRANE PRODUCTION CALCULATION: Membranes produce the rated gallons per day (GPD) at 60 psi (4.1 bars) operating pressure, 77°F (25°C) operating temperature and with no more than 250 ppm total dissolved solids. Membrane output gallons per day (GPD) depends on operating pressure, water temperature and the TDS in the feed water. -
Page 17: Membrane Production Calculation
SpectraPure ® MEMBRANE PRODUCTION CALCULATION: (cont.) Membrane Output Calculation Example What is the expected GPD from a 100 GPD System at 40 psi pressure and 60°F water temperature? PCF = 40 ÷ 60 = 0.666 TCF = 0.754 (from Table on previous page) Expected GPD = 100 ×... -
Page 18: Working With Push Fittings
SpectraPure ® WORKING WITH PUSH FITTINGS: Push fittings are very reliable and convenient tubing connectors. To remove the tubing from its push fitting: 1. Firmly depress and hold the push fitting collar down with your thumbnail. 2. While the push fitting collar is depressed, pull the tubing straight out of the push fitting. -
Page 19: Sediment Prefilter Replacement
SpectraPure ® SEDIMENT PREFILTER REPLACEMENT: A Sediment Filter will usually last approx. 4 -6 months, depending on the quality of the tap water and quantity of water being produced. (The lifespan of the filter is determined by the turbidity, iron content, organics, and total particulate volume in your water source). -
Page 20: Carbon Block Filter Replacement
SpectraPure ® CARBON BLOCK FILTER REPLACEMENT: A Carbon Filter will usually lasts 4-6 months, depending on the chlorine (or chloramine) content of your tap water and quantity of water being produced. The best way to determine when your Carbon Block Prefilter needs to be replaced is to use a chlorine test kit. -
Page 21: Mega Maxcap Super Di Replacement
® MEGA MAXCAP DI REPLACEMENT: The Mega MaxCap™ DI cartridge is located in the second housing from the right. When the Right-Side Meter (set to the “IN” position) reads “1”, it is time to replace the Mega MaxCap™ DI cartridge. -
Page 22: Ro Membrane Replacement
SpectraPure ® RO MEMBRANE REPLACEMENT: Your Mega MaxCap system comes equipped with a SpectraSelectPlus™ 99% rejection membrane. As membranes age, their rejection rates drop. The DI cartridges scrub all of the TDS from the water that the RO membrane does not remove. -
Page 23: Sanitizing The System
SpectraPure ® RO MEMBRANE REPLACEMENT: (continued) 7. Place the black housing O-ring on the housing rim and carefully screw the lid back on to the base. Hand-tighten. 8. Reconnect the black tubing to the membrane feed push fitting. 9. If you have a dual-membrane system (-180), perform steps 2 thru 8 on the second membrane. -
Page 24: System Troubleshooting Guide
SpectraPure ® SYSTEM TROUBLESHOOTING GUIDE Low production rate: a. plugged prefilters. i. Replace prefilters. b. low water temperature ii. Warm feed water OR use higher GPD membrane. c. low line pressure. iii. Use booster pump OR use higher GPD membrane. -
Page 25: Optional Accessories
SpectraPure ® Low deionization cartridge life: a. Defective membrane. i. Replace it. b. Low pressure (<40 psi). ii. Use booster pump. c. High CO2 levels in iii. Aerate RO product water. water (> 5 ppm) d. High TDS in feed water iv. -
Page 26: Terms And Conditions
10 days. Returns other than warranty claims may be subject to 20% restocking fee. SpectraPure, Inc. cannot be held liable for damage or loss to a shipment by a freight carrier. Check shipment for damage before acceptance or note on freight bill subject to inspection for concealed damage. -
Page 27: Three-Year Limited Warranty
® THREE-YEAR LIMITED WARRANTY: SpectraPure, Inc.® warrants the product to the original owner only to be free of defects in material and workmanship for a period of three years from the date of receipt. SpectraPure’s liability under this warranty shall be limited to repairing or replacing at SpectraPure’s option, without charge, F.O.B. -
Page 28: Replacement Parts And Accessories
* Green Flow Restrictors have a 2:1 waste ratio recommended for tap water <180 ppm Red Flow Restrictors have a 3:1 waste ratio recommended for tap water ≥180 ppm DI-MMC-10 Mega MaxCap™ DI Cartridge DI-MB-ENDI-10 Enduro DI™ Finishing Cartridge GHA-4 1/4"...
