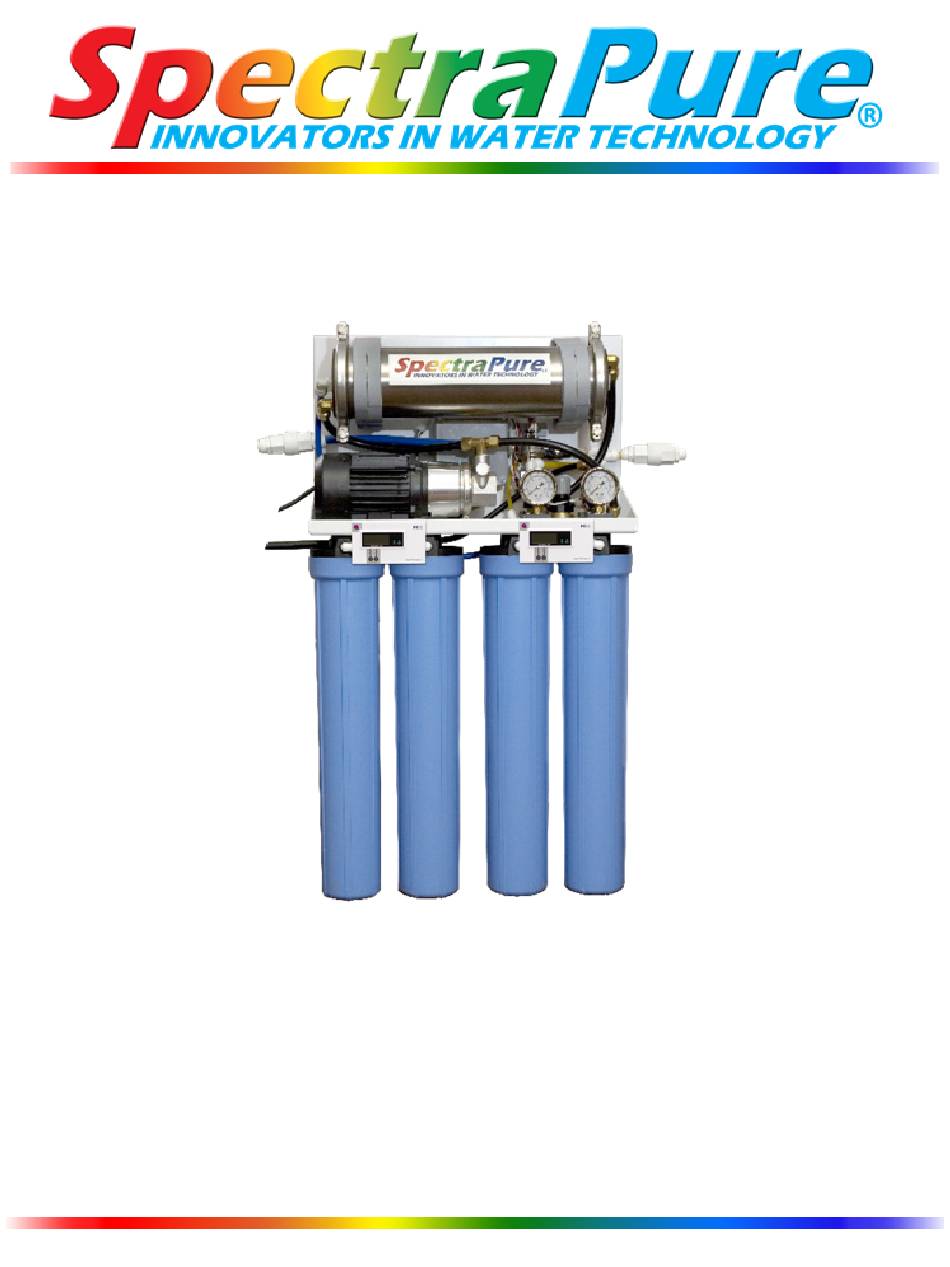

Ultra-High Efficiency RO/DI
(MC-RODI -400UHE-20)
OWNER'S MANUAL
&
INSTALLATION INSTRUCTIONS
WARNING
Please read carefully before proceeding with installation. Failure
to follow any attached instructions or operating parameter may
lead to the product's failure and possible damage to property.
v2 2014-09-05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC-RODI-400UHE-20 and is the answer not in the manual?

Questions and answers

Summary of Contents for SpectraPure MC-RODI-400UHE-20

  • Page 1 Ultra-High Efficiency RO/DI (MC-RODI -400UHE-20) OWNER’S MANUAL & INSTALLATION INSTRUCTIONS WARNING Please read carefully before proceeding with installation. Failure to follow any attached instructions or operating parameter may lead to the product’s failure and possible damage to property. v2 2014-09-05...
  • Page 2: Table Of Contents

    Thank You for your purchase of a SpectraPure ® System. With proper installation and maintenance, this system will provide you with high quality water for years to come. All SpectraPure products are rigorously tested by us ® for safety and reliability. If you have any questions or concerns, please contact our customer service department at 1.800.685.2783 or refer to our online troubleshooting at www.spectrapure.com.
  • Page 3: Operational Specifications

    Carbon Filter (DI -MC-20) (CF- 0.5 - 20) IF ANY OF THE ITEMS LISTED ABOVE ARE MISSING PLEASE CONTACT SPECTRAPURE PRIOR TO INSTALLATION. ALL RETURNS WITHOUT RMA# WILL BE REFUSED. CLAIMS MUST BE WITHIN 10 DAYS FROM RECEIPT. SpectraPure Inc.
  • Page 4: Operation Description (How The System Functions)

    SpectraPure ® OPERATION DESCRIPTION (how the system functions) 1. First, the incoming feed water (1/2” Black line) is passed through a 0.2 micron ZetaZorb ® Sediment Filter. This filter is required to remove excess turbidity (particulate matter) that may cause the carbon block filter to become plugged.
  • Page 5: Preparation

    SpectraPure ® PREPARATION 1. CHOOSING THE BEST MOUNTING LOCATION: LIGHT SOURCE: Algae is more likely to thrive inside clear housings when exposed to ultraviolet light and other sources like metal halide lighting. Avoid installing the unit in bright light or direct sunlight.
  • Page 6: System Diagram

    SpectraPure ® NOTE: When mounting your UHE, be sure it is elevated above the fresh water reservoir. SpectraPure Inc. ® 480.894.5437 Call us toll-free 1.800.685.2783 2167 East Fifth St, Tempe, Arizona 85281...
  • Page 7: Setup Procedures

    SpectraPure ® SETUP PROCEDURES STEP 1: Connect the 1/2" Black Line to a cold water line that will provide unrestricted water flow to the RO/DI system. STEP 2: PURE WATER FLUSH CYCLE INSTALLATION USING THE HIGH AND LOW FLOAT SWITCHES.
  • Page 8: Pressure Adjustment With Regulator

    B. Use a measuring cup and a stop watch to measure the waste and product water. Be sure you have equal measurements and adjust accordingly. This procedure will assure you of maximum life and reliability of your SpectraPure System. Failure to perform this procedure can permanently damage the membrane and will void the prorated Membrane Warranty.
  • Page 9: Connecting Bulkhead Fittings

    SpectraPure ® STEP 10. CONNECT BULKHEAD FITTINGS: Bulkhead Fittings MUST be installed on the same container that the floats are on, SEE DIAGRAM ON PAGE 7. 3/8" BULKHEAD FITTING: Use a paddle bit and carefully drill a 13/16" hole for installation at the top of the reservoir (above the high level float).
  • Page 10: Maintenance Procedures

    SpectraPure ® MAINTENANCE PROCEDURES We recommend that you keep replacement cartridges on hand, ready to install as soon as the monitor indicates that the cartridge in use is exhausted. SHELF LIFE FOR FILTERS: PREFILTERS (Sediment and Carbon Block Filters): Prefilters have an infinite shelf life.
  • Page 11: Carbon Block Prefilter Replacement

    SpectraPure ® CARBON BLOCK PREFILTER REPLACEMENT: For maximum contaminant removal and long membrane life, periodically test for the presence of chlorine in the waste water stream. The Carbon prefilter must be changed when more than 0.1 ppm of chlorine is detected.
  • Page 12: Reverse Osmosis Membrane Performance Testing

    SpectraPure ® REVERSE OSMOSIS MEMBRANE PERFORMANCE TESTING: The actual performance of the membrane in the MC- RODI-400UHE-20 is primarily dependent on Tap Water Temperature. In order to characterize a membrane, there must be common testing data. For testing the UHE-400 membrane, the specification is 77°...
  • Page 13 SpectraPure ® Membrane Clip Yoke Clamp Concentrate Recirculation Line Blue Product Water Tubing in Push Fitting 3/8" Yellow Drain Line 3/8" Concentrate to Drain, 3 PSI Check Valve AC Power Cord Low-Pressure Cutoff Switch Final Product Water Output Yoke Clamp...
  • Page 14: Tips For Long Membrane Life

    SpectraPure ® REVERSE OSMOSIS MEMBRANE REPLACEMENT: (continued) Reinstall the membrane housing assembly into the two “tooth-like” clips and squeeze the clips together until the membrane is snug. Reconnect the black tubing on the input end and tighten the compression nut.
  • Page 15: Warranty Information

    ® workmanship for a period of one year from the date of receipt. SpectraPure’s liability under this warranty shall be limited to repairing or replacing at SpectraPure’s option, without charge, F.O.B. SpectraPure’s factory, any product of SpectraPure’s manufacture.
  • Page 16: Troubleshooting Guide

    SpectraPure ® TROUBLE SHOOTING GUIDE Problem Cause Corrective Action Low production rate. a. plugged prefilters. i. Replace prefilters. b. low water temperature. ii. Use higher GPD membrane. c. fouled membrane. iii. Replace membrane. d. plugged flow restrictor. iv. Replace flow restrictor & membrane.
