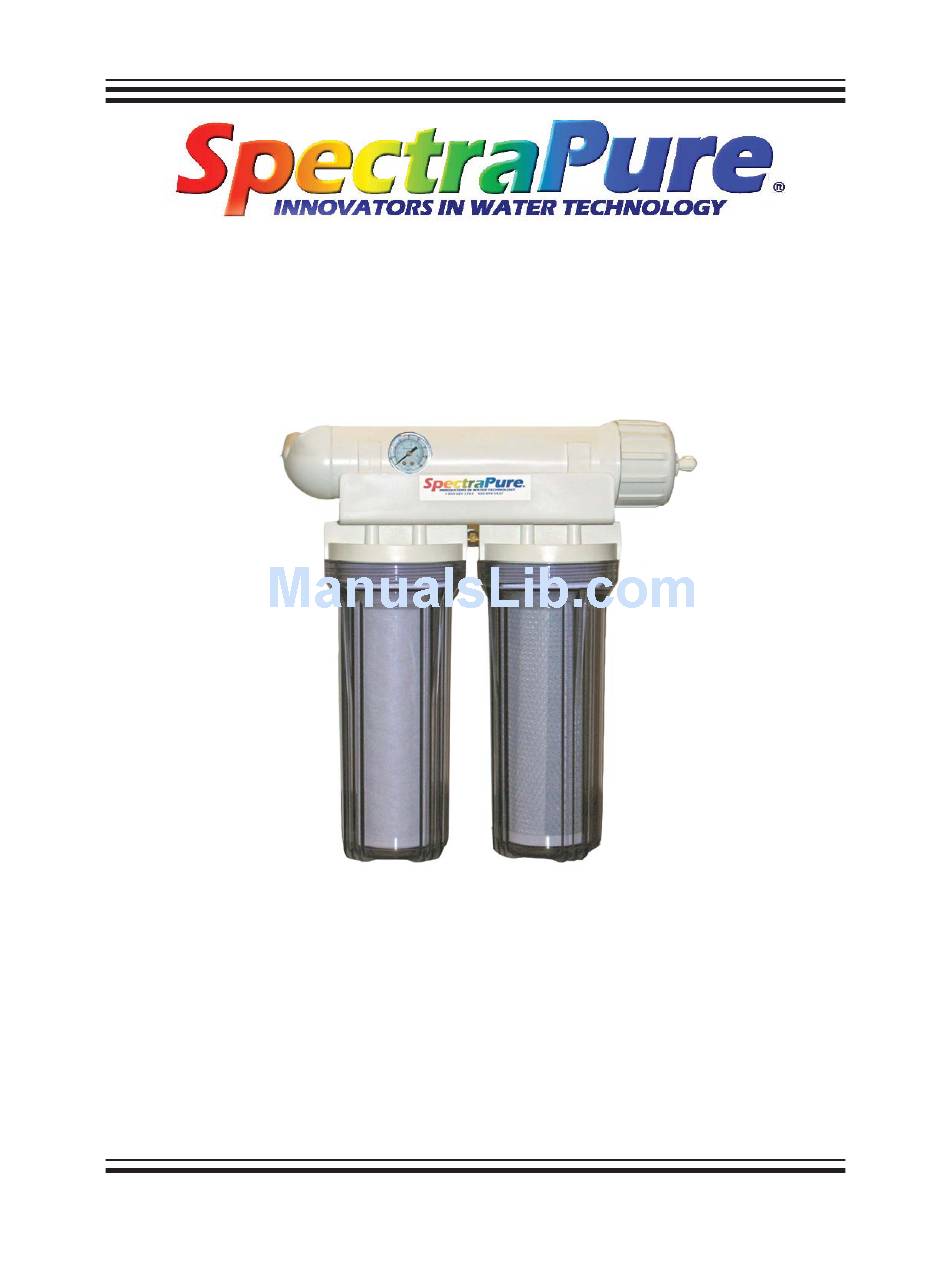

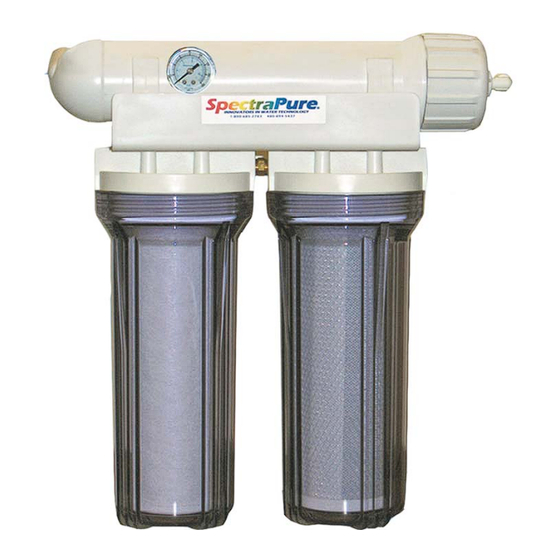

The MarinePRO
System
™ RO
Reverse Osmosis Water Purification System
(Single and Dual Membrane Models)
INSTALLATION AND OPERATING
MANUAL
WARNING
Please read carefully before proceeding with installation. Failure to
follow any attached instructions or operating parameter may lead to
the product's failure and possible damage to property.
REV 05-07-2009
Advertisement
Table of Contents
Related Manuals for SpectraPure The MarinePRO
Summary of Contents for SpectraPure The MarinePRO
- Page 1 The MarinePRO System ™ RO Reverse Osmosis Water Purification System (Single and Dual Membrane Models) INSTALLATION AND OPERATING MANUAL WARNING Please read carefully before proceeding with installation. Failure to follow any attached instructions or operating parameter may lead to the product’s failure and possible damage to property.
-
Page 2: Table Of Contents
® SpectraPure TABLE OF CONTENTS: Thank You for your purchase of a SpectraPure® System. With proper installation and maintenance, this system will provide you with high quality water for years to come. All SpectraPure® products are rigorously tested by us for safety and reliability. If you have any questions or concerns, please contact our customer service department at 1.800.685.2783 or refer to our... -
Page 3: System Specifications
*Operating pressure less than 40 psi will require a high flow booster pump (BPHF-MO-115(230)). *Operating pressure greater than 80 psi will require a pressure reducing valve. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 4: System Description
® SpectraPure SYSTEM DESCRIPTION: The incoming feed water from a cold supply pipe valve is directed through 1/4” tubing and is first passed through a 1 micron Micro-Tec™ sediment pre-filter. This filter is used to remove excessive turbidity, sand, dust, silt etc.that may cause the carbon filter to plug up. -
Page 5: Optional Accessories
Total Dissolved Solid Meter (MTR-TDS-4TM-0-9990) - Measure the TDS levels or temperature of the water. Perfect for both consumer or commercial use in fresh water or salt water. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 6: System Initialization
Rubber Maid™ trash can or set up to become automatic using a Liquid Level Controller (LLC-S-115 ), (LLC-M-115) or the Auto Shut-Off Kit (ASOFK). SpectraPure®Inc. assumes no responsibility for water damage due to leaks. It is the user’s responsibility to determine that the system is leak-free. SpectraPure®Inc. -
Page 7: Measuring Waste To Product Water Ratio
System. Failure to perform this procedure can permanently damage the membrane and will void Warranty. In order to maximize the life of your SpectraPure RO Membrane, you may need to adjust the ratio of the concentrate to purified water. If not enough concentrate is allowed to flow past the membrane during operation, the impurities will precipitate out on the membrane surface, clogging the RO Membrane. - Page 8 ® SpectraPure Fig. C: Flow Restrictor Tables (For 4:1 Concentrate to Product Ratio) FR-100 (YELLOW) PRODUCT RATE CUT TO LENGTH ml./min. 10.2 12.7 15.2 17.8 20.3 22.9 25.4 27.9 30.5 33.0 35.6 38.1 40.6 FR-200 (GREEN) PRODUCT RATE CUT TO LENGTH ml./min.
-
Page 9: Flow Restrictor Removal, Adjustment And Replacement
Care should be taken not to crush or otherwise damage the end of the capillary tubing protruding from the end of the insert. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... - Page 10 ® SpectraPure 6. Re-insert the yellow tubing into its push-fitting in the RO membrane as follows: a.) Moisten the O-ring seal inside the concentrate outlet fitting by dripping a few drops of clean water into the fitting. b.) Grasp the yellow tubing near the flow restrictor end, and insert the tubing into the push-fitting.
- Page 11 Membrane 1 concen- mounting trate push-fitting bracket Membrane 1 prod- black feed tubing uct water push fitting SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...
-
Page 12: Metering & Diagnostics
® SpectraPure METERING AND DIAGNOSTICS: Maintenance and trouble-shooting procedures have been made easy and effective with a built-in pressure gauge. The provided pressure gauge is used to determine the tap water pressure and to evaluate the condition of the sediment and carbon pre-filters. -
Page 13: Sediment Filter Diagnostic
** If your water contains a great deal of sediment or chlorine, the pre-filters may require more frequent changes to maintain adequate production rate and extended membrane life. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 14: Carbon Filter Diagnostic
® SpectraPure CARBON BLOCK FILTER REPLACEMENT: A Carbon Filter will usually lasts approx. 4-6 months ,depending on micron rating for the filters, usage and the quality of your tap water. The best way to determine when your Carbon Block Pre-Filter needs replacement is to use a chlorine test kit. -
Page 15: Ro Membrane Diagnostic
Note: All water sources are different and are subject to changes in conductivity from season to season which could affect the monitor reading depending on the time of the year. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... - Page 16 ® SpectraPure RO MEMBRANE REPLACEMENT 1. Turn off the water supply to the RO system. Place the system where the membrane housing is easily accessible. 2. Remove the black tubing from the membrane feed push-fitting by depressing the collar on the fitting with your thumb and pulling the tubing from the push-fitting (Page 9).
- Page 17 2 gallons. (This step will flush out membrane preservatives.) 3. Re-insert flow restrictor and check for leaks. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...
- Page 18 ® SpectraPure Notes SpectraPure®Inc. 480.894.5437 Call us toll-free 1.800.685.2783 2167 East Fifth St, Tempe, Arizona 85281...
- Page 19 0.661 71.6 /22 0.912 89.6 /32 1.232 55.4 /13 0.684 73.4 /23 0.941 91.4 /33 1.267 57.2/14 0.707 75.2 /24 0.970 93.2 /34 1.304 SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...
- Page 20 ® SpectraPure Membrane Output Calculation Example What is the expected GPD from a 75 GPD System at 40 psi pressure and 60°F water temperature? PCF = 40 ÷ 60 = 0.666 TCF = 0.754 (from Table 1) Expected GPD = 75 × 0.666 × 0.754 = 37.7 GPD ± 15%...
-
Page 21: Troubleshooting Guide
*Caution: This test is not to be used on softened water sources. Please feel free to contact us here at the factory for any technical questions or problems you may have. Toll-Free 1-800-685-2783 SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 22: Tips & Storage
® SpectraPure TIPS FOR LONG MEMBRANE LIFE: Replacement of 1 micron sediment filter once every 6 months. This will pre vent the mem brane from fouling due to silt or sediment depositing on the membrane. Replacement of 1 micron carbon block filter at least once every 6 months or before chlorine breakthrough occurs . -
Page 23: Replacement & Optional Parts
Flow Restrictor for 100 gpd System FR-200 Flow Restrictor for 200 gpd System GHA-4 1/4” (6.35 mm) Garden Hose Adapter XWR-UNIV Universal Filter Wrench SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 24: Warranty
SpectraPure (pumps and monitors) carry the original manufacturer’s warranty. SpectraPure, Inc.® warrants the product to the original owner only to be free of defects in material and workmanship for a period of three years from the date of receipt. SpectraPure’s liability under this warranty shall be limited to repairing or replacing at SpectraPure’s option, without charge, F.O.B.
