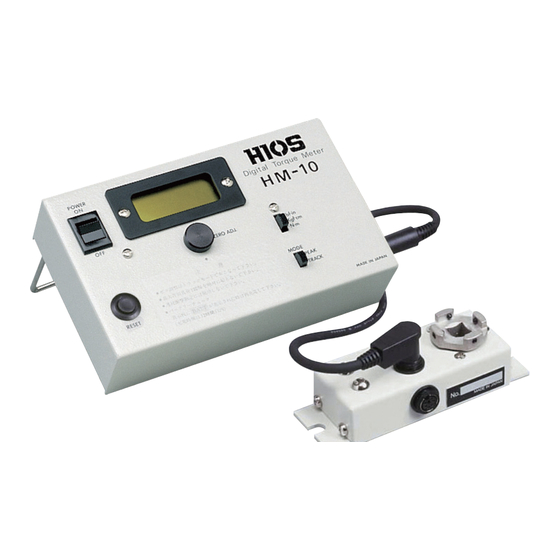

The Torque Value Checking Meters
For Automatic Controlled System
HM-10
HM-100
Operation Manual
(As of December 2016)
1-16-5 Akiyama, Matsudo City,
Chiba Pref., Japan
TEL: 81 (Japan) 47-392-2001
16A
FAX: 81 (Japan) 47-392-7773
Operation manual No. ET-C005
Utilizing 100% post-consumer
recycled paper pulp
Advertisement
Table of Contents
Related Manuals for HIOS HM-10
Summary of Contents for HIOS HM-10
- Page 1 The Torque Value Checking Meters For Automatic Controlled System HM-10 HM-100 Operation Manual (As of December 2016) 1-16-5 Akiyama, Matsudo City, Chiba Pref., Japan TEL: 81 (Japan) 47-392-2001 FAX: 81 (Japan) 47-392-7773 Operation manual No. ET-C005 Utilizing 100% post-consumer recycled paper pulp...
- Page 2 6. You can use commercially available tools for collection as well as analysis of measurement data. 7. You can also measure the torque of a motor screwdriver for manual use. ● You need to use HIOS’s Fidaptor and a commercially available conversion plug for measurement of the torque of a motor screwdriver for manual use.
- Page 3 Notes for use ● Never apply the torque exceeding the maximum value displayed on the instrument. If you do so, the instrument will break inside. ● For correct handling of Fidaptor, refer to page 4. ● Do not use attachments except Fidaptor and other specified attachments. ●...
-
Page 4: Display Unit
● Conversion of N ・ m: 1N ・ m ≒ 10.2 kgf ・ cm Model N ・ m N ・ cm N ・ m N ・ cm kgf ・ cm HM-100 0.00 1000 HM-10 .000 10.2 9.81 0.981 98.1 - 3 -... - Page 5 Use the L-wrench to lock the rotation of the hollow set screw and unfasten the head screw. Suitable wrench size: 1.5mm for HM-10, 2.0mm for HM-100. Spare screws are included. Use L-wrench to lock the rotation and unfasten the screw.
- Page 6 ■ Operation procedure ● How to check torque using Fidaptor ＬＯＢＡＴ First, connect the torque meter (HM) to the detector. Then turn on the power and confirm if the battery has been charged. ・ How to check the battery When “LOBAT” is displayed, start charging the battery.
- Page 7 5-2. Set the bit end of the target screwdriver to the center of the head screw of Fidaptor. ◎ Important Notes when fixing Fidaptor: (1) In order to have the bit set right in the center of the head screw of Fidaptor, you need to fix Fidaptor by fastening the four screws on the side evenly.
- Page 8 9. Turn the screwdriver for measurement. When the clutch is disconnected, the spring is compressed. The measurement is displayed in the window and saved. This is the output torque of the screwdriver. ２１．３ When the clutch of the screwdriver is disconnected, the measured value is displayed in the window and saved.
- Page 9 14. For aggregation of measurement data, turn the mode switch to PEAK. For measurement, an input signal (torque = load) of 15 digits or larger is required. If you press the Reset button, the data will be output and the value in the display window will be cancelled. (For the data output tool, refer to the description on page 16.) ●...
- Page 10 (Notes) ● Check if the display unit is connected to the detector. Buzzer set knob ● The buzzer is set to 0.981 N ・ m (HM-10) and 9.81 N ・ m (HM-100) by default when shipped. <Setting procedure> Turn on power Set to TRACK mode ・Turn the knob to set the...
-
Page 11: Inspection Of Fidaptor
(2) Bearing set Component (4): it should be replaced together with the component (1). Component (5): every 5,000 cycles (3) Bearing housing Note: The grease is available from HIOS. (Separately sold, grease P/N: TF-3G) (4) Spring (5) Plate nut - 10 -... -
Page 12: How To Charge The Battery
・ The attachment must have sufficient strength to prevent breakage during measurement. ・ The vertical load to the socket must be 2kg or smaller for HM-10 and 5kg or smaller for HM-100. ・ There must be no impact load to the socket. -
Page 13: Customer Service
(This does not apply under circumstances (1) − (4) above.) ● Shipping and handling charges incurred for repair service must be paid by the customer. Please direct questions about customer services to HIOS Corporation or your HIOS dealer. ■ Attention The product that you have purchased contains a rechargeable battery. - Page 14 ■ Troubleshooting (before deciding the instrument has failed) Before deciding the instrument has failed, refer to the table below for troubleshooting. If this does not solve the problem, please contact your dealer or HIOS. Symptom Possible cause Action to take ・...
-
Page 15: Specifications
■ Specifications Model HM-10 HM-100 N ・ m 0.015-1.000 0.15-10.00 Peak measuring range lbf ・ in 0.15 - 9.00 1.5 - 90.0 N ・ cm 1.5-100.0 15-1000 Accuracy Within ±0.5% (F.S.) Battery pack 6V NiMH Charging time 8 hours or less... - Page 16 ■ Outline dimensional drawing (and detailed socket dimensions) “Main unit” unit:mm “Detector” Note: The dimensions of the detector in this drawing are not full-scale. - 15 -...
- Page 17 It is about 12V at the maximum torque. (Maximum torque: 9.81N ・ m for HM-100; 0.981N ・ m for HM-10) ● If you want to use it as an output unit for observed waveforms, you may need the devices below: Oscilloscope, voltage meter, analog data collection system (Keyence), data logger (Hioki), etc.
- Page 18 ■ Specifications for serial output 1. Connector pin arrangement: Mitutoyo MQ65-5P ① GND: Ground ② DATA: The data is output in the format below ③ CK: Clock ④ RD: Request for data ⑤ REQ: Request of data output from the outside ①...
- Page 19 ■ The following table is for CHINA RoHS2 If you are asked by China Customs, please show this table to them. 有害物质名称及含量标识格式 产品中有害物质的名称及含量 部件名称 有害物質 铅（pb） 汞 (Hg) 镉 (Cd) 六价铬 多溴联苯 多溴二苯醚 （CR(VI)) （PBB） （PBDE） 充电池 ○ ○ ○ ○...
