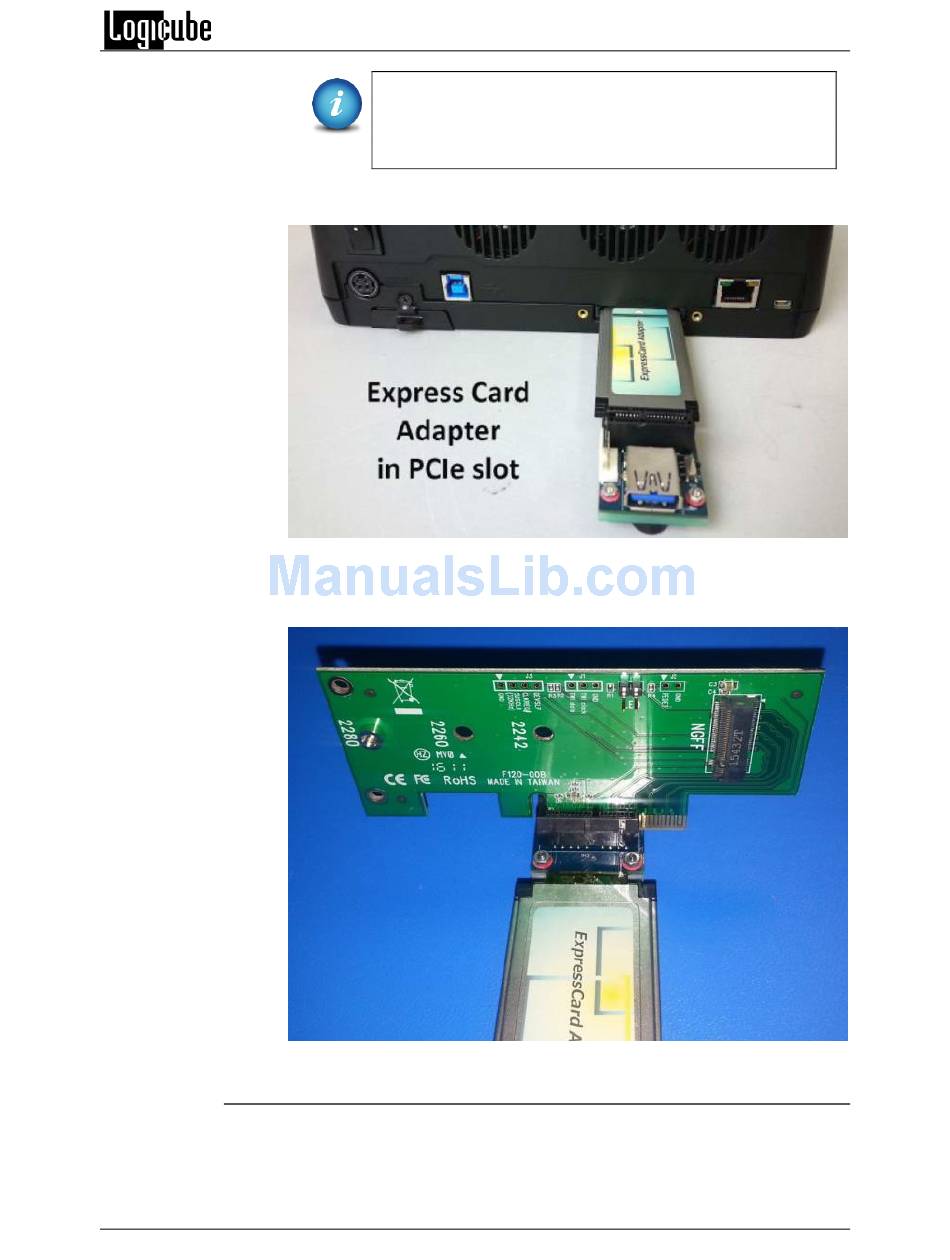

2. Connect the PCI Express Card Adapter (F-ADP-PCI-EXP) to the PCIe
3. Connect the SSD to the M.2 to PCIe Adapter (F-ADP-M.2-PCIE).
4. Connect the M.2 to PCIe Adapter (F-ADP-M.2-PCIE) to the PCI Express
12.3.2 M.2 SATA based SSDs
M.2 SATA based SSDs require the M.2 to SATA Adapter (F-ADP-M.2-SATA)
which connects directly to any of the SAS/SATA cables supplied with the
Logicube Forensic Falcon™ User's Manual
Although PCIe cards are designed to be be hot-
swappable, this is not always the case and the Falcon
should be turned off or rebooted when the PCI Express
Card Adapter is used.
port located in the back of the Falcon.
Card Adapter (F-ADP-PCI-EXP).
OPTIONAL ADAPTERS
