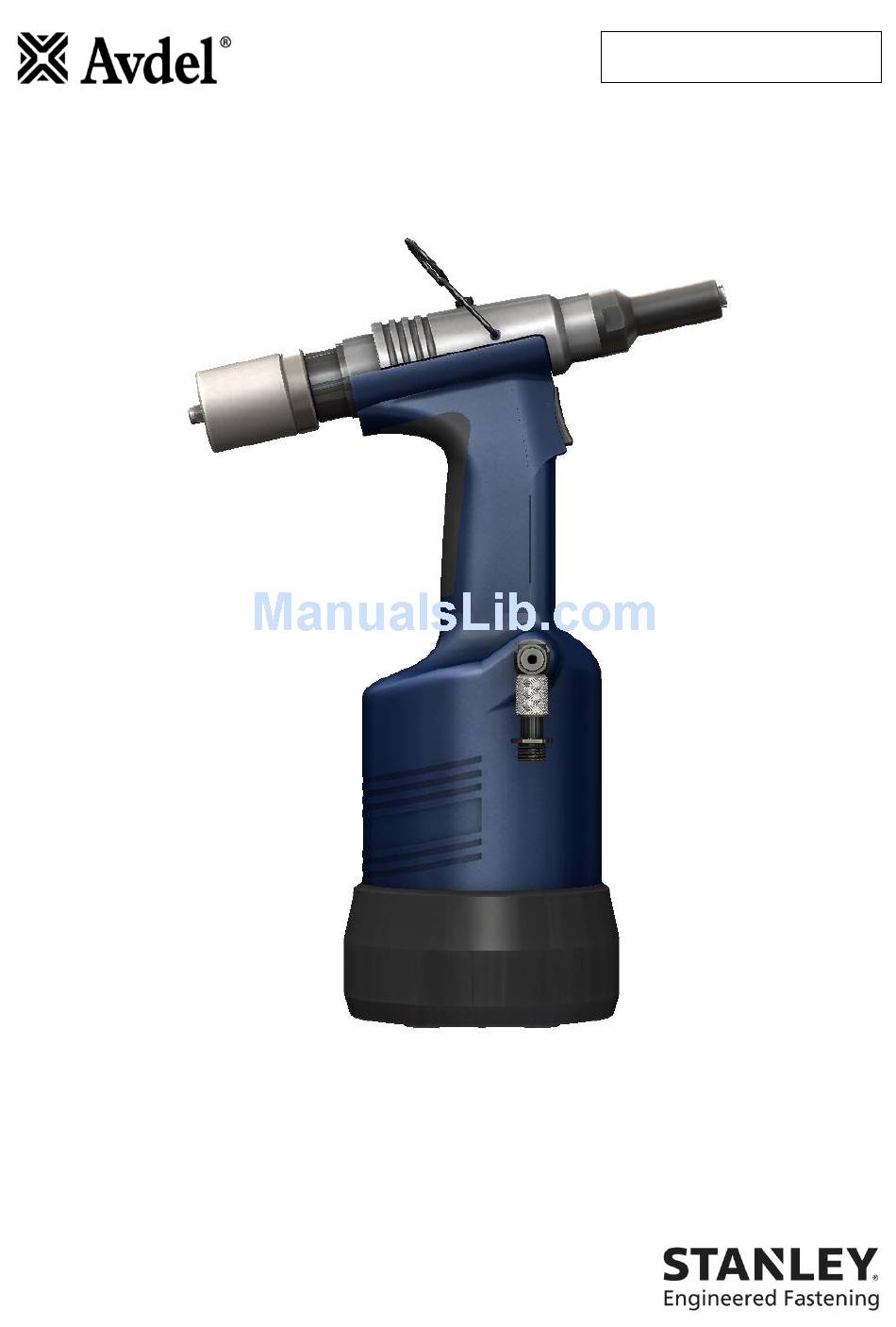

- Page 1 Original Instructions G3LB Tool – Instruction Manual Supplement. This must accompany the Manual (07900-00930) for the STD Genesis® nG3 tool G3LB Tool Hydro-Pneumatic Power Tool...
-
Page 2: Intent Of Use
Intent of Use The Genesis® nG tool must “Only” be used for placing 3/16” & 1/4” NeoBolt® as outlined in “Tool setting guide – Small diameter NeoBolt®: (07900-01071 GB) Tool Specification Air Pressure Minimum - Maximum 5-7 bar Free Air Volume Required @ 5.5 bar 4.3 litres Stroke... -
Page 3: General Assembly
General Assembly Base Tool – 71256-02000 Parts List G3LB NEOBOLT PLACING TOOL VARIANT PARTS LIST ITEM PART NUMBER DESCRIPTION ITEM PART NUMBER DESCRIPTION 71256-02001 BODY MACHINED 71256-02006 LOCK NUT 71256-02002 PISTON STOP 71256-02005 ADJUSTING NUT 71256-02003 SPRING HOUSING 07002-00098 NYLOC NUT 71256-02004 HYDRAULIC PISTON 71256-02007... - Page 4 Stroke Information The diagrams below show the minimum and maximum stroke conditions when rotating the adjusting nut 8. When the adjusting nut is unscrewed beyond the maximum allowable stroke, air will start to leak from the rear of the adjusting nut. Do not use the tool if the air leaks from the tool. When air leaks from the tool, isolate the air from the tool and then screw the adjusting nut back onto the spring housing 3.
- Page 5 Maintenance/Dismantling Instructions THE AIR LINE MUST BE DISCCONNECTED BEFORE ANY DISMANTLING IS ATTEMPTED Unscrew the Adjusting Nut 8 from the Spring Housing 3 by hand. Unscrew the Spring Housing fully 3 using a 25mmA/F spanner. Remove the Spring 6, Washer 5 and Hydraulic Piston 4 from the rear of the tool.
- Page 6 The names and logos of other companies mentioned herein may be trademarks of their respective owners. This document is for informational purposes only. Avdel UK Limited makes no warranties, expressed or implied, in this document. Data shown is subject to change without prior notice as a result of continuous product development and improvement policy.
