S e r v i c e M a n u a l
T X 2 0 0 0
B a t t e r y P o w e r e d To o l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avdel TX2000

Summary of Contents for Avdel TX2000

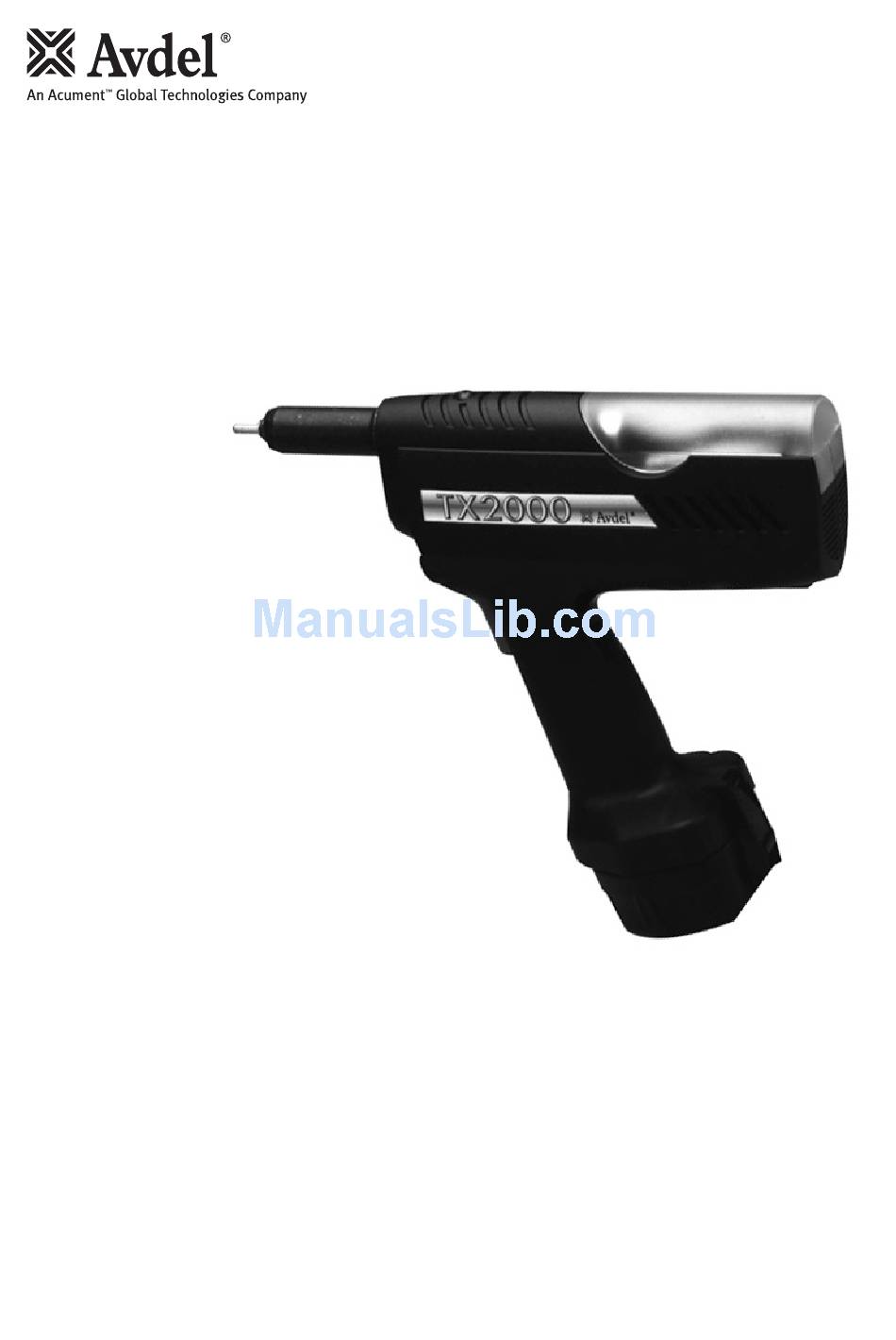

  • Page 1 S e r v i c e M a n u a l T X 2 0 0 0 B a t t e r y P o w e r e d To o l...

  • Page 3: Table Of Contents

    Assembly Diagram & Base Tool Parts List ® This manual is only for use by Avdel authorised distributors and repair centres. IMPORTANT: The warranty is invalidated if the installation tool is not identified with a relevant serial number label. The label is positioned internally, at the base of the handle, on the left moulding, 41.

  • Page 4: Annual Service

    All ‘O’ rings and seals should be renewed and lubricated with MolyKote 111 grease before assembling. • For an easy complete service, Avdel offer a complete service kit as detailed below. Service Kit: 71600-99990 Spanners are specified in inches and across flats unless otherwise stated Part No.

  • Page 5: Repairs & Major Service

    R e p a i r s a n d M a j o r S e r v i c e M o u l d e d B o d y A s s e m b l y IMPORTANT: The warranty is invalidated if the installation tool is not identified with a relevant serial number label.

  • Page 6: Pump Assembly

    R e p a i r s a n d M a j o r S e r v i c e P u m p A s s e m b l y The pump assembly includes items 29, 35, 36, 37, 49, 51 and one of the following plunger seal combinations, either seals (37 and 50 2 off) or (37, 84 and 85).

  • Page 7: Head Assembly

    R e p a i r s a n d M a j o r S e r v i c e H e a d A s s e m b l y The head assembly consists of three assembly kits, Cylinder Assembly Kit (part number 71600-99603), Piston Assembly Kit (part number 71600-99604) and Head Seal Kit (part number 71600-99605) containing items 6 to 18, 21, 22, 23, 30 and 32.

  • Page 8: Trigger Mechanism

    R e p a i r s a n d M a j o r S e r v i c e Tr i g g e r M e c h a n i s m The trigger mechanism includes items 34, 40, 58 to 69. These parts are only available as a complete Trigger Mechanism Kit (part number 71600-99606), unless a minimum order quantity is provided in the parts list.

  • Page 9: Reservoir Assembly

    R e p a i r s a n d M a j o r S e r v i c e R e s e r v o i r A s s e m b l y The reservoir assembly includes items 21, 22, 25, 78, 82 and 71 to 74. These parts are only available as a complete Reservoir Assembly Kit (part number 71600-99608), unless a minimum order quantity is provided in the parts list.

  • Page 10: Assembly Diagram & Base Tool

    G e n e r a l A s s e m b l y o f B a s e To o l 7 1 6 0 0 - 0 2 0 0 0...

  • Page 11: Parts List

    P a r t s L i s t...
  • Page 12 N o t e s...
  • Page 13 N o t e s...
  • Page 14 N o t e s...
  • Page 15 D e c l a r a t i o n o f C o n f o r m i t y We, Avdel UK Limited, Watchmead Industrial Estate, Welwyn Garden City, Herts, AL7 1LY declare under our sole responsibility that the product: Model TX2000 Serial No.
  • Page 16 Tel: +82 31 798 6340 Email: info@acument.com.au Email: AvdelDeutschland@acument.com Fax: +82 31 798 6342 Email: info@acumentkorea.com CANADA ITALY Avdel Canada, a Division of Acument Avdel Italia S.r.l. SPAIN Canada Limited Viale Lombardia 51/53 Avdel Spain S.A. 87 Disco Road 20047 Brugherio (MI)
