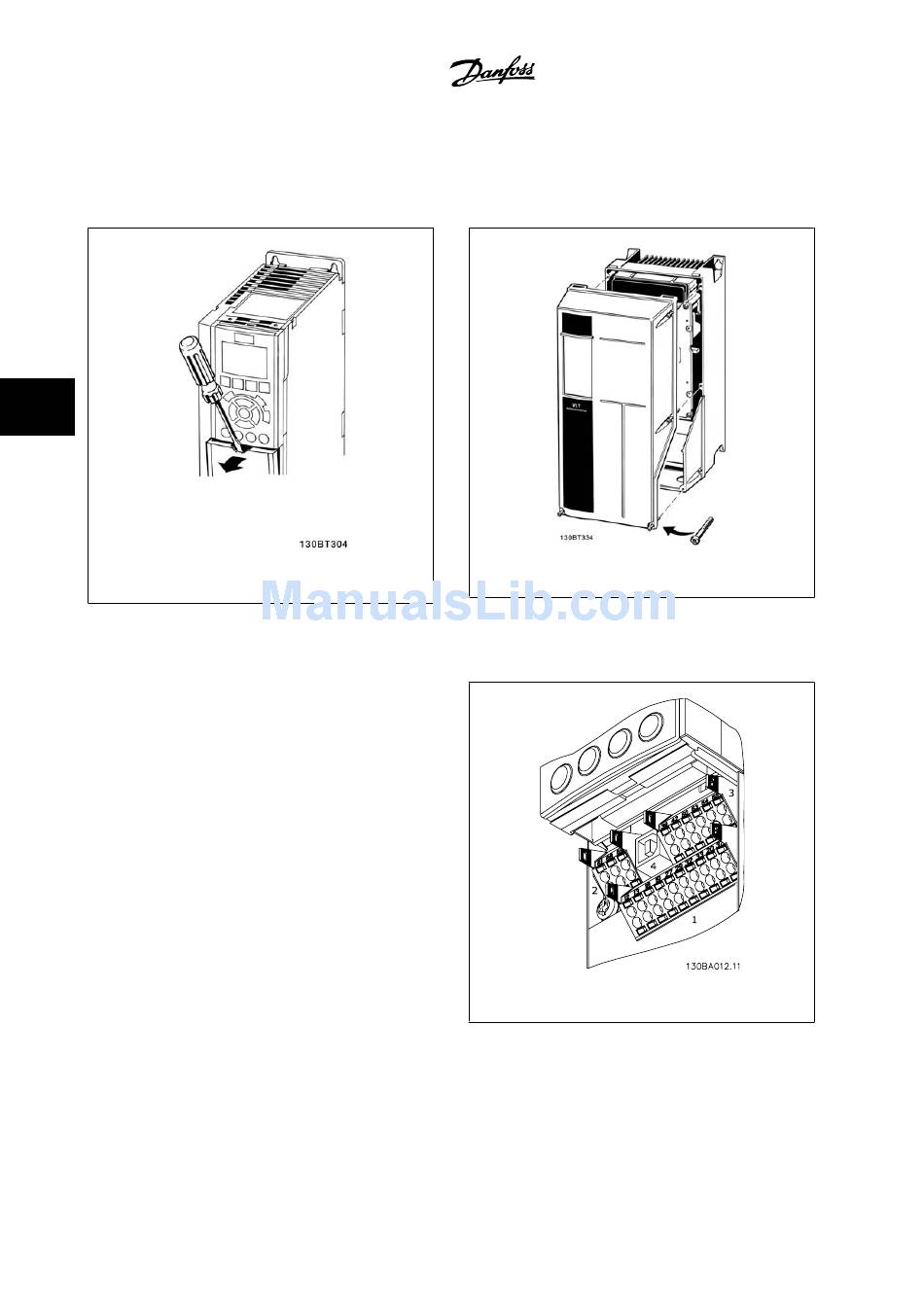

5.3.8 Access to Control Terminals
All terminals to the control cables are located underneath the terminal cover on the front of the adjustable frequency drive. Remove the terminal cover
using a screwdriver (see illustration).
5
Figure 5.17: Frame sizes A1, A2, A3,B3, B4, C3 and C4
5.3.9 Control Terminals
Drawing reference numbers:
1. 10-pole plug, digital I/O.
2. 3-pole plug, RS-485 bus.
3. 6-pole, analog I/O.
4. USB Connection.
5-26
Figure 5.18: Frame sizes A5, B1, B2, C1 and C2
Figure 5.19: Control terminals (all enclosures)
®
