VLT AQUA Drive Design Guide

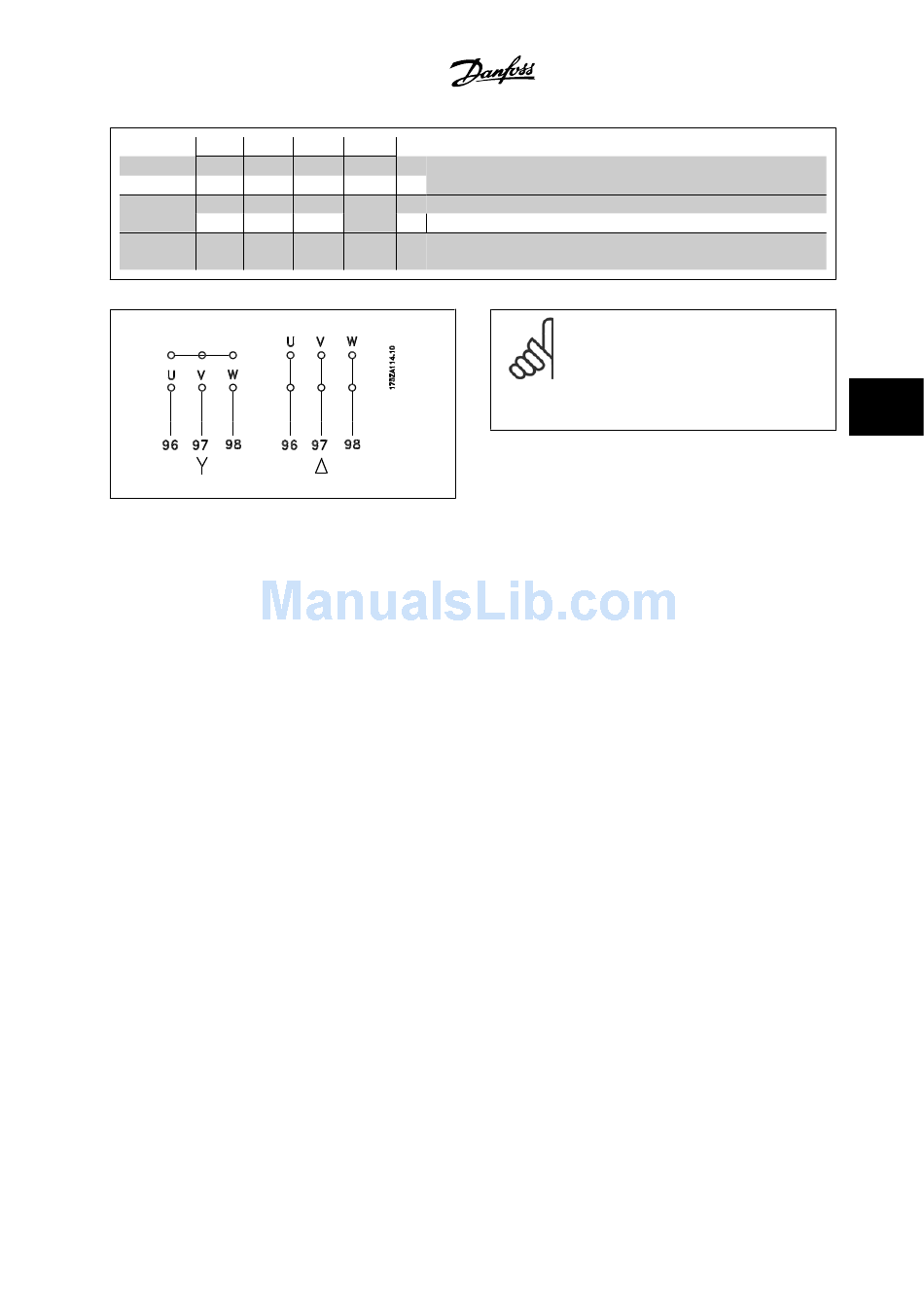

Term. no. 96 97
U V
U1 V1
W2 U2
U1 V1
1)Protected Ground Connection
98 99
W 1) Motor voltage 0–100% of AC line voltage.
PE
3 wires out of motor
W1 Delta-connected
1)
PE
V2 6 wires out of motor
W1 Star-connected U2, V2, W2
PE 1)
U2, V2 and W2 to be interconnected separately.
®
MG.20.N5.22 - VLT is a registered Danfoss trademark
NOTE!
In motors without phase insulation paper or other in-
sulation reinforcement suitable for operation with volt-
age supply (such as a adjustable frequency drive), fit
a sine-wave filter on the output of the adjustable fre-
quency drive.
