VERIFY THE PRINT JET NOZZLE LEVEL

Leveling the print jet nozzles is very important to ensure quality prints especially after replacing a print jet, an extruder assembly or the
print pad .
The Print Jet Level Gap calibration file requires all cartridge bays to be loaded with the same material type cartridges .
NOTE: Ensure the file used matches the printer model and the installed print material type. All installed cartridges
must be of the same material type . (Ex . If the cartridge bays have ABS material cartridges installed, print the ABS
Level Gap calibration file.)
These files are available at www .cubify .com/cubepro/activate. The Level Gap Calibration files are available from the Calibration Files
download link in the Free Files section of the web page .
The file names are listed below:
PLA:
• noz12_PLA_LEVELGap.cubepro (This file is for printing PLA on a CubePro Duo)
• noz123_PLA_LEVELGap.cubepro (This file is for printing PLA on a CubePro Trio)
ABS:
• noz12_ABS_LEVELGap.cubepro (This file is for printing ABS on a CubePro Duo)
• noz123_PLA_LEVELGap.cubepro (This file is for printing ABS on a CubePro Trio)
Nylon:
• noz12_NYL_LEVELGap.cubepro (This file is for printing nylon on a CubePro Duo)
• noz123_NYL_LEVELGap.cubepro (This file is for printing nylon on a CubePro Trio)

Level Nozzle Calibration Print Overview

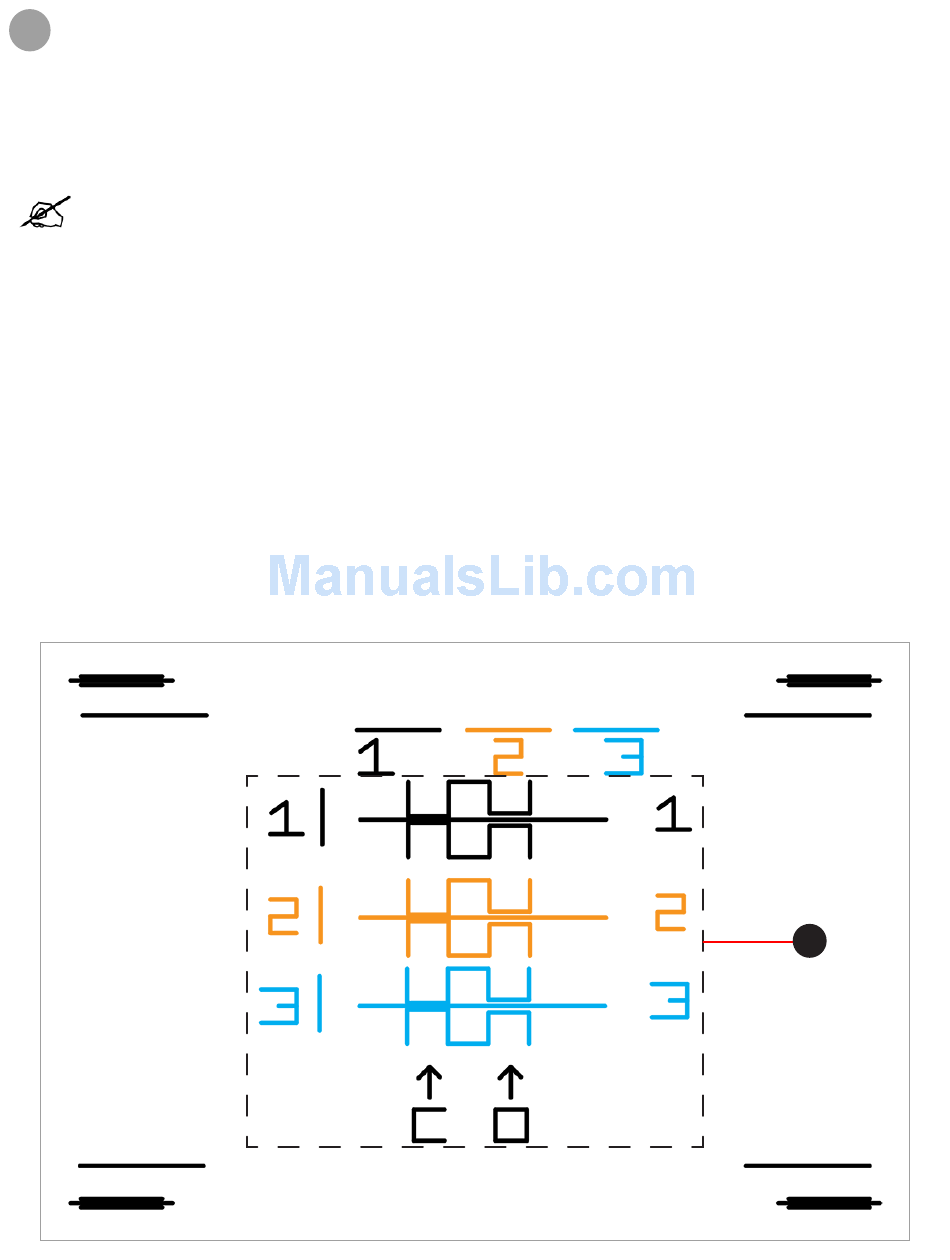

The following illustration demonstrates what you would see when the print jet nozzles are properly leveled .
A
