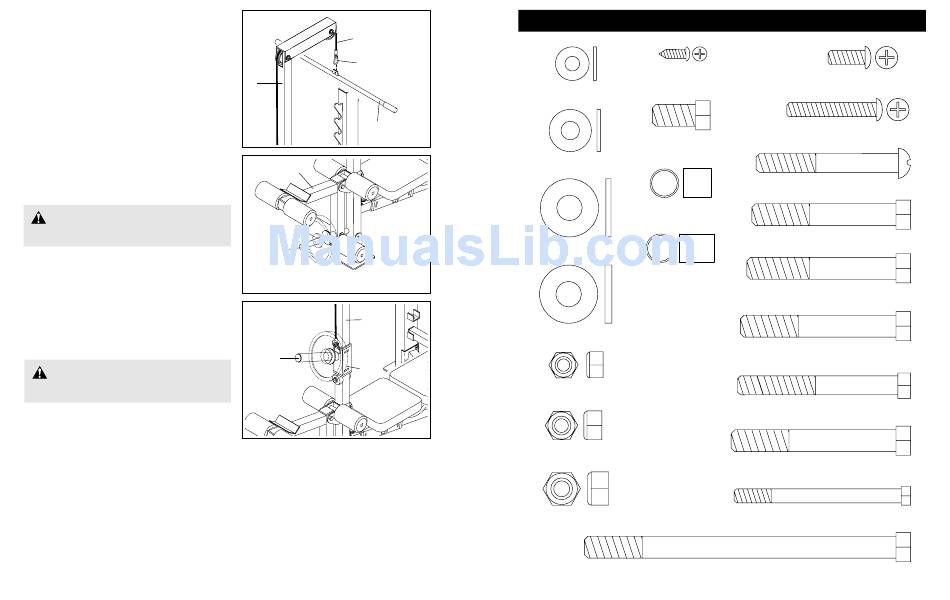

Part Identification Chart - Pro-Form 630 User Manual

ATTACHING THE LAT BAR TO THE LAT TOWER
To use the Lat Tower (9), attach the Lat Bar (51) to the
Cable (45) with a Cable Clip (40).
ATTACHING WEIGHTS TO THE LEG LEVER
To use the Leg Lever (18), slide the desired amount of
weight onto the Weight Tube (39).
WARNING:
Do not place more than
59 kilograms on the Leg Lever (18).
ATTACHING WEIGHTS TO THE WEIGHT CARRIAGE
To use the Lat Tower (9), slide the desired amount of
weight (not included) onto the Weight Tube (39) on the
Weight Carriage (37).
WARNING:
Do not place more than
59 kilograms on the Weight Carriage (37).
45
40
9
51
18
39
9
39
37
16

Part Identification Chart

M4 x 12mm Tapping Screw (64)
M6 Washer (50)
M10 x 19mm Bolt (8)
M8 Washer (23)
13mm Spacer (43)
M10 Washer (6)
Pulley Spacer (61)
Plastic Washer (21)
M6 Nylon Locknut (2)
M8 Nylon Locknut (13)
M10 Nylon Locknut (1)
M10 x 136mm Bolt (22)
R1200A
M6 x 16mm Screw (3)
M6 x 38mm Screw (4)
M8 x 62mm Bolt (66)
M10 x 63mm Bolt (33)
M10 x 65mm Bolt (67)
M10 x 68mm Bolt (34)
M8 x 70mm Bolt (52)
M10 x 72mm Bolt (59)
M6 x 73mm Bolt (7)
5
