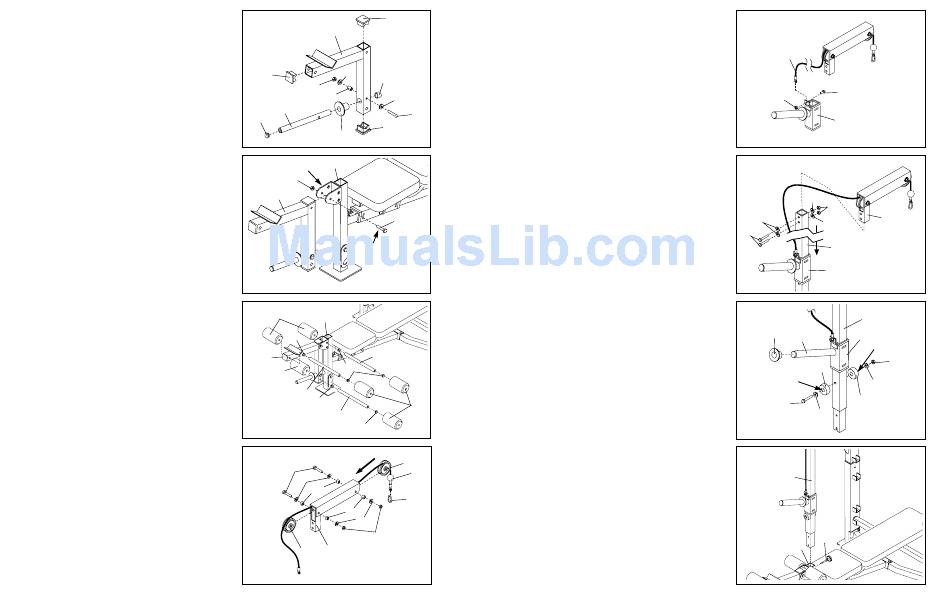

12. Note: Some of the parts used in this step may
have been pre-assembled.
Press three 50mm Square Inner Caps (17) into the
Leg Lever (18).
Insert the Weight Tube (39) into the indicated hole
in the Leg Lever (18). Attach the Weight Tube to the
Leg Lever with the M8 x 62mm Bolt (66), the 13mm
Spacer (43), two M8 Washers (23), and an M8
Nylon Locknut (13).
Press a 25mm Round Inner Cap (12) into the indi-
cated end of the Weight Tube (39). Press the Angle
Cap (49) onto the other end of the Weight Tube.
Slide a Weight Stop (62) onto the Weight Tube.
13. Lubricate the M10 x 72mm Bolt (59).
Attach the Leg Lever (18) to the bracket on the
Front Leg (19) with the M10 x 72mm Bolt (59) and
an M10 Nylon Locknut (1).
Do not overtighten the Nylon Locknut (1). You
must be able to freely pivot the Leg Lever (18).
14. Press two 20mm Round Inner Caps (54) into each
of the three Pad Tubes (46, 48).
Insert a Short Pad Tube (48) into the upper hole in
the Leg Lever (18). Insert the Long Pad Tube (46)
into the lower hole in the Leg Lever. Slide two Foam
Pads (10) onto each Pad Tube.
Insert a Short Pad Tube (48) through one set of
holes in the bracket on the Front Leg (19). Slide
two Foam Pads (10) onto the Pad Tube.
15. Feed the Cable (45) through the Pulley Bracket (60)
as shown.
Rest the Cable (45) in the groove of a Pulley (35).
Attach the Pulley to the Pulley Bracket (60) with an
M10 x 63mm Bolt (33), two M10 Washers (6), two
Pulley Spacers (61), and an M10 Nylon Locknut (1).
Rest the Cable (45) in the groove of the second
Pulley (35). Attach the Pulley to the Pulley Bracket
(60) as described above. Make sure that the
Cable runs smoothly over both Pulleys.
Attach the Cable Clip (40) to the Cable (45).
12
17
18
23
17
49
13
43
23
39
12
17
62
19
13
Bracket
1
18
59
Lubricate
14
10
19
54
48
18
54
10
48
54
46
54
15
33
6
61
61
6
1
60
35
10
16. Attach the looped end of the Cable (45) to the
Weight Carriage (37) with an M10 x 19mm Bolt (8)
and an M10 Nylon Locknut (1).
66
17. This step requires two people.
Slide the Weight Carriage (37) onto the Lat Tower
(9). Make sure that the Weight Carriage is ori-
ented as shown.
Insert the Pulley Bracket (60) into the Lat Tower (9).
Attach the Pulley Bracket with two M10 x 65mm
Bolts (67), four M10 Washers (6), and two M10
Nylon Locknuts (1).
18. Make sure that the recessed sides of the Weight
Carriage Stops (38) are facing away from the Lat
Tower (9). Use the two included socket tools to
tighten the M6 x 73mm Bolt (7) and the M6 Nylon
Locknut (2). Note: Insert a small screwdriver
through each socket tool to turn the socket tool.
Slide a Weight Stop (62) onto the weight tube on
the Weight Carriage (37).
