Installation, cont'd
Sheet Rock
Backing Clip
0.75" #6-32 Screw
Mounting Bracket
Detail A
Sheet Rock
Backing Clip
1.25" #6-32 Screw
Mounting Bracket
Detail B
Backing clip can
be in either orientation.
See Detail A or Detail B.

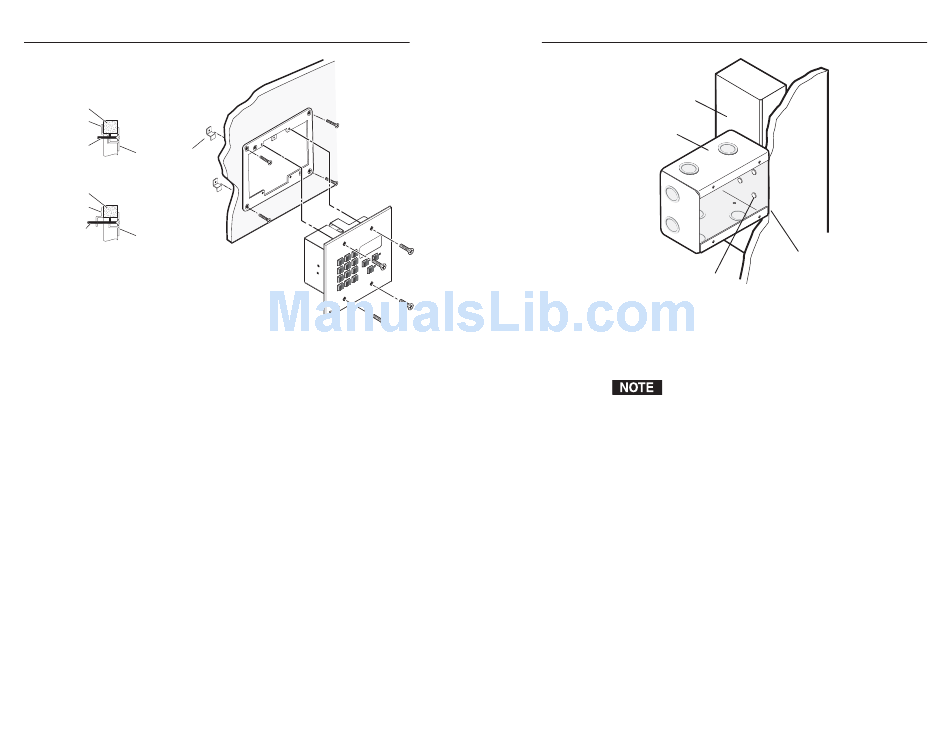

Figure 2-3 — Attaching a mud ring to a wall
If you are using a wall box, insert the wall box into the
opening; and attach it to the wall stud or furniture with
nails or screws, leaving the front edge flush with the outer
wall or furniture surface (figure 2-4).
If attaching the wall box to wood, use four #8 or #10
screws or 10-penny nails. A minimum of ½ inch (1.3 cm)
of screw threads must penetrate the wood.
If attaching the wall box to metal studs or furniture, use
four #8 or #10 self-tapping sheet metal screws or machine
bolts with matching nuts.
2-6
MKP 2000 Remote Control Panel • Installation
3
U T
T P
2
O U
1
6
U T
IN P
5
R
K E
4
9
TA
8
E L
7
N C
C A
0
0
0 0
C K
B A
P 2
M K
Extron
MKP 2000
Wall Stud
Wall Box
Screws or Nails
Figure 2-4 — Attaching a wall box to a wall stud
8.
Connect the Ethernet and/or RS-232 cable (as appropriate)
and the power cable, and test the MKP before fastening the
control panel into the wall box. See "Rear Panel and Side
Panel Connections" on page 2-8, for details.
The rear panel connectors will be inaccessible after
installation.
Mounting the MKP to the mounting bracket (mud
ring) or wall box
1.
Remove power from the control panel by disconnecting
the power supply.
2.
Place the control panel through the opening in the wall or
furniture and through the mud ring or into the wall box.
Take care not to damage the cables, which fit behind the
MKP, at the back of the wall box.
3.
Mount the MKP's faceplate to the mud ring or wall box
with machine screws (figure 2-5).
MKP 2000 Remote Control Panel • Installation
Flush with
Wall Surface
2-7
