Local Operation, cont'd
MKP 2000's
IP Address
MKP 2000's
Subnet Mask
MKP 2000's
Gateway
Address
Matrix
Switcher's
IP Address
Host Control
Setting
Connection
Priority

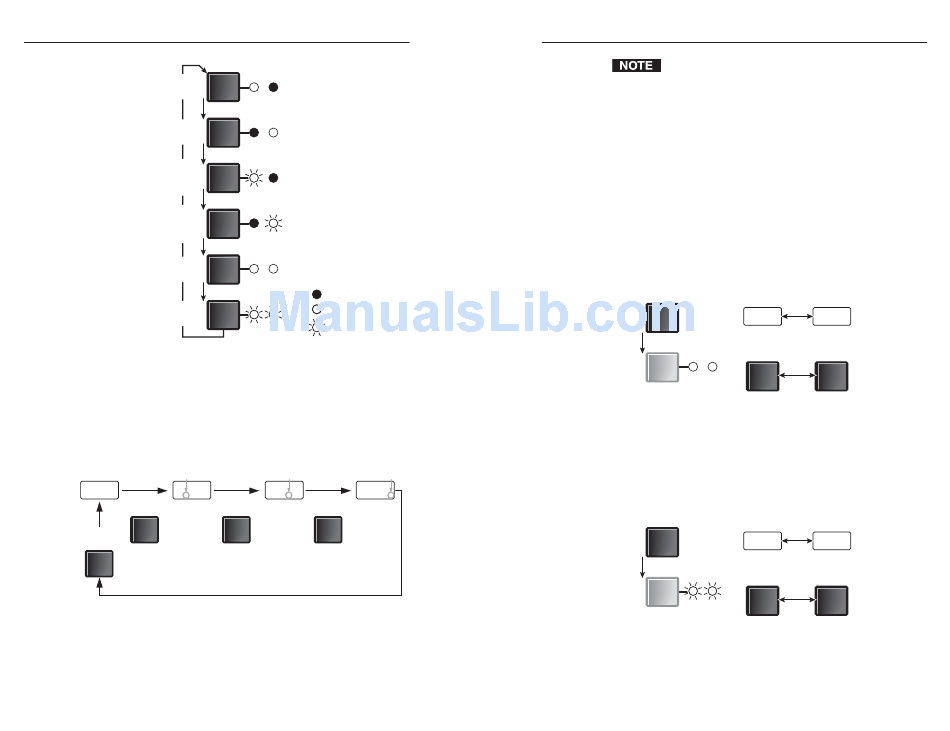

Figure 3-3 — Selecting different addresses
• Press the Output button to change the octet of the
selected IP address that is shown in the LED display,
or to switch between host control and primary/
secondary settings (figure 3-4).
The LED display The LED display
shows the IP shows the
address's first octet. second octet.
No dot Dot
1 9 2 1 6 8 .
Press
OUTPUT
Press
OUTPUT
Figure 3-4 — Selecting octet fields
3-6 MKP 2000 Remote Control Panel • Local Operation
INPUT
OUTPUT The Input and Output
LEDs blink or light
steadily to indicate
the value shown in
INPUT
the LED display.
OUTPUT
INPUT
OUTPUT
INPUT
OUTPUT
INPUT
OUTPUT
= Unlit LED
INPUT
OUTPUT
= Lit LED
= Blinking LED
The LED display The LED display
shows the third shows the fourth
octet. octet.
Dot Dot
2 5 4 . 2 5 3 .
Press Press
OUTPUT OUTPUT
The position or absence of a dot (period) in the display
indicates the octet that is displayed. In the example in
figure 3-4, the IP address is the MKP's default address,
192.168.254.253. Each octet of an IP address can be
edited when it is displayed.
2. Use the Input and Output buttons to select and display the
desired address and octet.
3. Press the Cancel button to clear the octet to 000.
4. Use the 0 through 9 buttons to enter the desired octet value.
5. Repeat steps 2 through 4 to select and change other
addresses and/or octets.
6. Use the Input button to select the host control setting
display (figure 3-5).
Press the Output button until Input and
Output LEDs both light steadily.
INPUT
n
OP
No
Pass-through
INPUT
OUTPUT
OUTPUT
Figure 3-5 — Selecting the host control setting
7. If necessary, use the Output button to toggle the host
control setting between pass-through and no pass-through.
8. Use the Input button to select the connection priority
display (figure 3-6).
Press the Output button until Input and
Output LEDs both blink.
INPUT
Pri
Connected to
Switcher
INPUT
OUTPUT
OUTPUT
Figure 3-6 — Selecting the connection priority
setting
MKP 2000 Remote Control Panel • Local Operation
PAS
Port
Pass-through
OUTPUT
SEC
Control Though
Primary (RS-232)
OUTPUT
