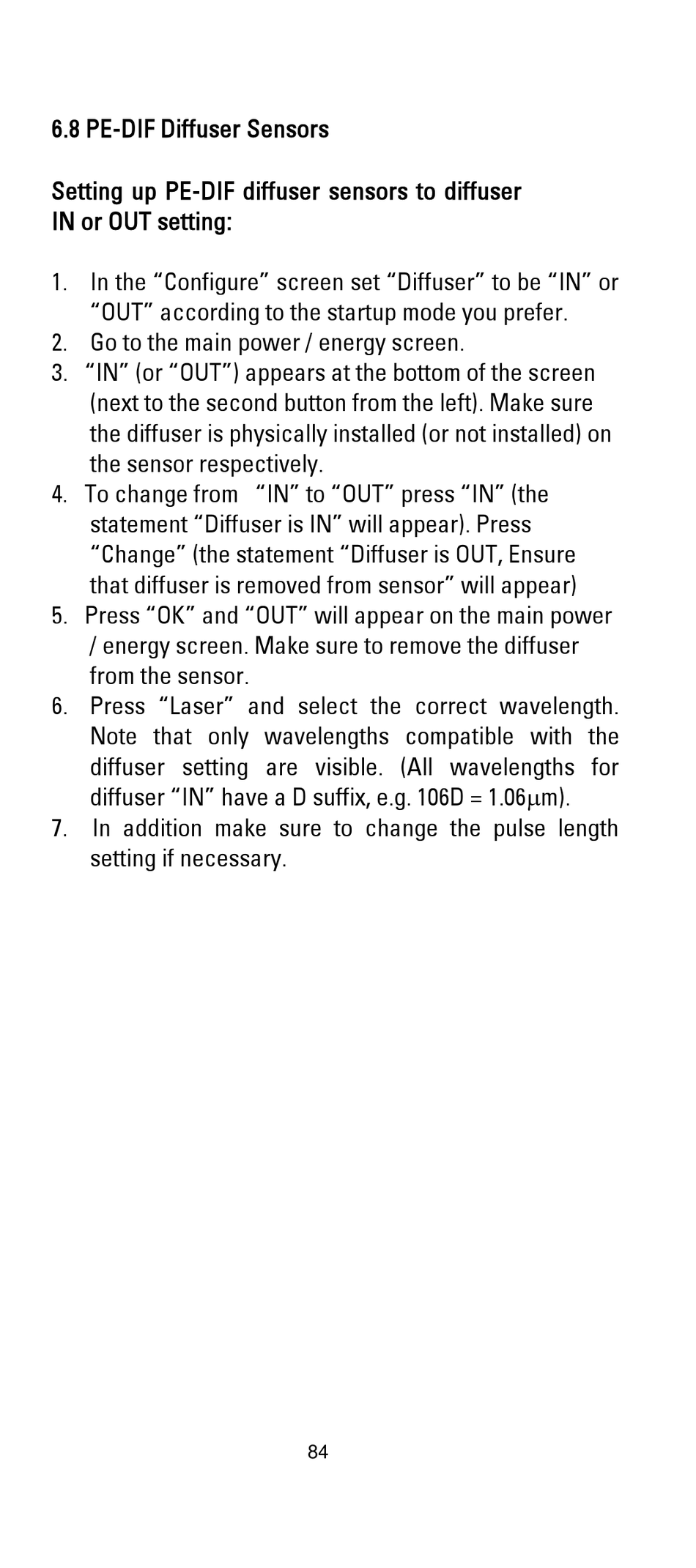

6.8 PE-DIF Diffuser Sensors

Setting up PE-DIF diffuser sensors to diffuser
IN or OUT setting:
1. In the "Configure" screen set "Diffuser" to be "IN" or
"OUT" according to the startup mode you prefer.
2. Go to the main power / energy screen.
3. "IN" (or "OUT") appears at the bottom of the screen
(next to the second button from the left). Make sure
the diffuser is physically installed (or not installed) on
the sensor respectively.
4. To change from "IN" to "OUT" press "IN" (the
statement "Diffuser is IN" will appear). Press
"Change" (the statement "Diffuser is OUT, Ensure
that diffuser is removed from sensor" will appear)
5. Press "OK" and "OUT" will appear on the main power
/ energy screen. Make sure to remove the diffuser
from the sensor.
6. Press "Laser" and select the correct wavelength.
Note that only wavelengths compatible with the
diffuser setting are visible. (All wavelengths for
diffuser "IN" have a D suffix, e.g. 106D = 1.06m).
7. In addition make sure to change the pulse length
setting if necessary.
