To avoid damage during transport, you should transport
the unit to the final installation location in its original
packaging (with packaging on the wooden pallet), using
a lifting truck.
If it is not possible to transport the unit to the final
installation location using a lifting truck, you can also
transport the heat pump using a hand truck.

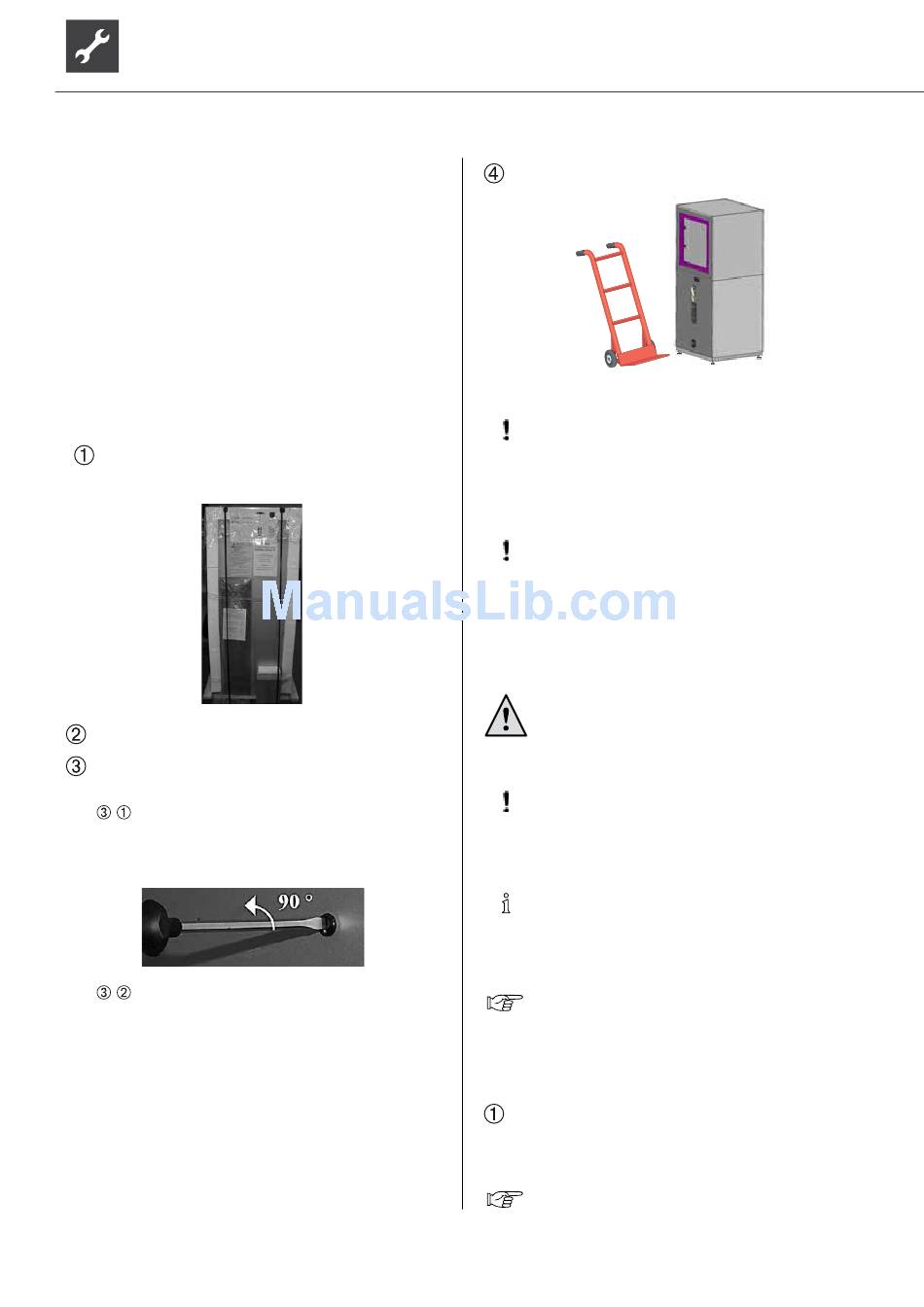

TRANSPORT WITH A HAND TRUCK
In order to reduce the weight of the unit for additional
transportation, we recommend using a hand truck to
remove the lower side walls and the lower front wall
prior to moving.
P Remove packaging and set extra box aside (will be
needed later on!)...
Lift unit from pallet.
Remove lower side panels and bottom front panel
of the unit...
•
To do so, loosen the quick-release screws. Turn
counter-clockwise 90°.
•
Lift side panels and set aside in a safe place...
12
Subject to change without notice | 83050400fUK – Translation into English of the original German operating manual | ait-deutschland GmbH
Push hand truck under the unit (= rear side of unit).
Alpha InnoTec GmbH
ATTENTION
If the hand truck is pushed under the unit on the
back side of the unit, make sure not to damage
any connections during transport.
CAUTION.
Transport with a hand truck on the front side of
the unit is not permitted.

INSTALLATION

DANGER!
Several people are required to install the
unit.
ATTENTION
Do not tilt the unit more than a maximum of 45°
(in any direction).
NOTICE.
Always observe the installation plan for the re-
spective model. Note the size and minimum
clearances.
Installation plan for respective model.
Set up the unit so that the switch cabinet side
(= operating side) is accessible at all times.
If you have not already done so, remove angle
bracket, transport and packaging material from the
unit. Set the extra box to the side and lift the unit
from the wooden pallet...
"Transport with a hand truck".
