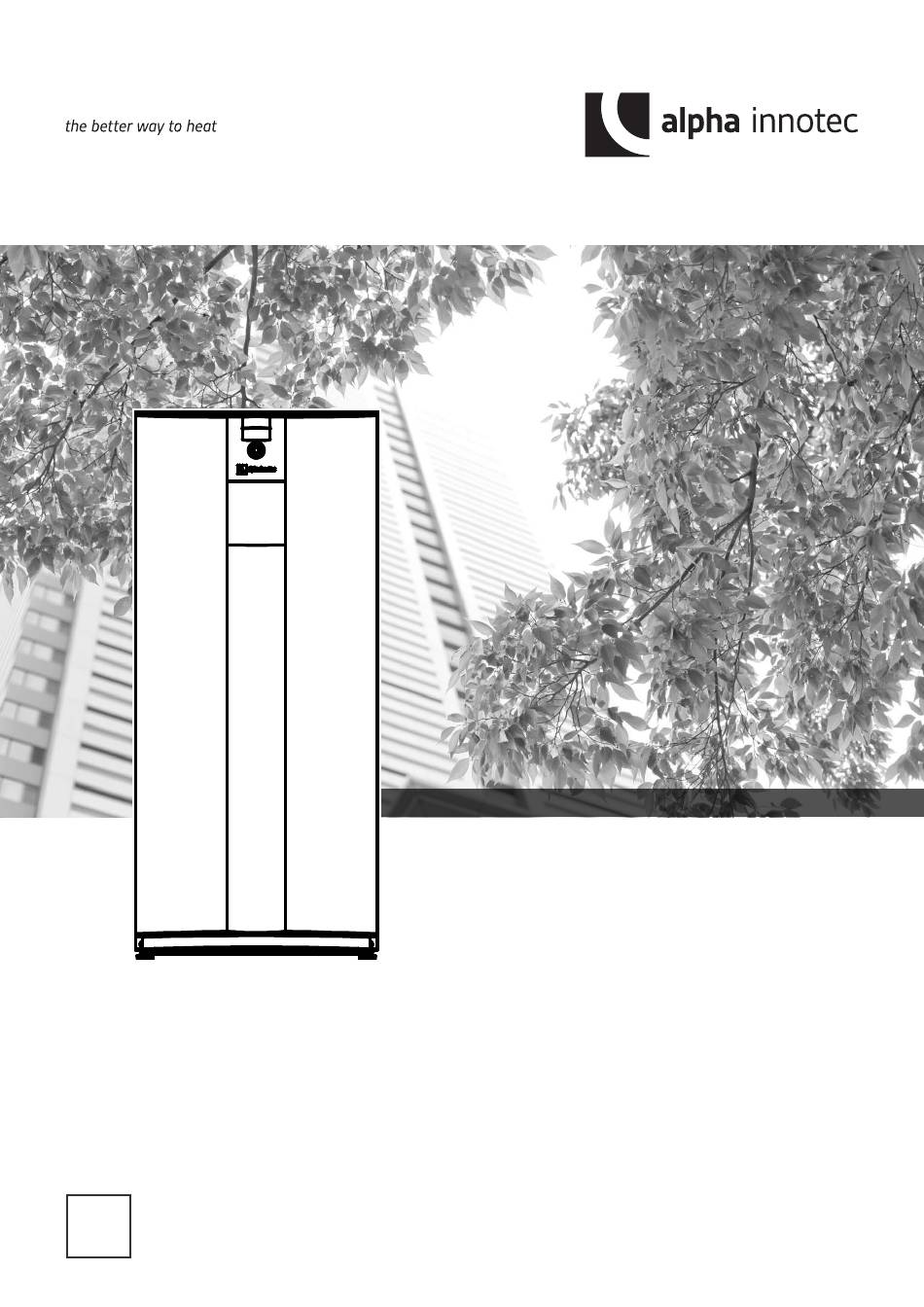

  • Page 1 Air/Water Heat Pumps Indoor installation Operating Manual LWCV – series 83059000gUK - Translation of the original operating manual...

  • Page 2: Table Of Contents

    Table of contents 9 Flushing, filling and venting About this operating manual ...... 18 ...... 3 Heating water quality ......18 Validity ............3 9.2 Flush and fill the heating and domestic hot Reference documents ....... 3 water charging circuit ......18 Symbols and markings ......3 Contact ............4 10 Insulate hydraulic connections ....

  • Page 3: About This Operating Manual

    About this operating manual 1.3 Symbols and markings Identification of warnings This operating manual is part of the unit. ► Before working on or with the unit read the Symbol Meaning operating manual carefully and follow it for all Safety-relevant information. activities at all times, especially the warnings and Warning of physical injuries.

  • Page 4: Contact

    ● Germany: www.alpha-innotec.de ► Ensure that the personnel is familiar with the local ● www.alpha-innotec.com regulations, especially those on safe and hazard- aware working.

  • Page 5: Disposal

    Injuries and environmental damage due to Improper action refrigerant Requirements for minimum scale and corrosion damage in hot water heating systems: The unit contains harmful and environmentally dangerous refrigerant. If refrigerant leaks from the unit: ● Proper planning, design and commissioning Switch off unit.

  • Page 6: Description

    Description 3.1 Delivery condition 1 Heat pump module 2 Compact module The compact module 1 Switch box cover 2 Blind cover and louvre grille 3 Side wall (2-piece) and cover 4 Rear wall 5 Side wall (complete) 6 Front wall 7 Supporting crosspiece (left and right;...
  • Page 7 The refrigerant circuit module 1 Condensate nozzle 2 Cover for electrical connections 3 Pre-finished connection kit, heat pump module / compact module 4 Manometer, safety valve 5 3 x ball valves with flushing device 6 3 x copper piping for hydraulic connection to the heating system 1 Plug connection to the fan module 2 Electrical switch box The heat pump module 3 Expansion valve (cooling, defrost)

  • Page 8: Accessories

    3.4 Function Control panel Liquid refrigerant is evaporated (evaporator), the ener- gy for this process is environmental heat and comes from the outside air. The gaseous refrigerant is com- pressed (compressor), this causes the pressure to rise and therefore the temperature too. The gaseous refrig- erant with high temperature is liquefied (condenser).

  • Page 9: Operation And Care

    Operation and care Delivery, storage, transport and installation NOTE The unit is operated via the control panel IMPORTANT of the heating and heat pump controller Damage to the housing and the unit components ( operating manual of the heating and due to heavy objects. heat pump controller).

  • Page 10: Storage

    Package 4: ► Transport the unit preferably with a pallet truck, al- ternatively with a handcart or by carrying ● Documents (manuals, ERP data and label) ► Do not tilt the heat pump module by more than 45°. ● Installation instructions ●...
  • Page 11 Carrying the compact module Break off the projecting struts on the supporting crosspieces. ► Carry the compact module to the installation site using the 4 lashing straps. Use two carrying loops on each side ► The compact module can also be carried on end, with the switch box at the top.

  • Page 12: Installation

    5.4 Installation Transporting the heat pump module with a handcart CAUTION Load the heat pump module only with the narrow In the air outlet area the air temperature is side, left or right, on the handcart. approx. 5° K below the ambient temperature. Under certain climatic conditions an ice layer can therefore form in the air outlet area.
  • Page 13 Remove the two lashing straps. NOTE The sound emissions of the heat pumps must be taken into account in the respective instal- lation plans for air/water heat pumps. The re- spective regional regulations must be com- plied with. Aligning the unit Align the compact module horizontally and stably in the installation site using the height-adjustable feet and a size 13 spanner.

  • Page 14: Installation Of Air Ducting

    Hydraulic installation 5.5 Installation of air ducting Left air discharge Right air discharge NOTE If an existing system is being replaced, the old vibration decouplers cannot be reused. NOTE Before connection to the heating system, the heating circuit must be thoroughly flushed. IMPORTANT Damage to the copper pipes due to unacceptable loading! ►...

  • Page 15: Connect The Unit To The Heating Circuit

    6.2 Connect the unit to the heating or on the left circuit Install the compression fittings and ball valves IMPORTANT Leaks or fracture of the union nut due to excessive force! ► Tighten the union nut only as far as described below. Check pipe ends scratches, dirt deformation.

  • Page 16: Condensate Connection

    6.3 Condensate connection 7.2 Connect the electrical cables The outlet for the hot water safety valve and the IMPORTANT condensate from the air must be drained off in accordance Irreparable damage to the compressor due to with the respective applicable standards and regulations. wrong rotating field! Discharging the condensate and the outlet for the safety valve into the sewers is permitted only via a funnel waste ►...

  • Page 17: Installing The Control Panel

    Installing the control panel NOTE The control panel can be inserted in a recess in the front panel of the unit or can be installed on the wall.  Heat pump installation instructions 8.1 Mount the control panel on the wall and connect Release the rear bracket from the control panel.

  • Page 18: Connections Of The Control Panel

    8.2 Connections of the control panel Advantages of low-salt operation: ● Low corrosion-promoting properties ● No formation of mineral scale ● Ideal for closed heating circuits ● Ideal pH value due to self-alkalisation after filling the system ► If the required water quality is not achieved, con- sult a company specialising in the treatment of 1 Room control panel RBE RS 485 (accessory) heating water.

  • Page 19: Insulate Hydraulic Connections

    Pull the valve motor (1) carefully off the 3-way 11. Ensure that the U-clip has latched into position switching valve (3). correctly: Turn the spindle of the 3-way switching valve so  Valve motor sits securely on the 3-way switch- that the rounded side of the spindle points in the ing valve direction of marking A of the connections of the...

  • Page 20: Commissioning

    If you leave the “Set bypass valve” menu or after one hour at the latest, the circulation pump switches back to its standard regulation. Open valves to heating circuit. 12 Commissioning CAUTION The unit may only be started up if the air ducts, weather and/or rain louvres have been installed and the facing panels are closed.

  • Page 21: Maintenance

    Check the evaporator and the condensate Arrange for the heat pump system to be commissioned by after-sales service authorised pan and clean them, if required by the manufacturer; this is a chargeable service. Remove the front panel, the side panels and the cover, thus gaining access to the cover of the cleaning opening (1).

  • Page 22: Clean And Flush Condenser

    13.3 Clean and flush condenser ► Press the reset button back in again. ► If the safety temperature limiter trips again, ► Clean and flush the condenser in accordance with contact the local partner of the manufacturer or the manufacturer's instructions. the factory's customer service. ► After flushing the condenser with chemical cleaning product: Neutralise any residues and flush the condenser thoroughly with water.

  • Page 23: Technical Data / Scope Of Supply

    Technical data / Scope of supply LWCV Performance data Values in brackets: (1 Compressor) LWCV 82R1/3 LWCV 122R3 Heating capacity | COP for A10/W35 acc. to EN14511 Partial load operation kW | COP 3,18 ı 5,25 5,50 ı 5,10 for A7/W35 acc. to EN14511 Partial load operation kW | COP 2,81 ı...

  • Page 24: Performance Curves

    Performance curves / operating limits / heating LWCV 82R1/3 Qh min/max [kW] Pel min/max [kW] 35°C 55°C 35°C 55°C -25 -20 -15 -10 Temp„ [°C] Temp„ [°C] ∆pmax [bar] “ ” [m³/h] Temp„ [°C] 823292 c Legende: Volumenstrom Heizwasser TempWQ Temperatur Wärmequelle Keys: 823292c Keys: 823292c...
  • Page 25 Performance curves / cooling LWCV 82R1/3 Pel min/max [kW] Q0 min/max [kW] °C °C 7 °C 7 °C 18°C 18 °C Temp [°C] Temp [°C] ∆pmax [bar] Temp [°C] “ [m³/h] 823292 c Legende: Volumenstrom Kühlwasser Keys: 823292c Keys: 823292c TempWS Temperatur Wärmesenke “...

  • Page 26: Lwcv 122R3

    Performance curves / operating limits / heating LWCV 122R3 Qh min/max [kW] Pel min/max [kW] 35°C 55°C 35°C 55°C -25 -20 -15 -10 Temp„ [°C] Temp„ [°C] ∆pmax [bar] “ ” [m³/h] Temp„ [°C] 823293 c Legende: Volumenstrom Heizwasser TempWQ Temperatur Wärmequelle Qh min/max minimale/maximale Heizleistung...
  • Page 27 Performance curves / cooling LWCV 122R3 Q0 min/max [kW] Pel min/max [kW] 7°C 18°C 7°C 18°C Temp [°C] Temp [°C] ∆pmax [bar] “ [m³/h] Temp [°C] 823293 c Legende: Volumenstrom Kühlwasser TempWS Temperatur Wärmesenke Q0 min/max Q0 min/max minimale/maximale Kühlleistung Keys: 823293c Keys: 823293c Pel min/max...

  • Page 28: Dimensonal Drawings

    Dimensonal drawing 1 LWCV ~1880 ~770 ~670 ~570 ~350 ~250 ~150 128 (> 50) 447 (>50) Keys: UK819474 Keys: UK819474 Pos. Bezeichnung Dimension Lieferumfang All dimensions in mm. All dimensions in mm. Pos. Pos. Name Name Dim. Dim. incl. scope of supply incl.
  • Page 29 LWCV Dimensonal drawing 2 Keys: UK819474 Keys: UK819474 Legende: D819474 Alle Maße in mm. All dimensions in mm. All dimensions in mm. Wärmepumpenmodul Vorderansicht Pos. Pos. Name Name Wärmepumpenmodul Seitenansicht von links A1 A1 Heat pump module front view Heat pump module front view Ventilatormodul Vorderansicht Ventilatormodul Seitenansicht von links B1 B1...

  • Page 30: Connections Ball Valves

    Connections ball valves Ø28 Rp 1" Rp 3/4" ~135 Ø28 Rp 1" Rp 3/4" ~135 Rp 1" Ø28 Rp 1" Ø28 Control panel Schutzvermerk ISO 16016 beachten Schutzvermerk ISO 16016 beachten Wall-mounting bracket PEP 018/2016 Zust. Änderungstext Ø6 Ø6 Zust. Än Blattformat: A4 hoch 1:30 Allgemein-...

  • Page 31: Installation Plans

    Installation plan V1 + 20 ≥600 ≥600 >2270 Dim. Dim. Pos. Pos. Name Name 1330 1330 B1 B1 If finished wall thickness 240 to 320 If finished wall thickness 240 to 320 1250 1250 If finished wall thickness 320 to 400 If finished wall thickness 320 to 400 B2 B2 If finished wall thickness 240 to 320 If finished wall thickness 240 to 320 If finished wall thickness 320 to 400 If finished wall thickness 320 to 400 Accessory: Wall duct 800x800x420 Accessory: Wall duct 800x800x420 Accessory: Air duct 700x700x450 Accessory: Air duct 700x700x450 Legende: 819470...
  • Page 32 Installation plan V2 + 20 + 20 ≥600 ≥600 ≥600 ≥600 >2270 >2270 Dim. Dim. Pos. Pos. Name Name 1330 1330 B1 B1 If finished wall thickness 240 to 320 If finished wall thickness 240 to 320 1250 1250 If finished wall thickness 320 to 400 If finished wall thickness 320 to 400 B2 B2 If finished wall thickness 240 to 320 If finished wall thickness 240 to 320 If finished wall thickness 320 to 400 If finished wall thickness 320 to 400 Accessory: Wall duct 800x800x420 Accessory: Wall duct 800x800x420 Accessory: Air duct 700x700x450 Accessory: Air duct 700x700x450 Legende:...
  • Page 33 Installation plan V3 + 20 + 20 + 20 + 20 1280 1280 ≥600 ≥600 ≥600 ≥600 Dim. Dim. Pos. Pos. Name Name B2 B2 If finished wall thickness 240 to 320 If finished wall thickness 240 to 320 If finished wall thickness 320 to 400 If finished wall thickness 320 to 400 >2860 >2860 Accessory: Wall duct 800x800x420 Accessory: Wall duct 800x800x420 Accessory: Air duct 700x700x450 Accessory: Air duct 700x700x450 Accessory: Air duct bend 700x700x750 Accessory: Air duct bend 700x700x750...
  • Page 34 Installation plan V4 + 20 + 20 1280 ≥600 ≥600 Dim. Dim. Pos. Pos. Name Name B2 B2 If finished wall thickness 240 to 320 If finished wall thickness 240 to 320 >2860 If finished wall thickness 320 to 400 If finished wall thickness 320 to 400 Accessory: Wall duct 800x800x420 Accessory: Wall duct 800x800x420 Accessory: Air duct 700x700x450 Accessory: Air duct 700x700x450 Accessory: Air duct bend 700x700x750 Accessory: Air duct bend 700x700x750 Installation above ground level Installation above ground level...
  • Page 35 Installation plan V5 + 20 + 20 2280 ≥600 ≥600 >3860 Dim. Dim. Pos. Pos. Name Name B2 B2 If finished wall thickness 240 to 320 If finished wall thickness 240 to 320 If finished wall thickness 320 to 400 If finished wall thickness 320 to 400 Accessory: Wall duct 800x800x420 Accessory: Wall duct 800x800x420 Accessory: Air duct 700x700x450 Accessory: Air duct 700x700x450 Legende: 819470 Technische Änderungen vorbehalten.
  • Page 36 Installation plan V6 + 20 + 20 2280 ≥600 ≥600 >3860 Dim. Dim. Pos. Pos. Name Name B2 B2 If finished wall thickness 240 to 320 If finished wall thickness 240 to 320 If finished wall thickness 320 to 400 If finished wall thickness 320 to 400 Accessory: Wall duct 800x800x420 Accessory: Wall duct 800x800x420 Accessory: Air duct 700x700x450 Accessory: Air duct 700x700x450 Legende: 819470 Accessory: Air duct 700x700x1000 Accessory: Air duct 700x700x1000...
  • Page 37 Installation plan V7 + 20 + 20 ≥600 ≥200 ≥600 ≥200 >1670 Pos. Bezeichnung Maß Pos. Bezeichnung >1670 Bei Fertigwandstärke 240 bis 320 Zubehör: Wanddurchführung 800x800x420 Bei Fertigwandstärke 320 bis 400 Zubehör: Luftkanal 700x700x450 Pos. Bezeichnung Maß Pos. Bezeichnung Keys: 819470 Keys: 819470 Bei Fertigwandstärke 240 bis 320 Einbau über Erdgleiche...
  • Page 38 Installation plan V8 + 20 + 20 + 20 ≥200 ≥600 ≥200 ≥600 ≥200 ≥600 >1670 Pos. Bezeichnung >1670 Maß Pos. Bezeichnung >1670 Bei Fertigwandstärke 240 bis 320 Zubehör: Wanddurchführung 800x800x420 Pos. Bezeichnung Maß Pos. Bezeichnung Bei Fertigwandstärke 320 bis 400 Zubehör: Luftkanal 700x700x450 Pos.

  • Page 39: Hydraulic Integration

    Hydraulic integration LWCV ZWE1 8371219 Subject to change without notice | 83059000gUK – Translation of the original operating manual | ait-deutschland GmbH...

  • Page 40: Keys Hydraulic Integration

    Subject to change without notice | 83059000gUK – Translation of the original operating manual | ait-deutschland GmbH...

  • Page 41: Terminal Diagrams

    LWCV Terminal diagram OUT8 OUT7 OUT6 OUT5 OUT4 OUT3 OUT2 OUT1 NTC1 GND1 NTC2 GND2 NTC3 GND3 NTC4 GND4 NTC5 TRL ext. GND5 NTC6 GND6 NTC7 GND7 NTC8 GND8 NTC9 GND9 AGP1 AIN1 AGP2 AIN2 AGND1 AOUT1 AGND2 AOUT2 -X10 -X11 white blue...

  • Page 42: Mains Connection Lwcv 82R1/3 1~230V + Electric Heating Element 3~400V

    Mains connection LWCV 82R1/3 1~230V + electric heating element 3~400V 3~N/PE/400V/50Hz 1~N/PE/230V/50Hz 1~N/PE/230V/50Hz Subject to change without notice | 83059000gUK – Translation of the original operating manual | ait-deutschland GmbH...

  • Page 43: Mains Connection Lwcv 82R1/3 1~230V + Electric Heating Element 1~230V

    Mains connection LWCV 82R1/3 1~230V + electric heating element 1~230V 1~N/PE/230V/50Hz 1~N/PE/230V/50Hz 1~N/PE/230V/50Hz Subject to change without notice | 83059000gUK – Translation of the original operating manual | ait-deutschland GmbH...

  • Page 44: Mains Connection Lwcv 122R3 3~400V + Electric Heating Element 3~400V

    Mains connection LWCV 122R3 3~400V + electric heating element 3~400V 3~N/PE/400V/50Hz 3~N/PE/400V/50Hz 1~N/PE/230V/50Hz Subject to change without notice | 83059000gUK – Translation of the original operating manual | ait-deutschland GmbH...

  • Page 45: Circuit Diagrams

    LWCV Compact module Circuit diagram 1/2 gn/ge Blue Brown Black Grey white blue green white / blue brown brown yellow yellow Subject to change without notice | 83059000gUK – Translation of the original operating manual | ait-deutschland GmbH...
  • Page 46 Circuit diagram 2/2 LWCV Compact module OUT1 Out7 AIN1 AOUT1 NTC6 GND6 NTC8 GND8 NTC9 GND9 Subject to change without notice | 83059000gUK – Translation of the original operating manual | ait-deutschland GmbH...

  • Page 47: Lwcv 82R1/3 Heat Pump Module

    LWCV 82R1/3 Heat pump module Circuit diagram 1/2 brown blue brown brown A white B yellow Subject to change without notice | 83059000gUK – Translation of the original operating manual | ait-deutschland GmbH...
  • Page 48 Circuit diagram 2/2 LWCV 82R1/3 Heat pump module white green brown PE-Steu /1.B8 white green yellow brown L-Steu /1.B8 N-Steu /1.B8 Orange Yellow Black Blue Orange Yellow Black Blue blue blue black black black black blue blue White Green Brown White Green Brown...

  • Page 49: Lwcv 122R3 Heat Pump Module

    LWCV 122R3 Heat pump module Circuit diagram 1/2 black black brown brown grey grey blue brown black grey A white B yellow Subject to change without notice | 83059000gUK – Translation of the original operating manual | ait-deutschland GmbH...
  • Page 50 Circuit diagram 2/2 LWCV 122R3 Heat pump module white green brown PE-Steu /1.B8 white green yellow brown L-Steu /1.B8 N-Steu /1.B8 Orange Yellow Black Blue Orange Yellow Black Blue blue blue black black black black blue blue White Green Brown White Green Brown...

  • Page 51: Ec Declaration Of Conformity

    EC Declaration of Conformity The undersigned confirms that the following designated device(s) as designed and marketed by us fulfill the standardized EC directives, the EC safety standards and the product-specific EC standards. In the event of modification of the device(s) without our approval, this declaration shall become invalid.
  • Page 52 GmbH Industriestraße 3 D-95359 Kasendorf E info@alpha-innotec.de W www.alpha-innotec.de alpha innotec – an ait-deutschland GmbH brand...
