PRODUCT ADVANTAGES

complete, optimised system (including wall duct)
highly sound-absorbant
light and, therefore, easy to transport
easily interlocking and, therefore, easy to
assemble
high-quality design

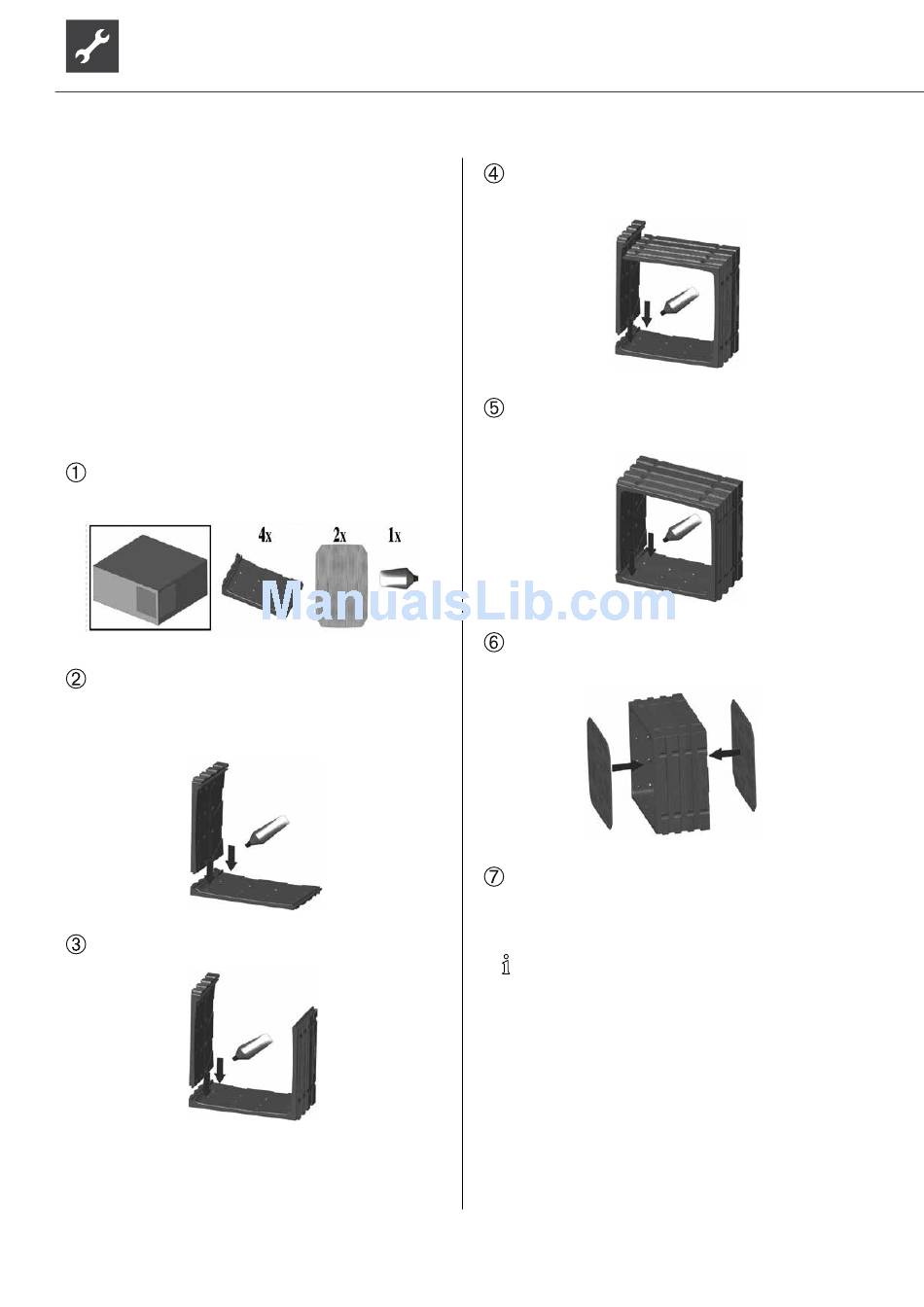

WALL DUCT(S) ASSEMBLY

Remove the parts necessary for the assembly of the
wall duct(s) from their respective boxes...
Next, interlock the 2 pieces of the wall duct(s)
that belong together, as illustrated in the following
drawing. Use the lubricant supplied upon delivery to
help in this process...
Affix an additional part as illustrated...
16
Subject to change without notice | 83050400fUK – Translation into English of the original German operating manual | ait-deutschland GmbH
Rotate the already-interlocked parts 90° and affix
the final piece at the bottom...
Rotate the already-interlocked parts by 90° once
again and set up the final connection...
Stabilise the wall duct from the inside using the
chipboard included with delivery...
Insert the wall duct into the masonry. This can be
done during the structural construction phase (by
means of sealing)...
NOTICE.
Mount the wall ducts 1 cm above the finished
outer facade.
