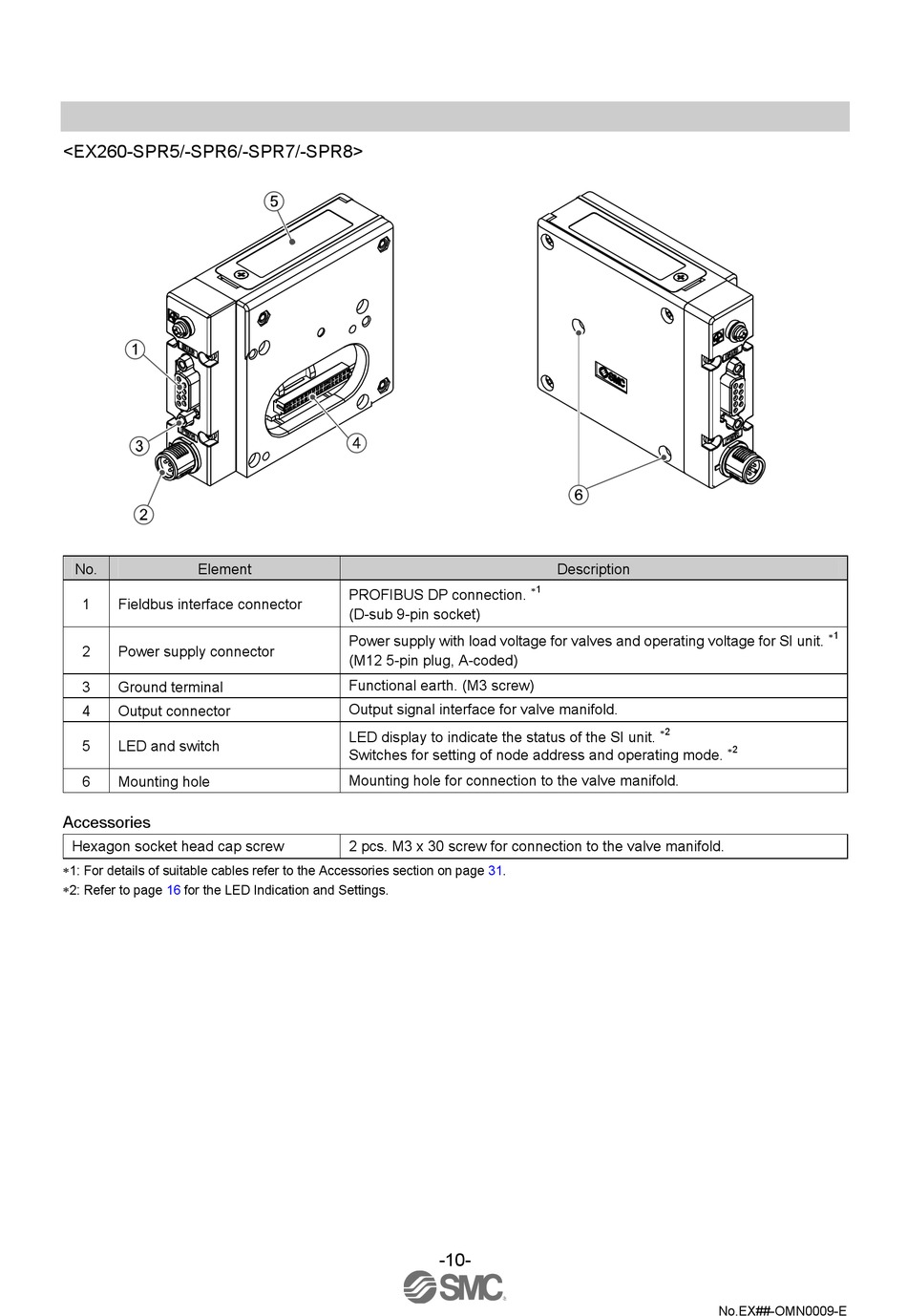

SMC Networks EX260 Series Operation Manual page 11

<EX260-SPR5/-SPR6/-SPR7/-SPR8>
No. Element
1 Fieldbus interface connector
2 Power supply connector
3 Ground terminal
4 Output connector
5 LED and switch
6 Mounting hole
Accessories
Hexagon socket head cap screw
1: For details of suitable cables refer to the Accessories section on page 31.
2: Refer to page
16 for the LED Indication and Settings.
PROFIBUS DP connection.
(D-sub 9-pin socket)
Power supply with load voltage for valves and operating voltage for SI unit.
(M12 5-pin plug, A-coded)
Functional earth. (M3 screw)
Output signal interface for valve manifold.
LED display to indicate the status of the SI unit.
Switches for setting of node address and operating mode.
Mounting hole for connection to the valve manifold.
2 pcs. M3 x 30 screw for connection to the valve manifold.
-10-
Description
 1
 2
 1
 2
No.EX##-OMN0009-E
