DS0 Testing

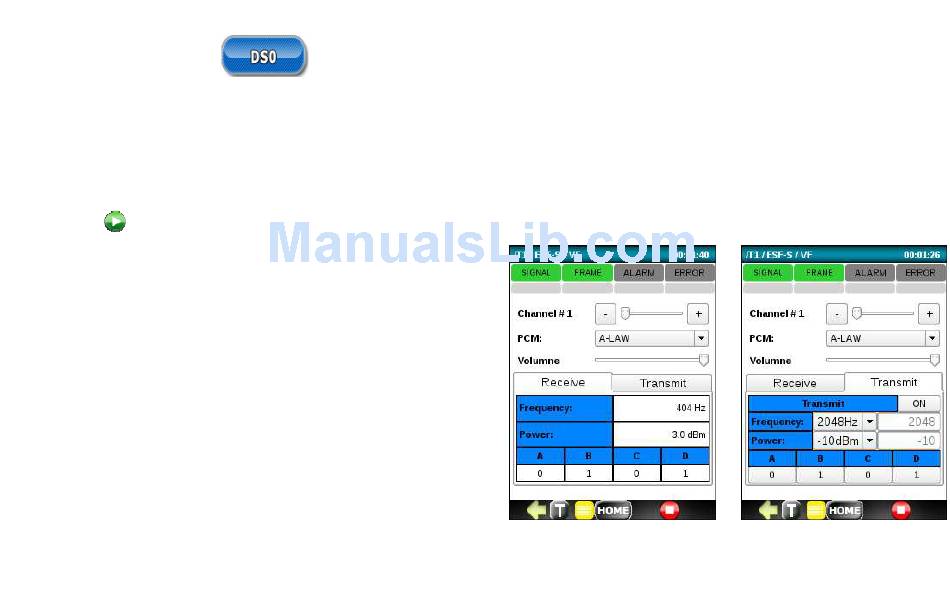

Run the DSO Testing application to measure the frequency and power of any received tones and monitor the ABCD bits
of a DSO sub channel. The application also allows you to listen to the audio in a timeslot using the supplied headset.
To run a DSO test, connect the T1 signal to be tested, select a timeslot number, select PCM Companding (u-Law/A-Law)
and press to start a DSO test.
DS0 testing includes:
•
Listening to any of the 24 DS0 Voice Channels using
the supplied headset.
•
Measuring the frequency of the received signal. Test
tones are typically 404Hz, 1004Hz, and 1804Hz.
•
Measuring the power (dBm) of the received test
tones. If the reading is not available, N/A will display.
•
Reading the ABCD bits for the selected timeslot.
•
Transmitting signal 300-3404Hz, -40.0-3.0dBm.
•
Configuring ABCD bits for the selected timeslot.
