13.5.3 Results

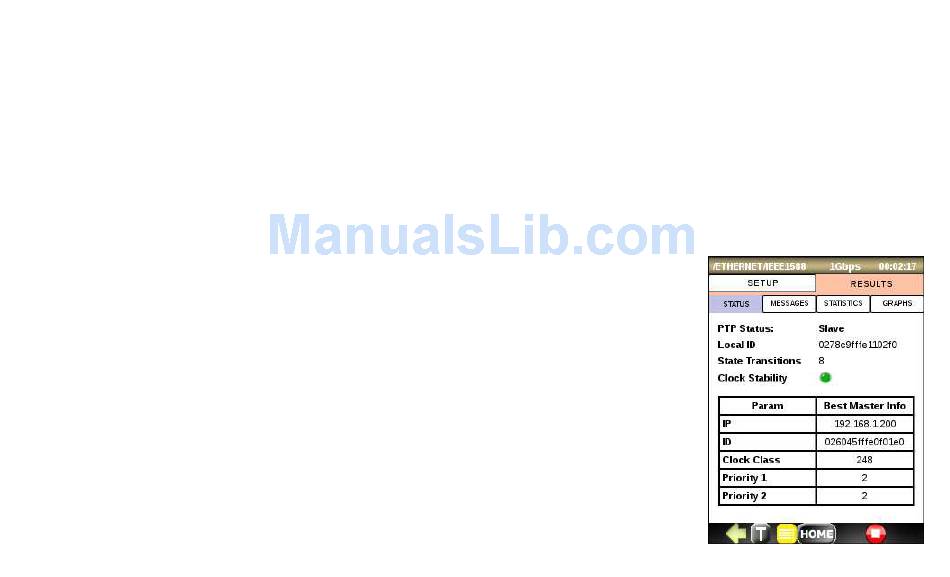

Status

The Status screen displays the local node status and best master clock information. It includes following
parameters:
•
PTP status: Informs about current node status. Node can have one of the following status: Initializing, Faulty,
Disabled, Listening, Master, Passive, Uncalibrated, Slave, Unknown.
•
Local ID: Local clock identity, it base on Ethernet port MAC address.
•
State Transactions: The number of PTP status changes.
•
Clock Stability: Indicates clock synchronization stability. If has green color, the
local clock is considered to be stable.
•
Best Master Info: The parameters of best master clock. If local device act as
master clock (PTP Status is Maser), it displays its own parameters.
