11.5.3 Live Traffic menu

To access this menu, press

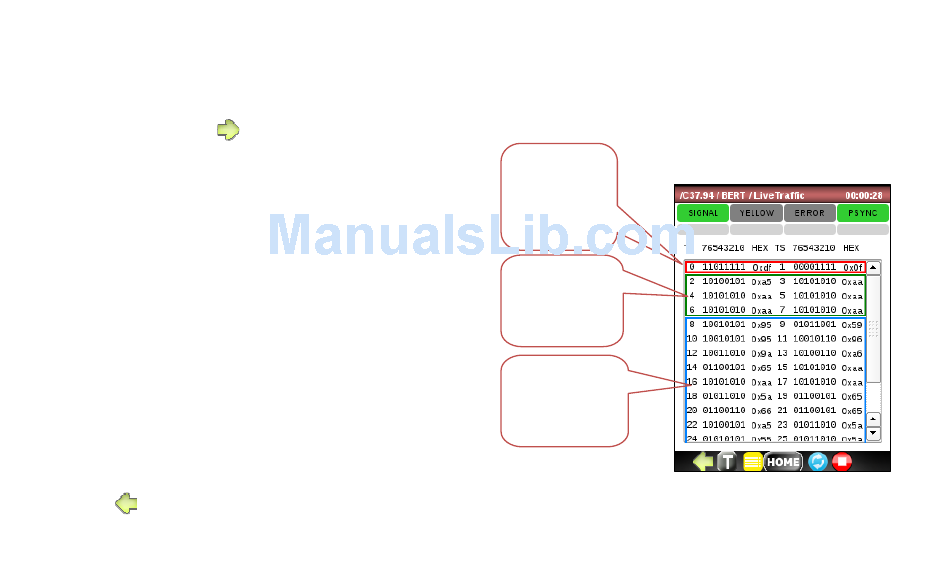

Use this menu to view the binary and hexadecimal
value in each timeslot(channel).
Each C37.94 frame has 32 bytes ( timeslots), numbered
on the Live Traffic screen from 0 to 31.
Bytes 0-1 is Header
Bytes 2-7 is Overhead
Bytes 8-31 is Channel Data. Channel Data can be 1-12
bytes long, eg. 1 byte corresponds to 64 kbps and 12 bytes
to 720kbps. Each data bit is followed by complement bit,
therefore at 12 bytes the total number of used bytes in the
frame is 24 ( 8-31 timeslots).
To exit, press .
from the Alarm menu.
Framing
2 bytes
Overhead6
bytes
User data
from 2 -24
bytes
152
