4.2

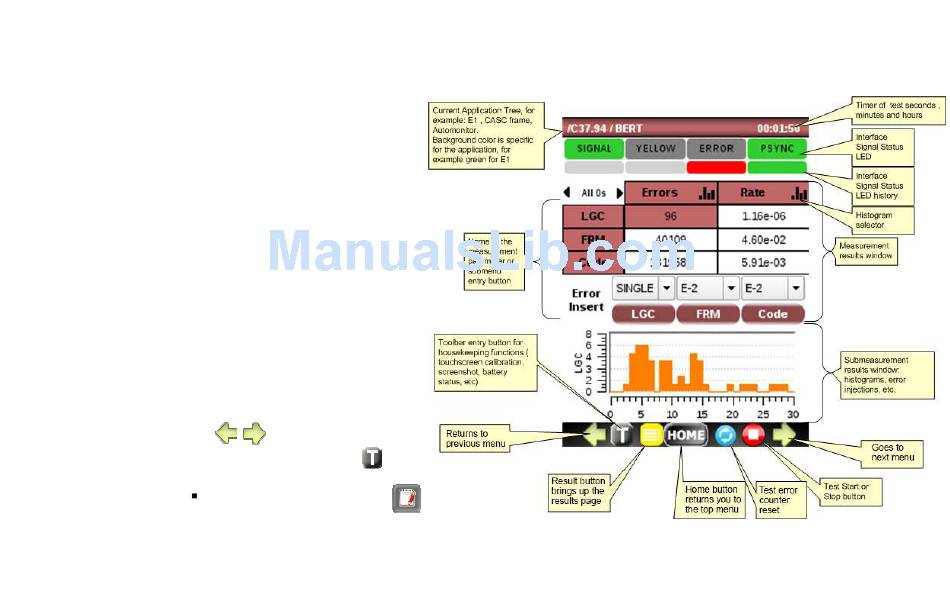

Graphical User Interface (GUI)

The LCD display is organized into sections:
•
Application tree that shows the current
test location in the application
•
Signal Status LED's
•
Signal Status history LED's
•
Measurement Results window that may
show the measurement results or a
summary status of the submenu
•
Sub measurement results window such as
histogram or error injection menu
•
Hot Buttons bar with:
o Go to arrows to previous or next
menu (
o Toolbar with housekeeping
functions listed below:
User Profiles and Config
Save/Export functions
)
