Messages statistics

There are two types of message in the PTP protocol: event messages and general messages. Event messages are
time-critical and an accurate timestamp is generated both at transmission and receipt of the message. Sync,
Delay_Req, Pdelay_Req, Pdelay_Resp are event messages. General messages do not require timestamps but may
contain timestamps for their associated event message.
Announce, Follow_Up, Delay_Resp,
PDelay_Resp_Follow_Up, Management, Signaling are general messages.

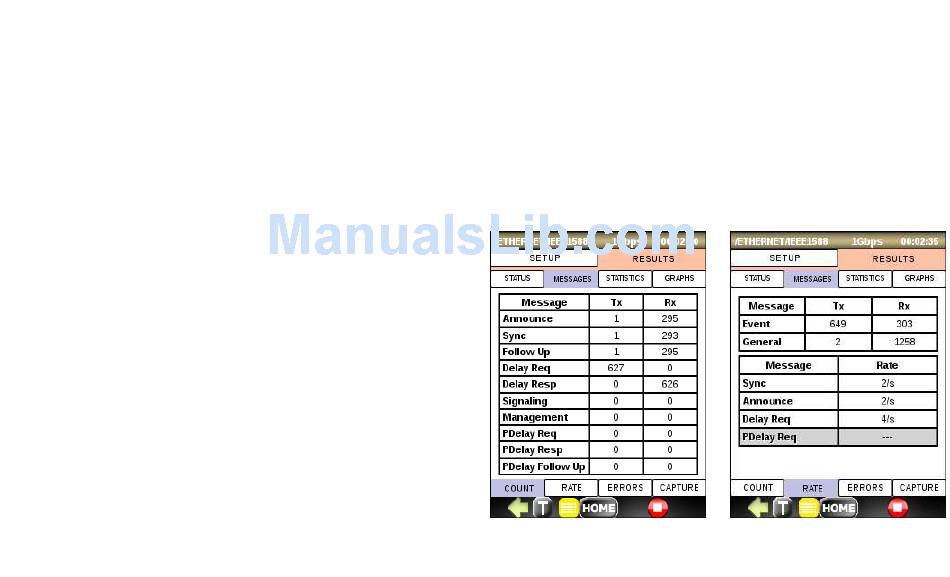

NetProbe2000 provides information for all transmitted
and received PTP messages in the current domain.
Rates of messages taking part in the synchronization
process are also reported.
251
