4.1.2 Test Interface Signal Panel

The Signal Panel is used for the PDH (T1, E1, T3, and E3) interface connectors. There are many possible configurations
available to accommodate these interfaces.

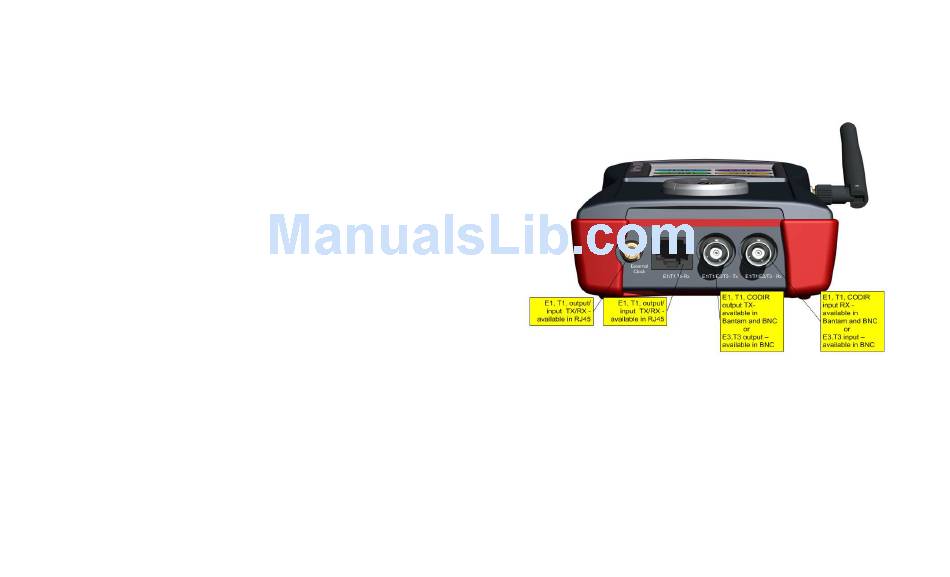

The NetProbe image below is configured with a RJ-45
connector for T1/E1 and COAX connectors for T3/E3.
Both RJ-45 (balanced 100/120 Ohm) and BNC (75 Ohm) or
Bantam ( unbalanced 100/120 Ohm) connectors carry
E1/T1 signal or when equipped, the G.703 64kbps Co-Dir.
Also, the E3 and T3 signals are available via the BNC
connectors.
The PDH interfaces along with their line impedance (75 Ohm, 100 Ohm, 120 Ohm) are all user-selectable.
