12.4.3 Running loopback

To run loopback function, follow the steps below:
•

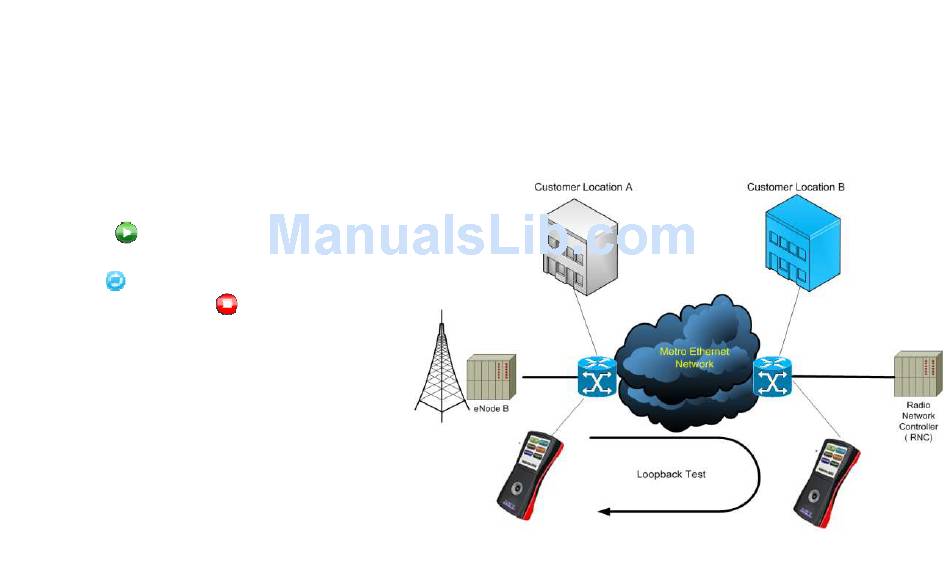

Make cable connection. Typical loop connection is shown below.
•
Depending on the traffic type that you want to loop back, configure suitable Loop Mode (Layer 1, Layer 2, Layer
3).
•
For Layer 2 and Layer 3 mode configure
inbound traffic filter.
•
Press to start looping the received
traffic.
•
Use to reset measurement counters.
•
To stop loop press .
