Riva RC3202HD-6111W Installation Manual

Hide thumbs Also See for RC3202HD-6111W:
Table of Contents

Advertisement

Quick Links

Download this manual

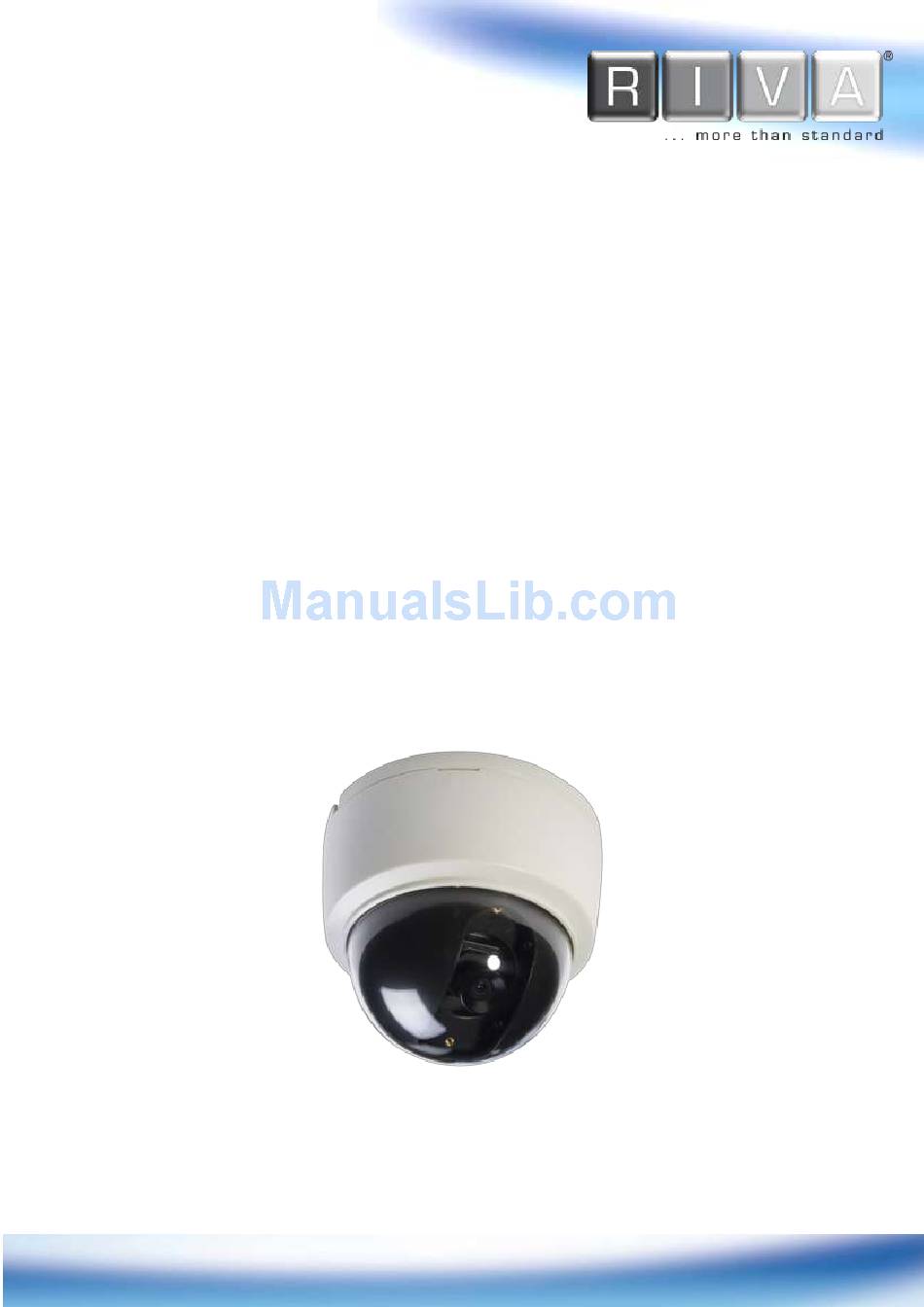

RC3202HD-6111(W)

Installation Guide

www.rivatech.de
Specification subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC3202HD-6111W and is the answer not in the manual?

Questions and answers

Related Manuals for Riva RC3202HD-6111W

Summary of Contents for Riva RC3202HD-6111W

  • Page 1: Installation Guide

    RC3202HD-6111(W) Installation Guide www.rivatech.de Specification subject to change without notice...

  • Page 2: Precaution

    Precaution  Please read this manual carefully before installing the unit.  Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit.  Please do not install the camera in a place exposed to direct sunlight. ...

  • Page 3: Table Of Contents

    HD Series RC3202HD-6111(W) Installation Guide Table of Contents Precaution .................. 2 1. FEATURES ................4 2. PACKAGE CONTENTS ..............6 3. PART NAMES ................7 4. INSTALLATION ................. 8 4.1. Installing the camera ..............8 4.2. Adjusting the angle of the camera ..........10 4.3.

  • Page 4: Features

    HD Series RC3202HD-6111(W) Installation Guide 1. FEATURES Camera  Full HD Compact Indoor Dome IP Camera  SONY EXMOR 1/2.9” 1080p CMOS Image Sensor  Digital Day / Night  Video  Video compression: H.264, MJPEG, 25/30FPS@1080p*  Dual streaming mode ...
  • Page 5 HD Series RC3202HD-6111(W) Installation Guide * If VCA is activated, frame rate is limit to max15fps@1080p. Limitation based on V.1.6.0 firmware release and could be changed without notice. 09-2013-A www.rivatech.de...

  • Page 6: Package Contents

    HD Series RC3202HD-6111(W) Installation Guide 2. PACKAGE CONTENTS Please unpack the package carefully and handle the equipment with care. The package contains: Camera DC Power Adaptor Universal Plugs Screws and anchor blocks Quick Installation Guide Camera Opener Ferrite Core Installation Template The contents above are subject to change without prior notice.

  • Page 7: Part Names

    HD Series RC3202HD-6111(W) Installation Guide 3. PART NAMES      * Models herein and their appearance are subject to change without any prior notice. 1 Reset button Use the button to restart the device or to reset it to Factory Default. Refer 6.3.

  • Page 8: Installation

    HD Series RC3202HD-6111(W) Installation Guide 4. INSTALLATION 4.1. Installing the camera Place the installation template (outline shown on the next page) included package desired installation surface. 2) Drill holes in correct positions based on the template paper, and insert anchor blocks into the holes. 3) Make sure the necessary cables including a LAN cable and a power cable are properly connected to the...

  • Page 9: Installation Template

    HD Series RC3202HD-6111(W) Installation Guide Installation Template lation template (Unit: mm) Installation template’s image size scale in this installation guide is not 1:1. Caution The correct-size template design paper can be found inside the package separately. 09-2013-A www.rivatech.de...

  • Page 10: Adjusting The Angle Of The Camera

    HD Series RC3202HD-6111(W) Installation Guide 4.2. Adjusting the angle of the camera A. To adjust lens position, B. To pan, rotate the lower C. To tilt, tilt the lens by rotate the camera gimbal. body of the camera gimbal. vertically adjusting the camera gimbal.

  • Page 11: Setting The Image Attribute

    Video Appearance menu in Setup > Video & Audio > Camera. The following features can be adjusted: Brightness, Contrast, Saturation, Sharpness and Orientation For more detailed information, refer to the provided “RIVA Web Interface Manual Full HD Line”. All Manual’s and Installation Guides can downloaded from www.rivatech.de...

  • Page 12: Adjusting Lens Focus

    HD Series RC3202HD-6111(W) Installation Guide 4.4. Adjusting lens focus 1) Remove the dome cover with the opener included in the package. 2) *Rotate the set ring counterclockwise will Opener allow users to adjust the focus of the lens. 3) Adjust the focus of the lens by rotating the lens.

  • Page 13: Connections

    HD Series RC3202HD-6111(W) Installation Guide 5. CONNECTIONS   In Com Out Com ④ ③ 09-2013-A www.rivatech.de...
  • Page 14 HD Series RC3202HD-6111(W) Installation Guide 1 Sensor (DI) connection Sensor (DI) can be connected to either a voltage type sensor or a relay type sensor like the following figures. Settings can be done through the camera's webpage. Input voltage range: 0VDC minimum to 5VDC maximum, Max 50mA Do not exceed the maximum input voltage or relay rate.

  • Page 15: Lan Connection

    HD Series RC3202HD-6111(W) Installation Guide 3 LAN Connection This is a RJ45 LAN connector for 10/100 Base-T Ethernet. Use the Ethernet cable (RJ45) to connect the device to a hub or a router in the network. Refer to Appendix (B). Power over Ethernet “...

  • Page 16: Configuration

    HD Series RC3202HD-6111(W) Installation Guide 6. CONFIGURATION 6.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation.

  • Page 17: Custom Ip Environment

    HD Series RC3202HD-6111(W) Installation Guide 6.1.2. Custom IP Environment IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. IPAdminTool and the manual can download from www.rivatech.de homepage.
  • Page 18 HD Series RC3202HD-6111(W) Installation Guide 09-2013-A www.rivatech.de...

  • Page 19: View Video On Web Page

    HD Series RC3202HD-6111(W) Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default username and password is root / pass. 6.2.1. ActiveX Installation 1. When the browser asks to install the AxUMF software, click Install to proceed.

  • Page 20: View Video Using Ipadmin Tool

    HD Series RC3202HD-6111(W) Installation Guide 6.2.2. View video using IPAdmin tool IPAdminTool and the manual can download from www.rivatech.de homepage. IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. 1.

  • Page 21: Reboot

    HD Series RC3202HD-6111(W) Installation Guide 6.3. Reboot Perform the following procedures to reset your device: 1. Press the Reset button, and hold for 2 seconds while the device is in use. 2. Wait for the system to reboot. Please do not hold for more than 2 seconds. Otherwise, the camera may be switched to its Factory Default settings.
  • Page 22 HD Series RC3202HD-6111(W) Installation Guide IMPORTANT: Your device will turn into the safe mode when it fails to boot three times. How to recover your system from Safe Mode Browse The message above in the screenshot will appear when your device has been rebooted at ‘safe mode’.
  • Page 23 HD Series RC3202HD-6111(W) Installation Guide To learn more about using other features of your devices, refer to the manuals as “RIVA Web Interface Manual Full HD Series” or “VCAsys Manual Full HD Series”, which is available on www.rivatech.de homepage. 09-2013-A...

  • Page 24: Appendix (A): Specifications

    Min. Color: 1.0 lux, BW: 0.001 lux (DSS ON) Illumination AGC Control Auto RC3202HD-6111: 4.0mm F2.0 Lens RC3202HD-6111W: 2.97mm F2.0 Day & Night Digital Day & Night Wide Dynamic Range Video Compression Format H.264 and MJPEG Selectable per Stream Number of Streams...
  • Page 25 HD Series RC3202HD-6111(W) Installation Guide (Recommend Class 6 and higher for HD recordings) * If VCA is activated, frame rate is limit to max15fps@1080p. Limitation based on V.1.6.0 firmware release and could be changed without notice. 09-2013-A www.rivatech.de...

  • Page 26: Electrical Characteristics

    HD Series RC3202HD-6111(W) Installation Guide Electrical Characteristics Power Source DC 12V / PoE Power Consumption 2.64W @ DC 12V Video Output Audio Input Audio Output Max 50mA@5VDC, TTL level, VIL=0.8V(max), VIH=2.0V(min) Max 50mA@24VDC On-state resistance: 50 Ω (max continuous) Environment Condition Operating Range Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)

  • Page 27: Appendix (B): Power Over Ethernet

    HD Series RC3202HD-6111(W) Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power- over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. The IEEE 802.3af-2003 standard allows up to 15.4 W power to device.
  • Page 28 HD Series RC3202HD-6111(W) Installation Guide Disconnecting PSE or PoE does not reboot the device as long as a power adaptor is connected. Note 09-2013-A www.rivatech.de...

  • Page 29: Appendix (C): Dimensions

    HD Series RC3202HD-6111(W) Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) 09-2013-A www.rivatech.de...

  • Page 30: Appendix (D): Hexadecimal-Decimal Conversion Table

    HD Series RC3202HD-6111(W) Installation Guide APPENDIX (D): HEXADECIMAL- DECIMAL CONVERSION TABLE Refer to the following table when converting the MAC address of the device to the IP address. Hex Dec 09-2013-A www.rivatech.de...
  • Page 31 HD Series RC3202HD-6111(W) Installation Guide 09-2013-A www.rivatech.de...

  • Page 32: Revision History

    HD Series RC3202HD-6111(W) Installation Guide REVISION HISTORY MAN# DATE(M/D/Y Comments 01A.03 07/05/201 First release version 09-2013- 09/04/201 Minor updates 09-2013-A www.rivatech.de...
